Name: Coolant cooling system For vehicles with hybrid drive Engine bay Engine bay
Rating: 4.5 (1 reviews)

Diagram
INFO

Coolant cooling system For vehicles with hybrid drive Engine bay Engine bay of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - Coolant cooling system For vehicles with hybrid drive Engine bay Engine bay

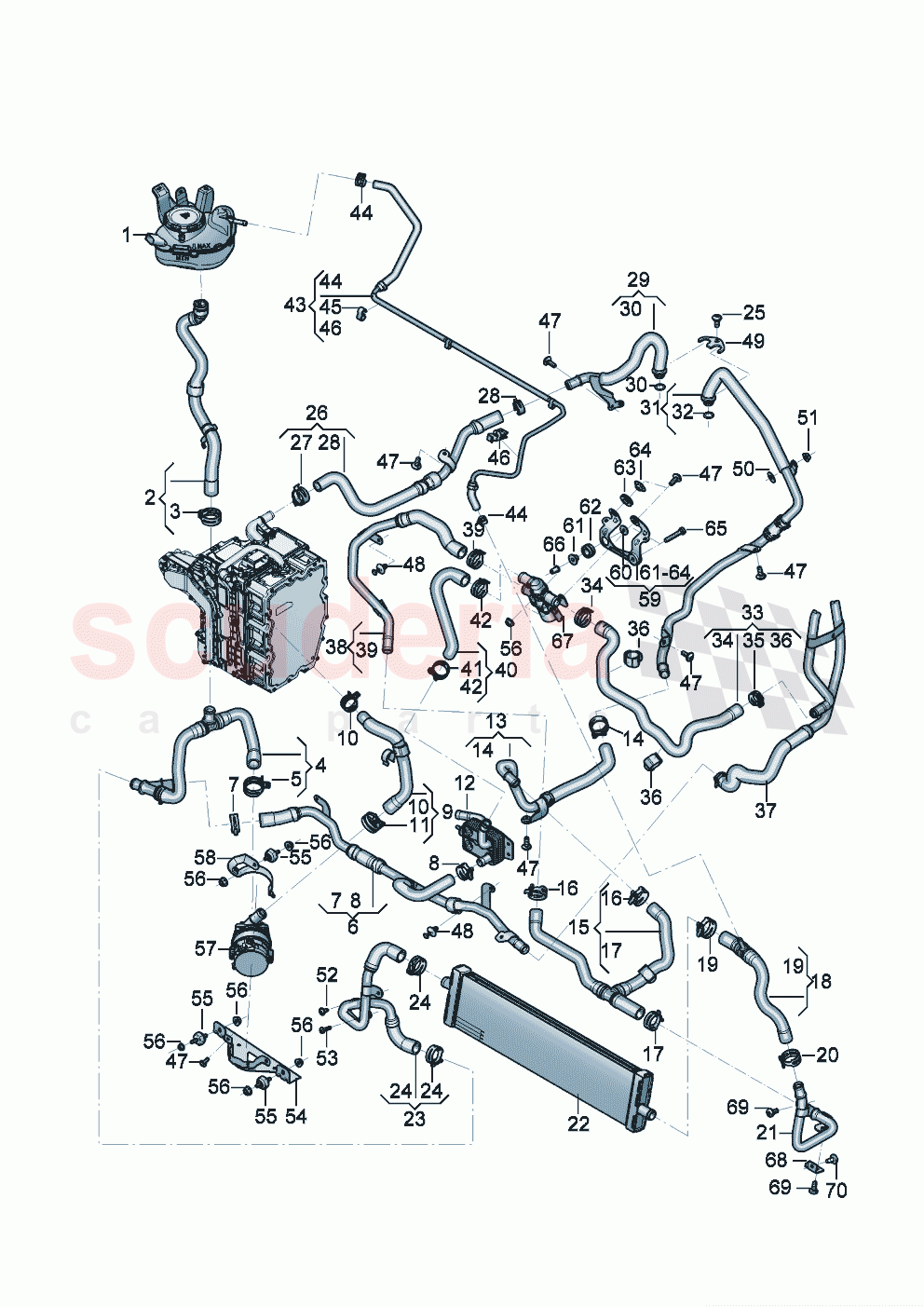

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SA121501	Coolant hose D >> - 10.10.2022	$128.08	To Order
	3SA121501A	Coolant hose	$128.08	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971820596B	Coolant hose	$84.79	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971815660	Coolant pipe	$502.58	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951268309	Hose clamp	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	971820595B	Coolant hose	$69.19	To Order

Photo	Part No	Description	Price (each)	Stock
	99951260109	Hose clamp	$2.13	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE121051	Coolant hose	$122.20	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0 422 379 A	Spring band clamp	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	971815112	Coolant hose	$114.64	To Order

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA820589	Coolant hose	$50.78	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA820507	Coolant pipe	$73.61	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA820556B	Coolant pipe with coolant hose	$165.65	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10714801	Oval hexagon socket head bolt	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	971 121 034 R	Coolant pipe with coolant hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	$7.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	971 121 034 Q	Coolant pipe with coolant hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90981601	O-ring	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE121034	Coolant pipe	$176.67	To Order

Photo	Part No	Description	Price (each)	Stock
	N90981601	O-ring	$2.65	To Order

Photo	Part No	Description	Price (each)	Stock
	971815096	Coolant hose	$89.51	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	99951265609	Hose clamp	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	Clip	$4.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971815601	Coolant pipe	$160.97	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971815091	Coolant hose	$70.66	To Order

Photo	Part No	Description	Price (each)	Stock
	99951268309	Hose clamp	$3.34	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT 007 714	Spring band clamp	$10.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SA122448B	Coolant hose use only in conjunction with: F >> 3S-R-017 516 F >> ZG-R-017 516	$97.16	To Order
	3SA122448D	Coolant hose with quick release coupling use only in conjunction with: F 3S-R-017 517>> F ZG-R-017 517>>	$183.54	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	$1.27	IN STOCK
	N90686701	Spring band clamp	$1.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10588701	Spacer holder	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10632003	Oval socket head bolt with hex drive	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N91158501	Spreader rivet	$4.10	To Order

Photo	Part No	Description	Price (each)	Stock
	971 121 214	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91280101	Washer	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N02300213	hexagon nut, self-locking	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N 908 170 03	Hexagon socket head panel bolt	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 101 243 09	Oval hexagon socket head bolt only for position:	$0.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971965558A	Bracket for Additional coolant pump	$44.90	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0819083	Bonded rubber bush	$19.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	80A965567	Coolant pump	$784.32	To Order

Photo	Part No	Description	Price (each)	Stock
	971965541A	Bracket for Additional coolant pump	$29.00	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA 815 947 A	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0121277A	Distance piece	$4.07	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0129381B	bush	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0129669F	Rubber bush	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0422095	Grommet	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0422121	bush	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	N0102217	Hexagon bolt	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	N90631303	rivetted cap nut	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0906457C	control valve	$192.38	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA 820 773	Bracket for coolant pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91096701	Oval hexagon socket head bolt	$0.98	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	2	3SA121501	Coolant hose D >> - 10.10.2022	3SA121501 Coolant hose D >> - 10.10.2022	$128.08	1	TO
	2	3SA121501A	Coolant hose	3SA121501A Coolant hose	$128.08	1	TO
	WHT 007 714		SPRING BAND CLAMP	from $10.35
3 Spring band clamp IN STOCK $10.35 1 IN 5 Spring band clamp IN STOCK $10.35 1 IN 7 Spring band clamp IN STOCK $10.35 1 IN 11 Spring band clamp IN STOCK $10.35 1 IN 17 Spring band clamp IN STOCK $10.35 1 IN 19 Spring band clamp IN STOCK $10.35 1 IN 24 Spring band clamp IN STOCK $10.35 2 IN 34 Spring band clamp IN STOCK $10.35 1 IN 39 Spring band clamp IN STOCK $10.35 1 IN 42 Spring band clamp IN STOCK $10.35 1 IN
	4	971820596B	Coolant hose	971820596B Coolant hose	$84.79	1	TO
	6	971815660	Coolant pipe	971815660 Coolant pipe	$502.58	1	TO
	99951268309		HOSE CLAMP	from $3.34
8 Hose clamp $3.34 1 TO 41 Hose clamp $3.34 1 TO
	9	971820595B	Coolant hose	971820595B Coolant hose	$69.19	1	TO
	10	99951260109	Hose clamp	99951260109 Hose clamp A23X12	$2.13	1	TO
	13	3SE121051	Coolant hose	3SE121051 Coolant hose	$122.20	1	TO
	14	4B0 422 379 A	Spring band clamp	4B0 422 379 A Spring band clamp 25X12	$3.04	1	TO
	15	971815112	Coolant hose	971815112 Coolant hose	$114.64	1	TO
	99951265609		HOSE CLAMP	from $4.10
16 Hose clamp $4.10 2 TO 20 Hose clamp $4.10 1 TO 28 Hose clamp $4.10 1 TO 35 Hose clamp $4.10 1 TO
	18	3SA820589	Coolant hose	3SA820589 Coolant hose	$50.78	1	TO
	21	3SA820507	Coolant pipe	3SA820507 Coolant pipe	$73.61	1	TO
	23	3SA820556B	Coolant pipe with coolant hose	3SA820556B Coolant pipe with coolant hose	$165.65	1	TO
	25	N10714801	Oval hexagon socket head bolt	N10714801 Oval hexagon socket head bolt M6X16	$0.98	1	TO
	26	971 121 034 R	Coolant pipe with coolant hose	971 121 034 R Coolant pipe with coolant hose	-	1	PE	Enquire
	27	N90686901	Spring band clamp IN STOCK	N90686901 Spring band clamp 23X12 IN STOCK	$7.40	1	IN
	29	971 121 034 Q	Coolant pipe with coolant hose	971 121 034 Q Coolant pipe with coolant hose	-	1	PE	Enquire
	N90981601		O-RING	from $2.65
30 O-ring $2.65 1 TO 32 O-ring $2.65 1 TO
	31	3SE121034	Coolant pipe	3SE121034 Coolant pipe	$176.67	1	TO
	33	971815096	Coolant hose	971815096 Coolant hose	$89.51	1	TO
	36	1C0422705A	Clip IN STOCK	1C0422705A Clip 23MM IN STOCK	$4.21	2	IN
	38	971815601	Coolant pipe	971815601 Coolant pipe	$160.97	1	TO
	40	971815091	Coolant hose	971815091 Coolant hose	$70.66	1	TO
	43	3SA122448B	Coolant hose use only in conjunction with: F >> 3S-R-017 516 F >> ZG-R-017 516	3SA122448B Coolant hose use only in conjunction with: F >> 3S-R-017 516 F >> ZG-R-017 516 3SA 121 407	$97.16	1	TO
	43	3SA122448D	Coolant hose with quick release coupling use only in conjunction with: F 3S-R-017 517>> F ZG-R-017 517>>	3SA122448D Coolant hose with quick release coupling use only in conjunction with: F 3S-R-017 517>> F ZG-R-017 517>> 3SA 121 407 A 3SA 121 407 B	$183.54	1	TO
	N90686701		SPRING BAND CLAMP	from $1.27
44 Spring band clamp IN STOCK $1.27 2 IN 44 Spring band clamp IN STOCK $1.27 1 IN
	45	N10588701	Spacer holder IN STOCK	N10588701 Spacer holder IN STOCK	$1.16	3	IN
	47	N10632003	Oval socket head bolt with hex drive	N10632003 Oval socket head bolt with hex drive M6X16	$0.88	8	TO
	48	N91158501	Spreader rivet	N91158501 Spreader rivet	$4.10	2	TO
	49	971 121 214	Bracket	971 121 214 Bracket	-	1	PE	Enquire
	50	N91280101	Washer	N91280101 Washer 6,4X18X1,2	$3.40	1	TO
	51	N02300213	hexagon nut, self-locking	N02300213 hexagon nut, self-locking M6	$1.47	1	TO
	52	N 908 170 03	Hexagon socket head panel bolt IN STOCK	N 908 170 03 Hexagon socket head panel bolt 6X17 IN STOCK	$0.68	1	IN
	53	N 101 243 09	Oval hexagon socket head bolt only for position: IN STOCK	N 101 243 09 Oval hexagon socket head bolt only for position: M6X20 IN STOCK	$0.98	1	IN
	54	971965558A	Bracket for Additional coolant pump	971965558A Bracket for Additional coolant pump lower	$44.90	1	TO
	55	7L0819083	Bonded rubber bush	7L0819083 Bonded rubber bush	$19.51	3	TO
	56	N90215805	shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6 IN STOCK	$2.36	8	IN
	57	80A965567	Coolant pump	80A965567 Coolant pump	$784.32	1	TO
	58	971965541A	Bracket for Additional coolant pump	971965541A Bracket for Additional coolant pump upper	$29.00	1	TO
	59	3SA 815 947 A	Bracket	3SA 815 947 A Bracket	-	1	PE	Enquire
	60	4G0121277A	Distance piece	4G0121277A Distance piece	$4.07	2	TO
	61	4G0129381B	bush	4G0129381B bush	$2.81	2	TO
	62	4G0129669F	Rubber bush	4G0129669F Rubber bush	$5.58	2	TO
	63	3D0422095	Grommet	3D0422095 Grommet	$1.39	2	TO
	64	3D0422121	bush	3D0422121 bush	$5.32	2	TO
	65	N0102217	Hexagon bolt	N0102217 Hexagon bolt M6X35	$1.07	2	TO
	66	N90631303	rivetted cap nut	N90631303 rivetted cap nut M6X0,5-3	$1.27	2	TO
	67	5Q0906457C	control valve	5Q0906457C control valve	$192.38	1	TO
	68	3SA 820 773	Bracket for coolant pipe	3SA 820 773 Bracket for coolant pipe	-	1	PE	Enquire
	69	N91096701	Oval hexagon socket head bolt IN STOCK	N91096701 Oval hexagon socket head bolt M6X16 IN STOCK	$0.98	2	IN
