Name: Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor
Rating: 5.0 (1 reviews)

Diagram
INFO

Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor

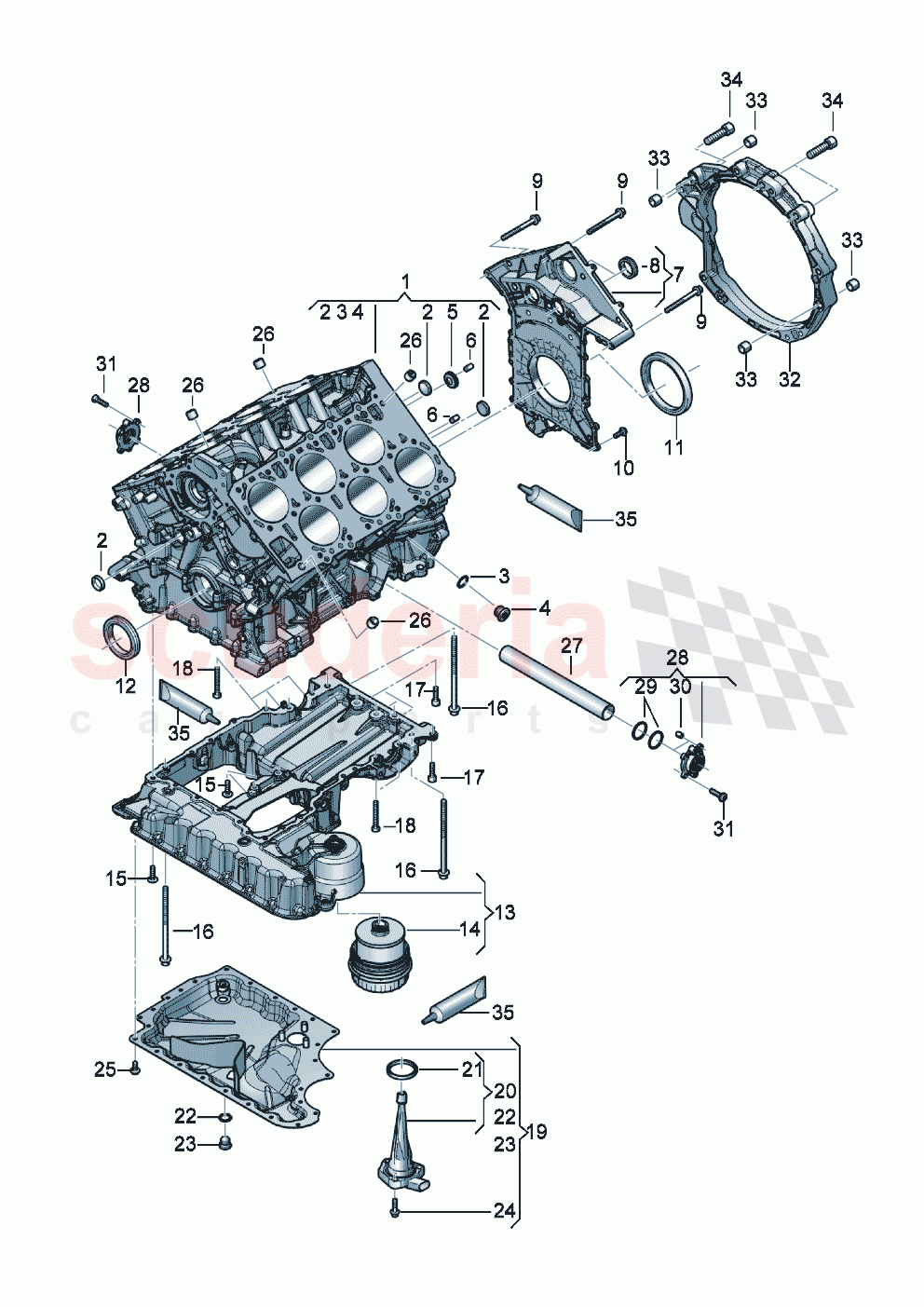

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N0119149	End cap	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138321	seal ring	$2.56	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 965 01	sealing plug	$6.67	To Order

Photo	Part No	Description	Price (each)	Stock
	07C103381D	sealing plug	$12.99	To Order

Photo	Part No	Description	Price (each)	Stock
	N0131911	Cylinder pin	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	07P103171H	Sealing flange also use: D - 21.05.2018>>	$636.08	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 109 091 C	Seal	$37.64	To Order

Photo	Part No	Description	Price (each)	Stock
	N 911 651 01	Hexagon socket flat head bolt	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 911 687 01	Hexalobular flange screw	$2.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	021103051C	shaft oil seal	$79.10	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 103 085 A	Shaft oil seal	$137.18	To Order

Photo	Part No	Description	Price (each)	Stock
	07P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	$625.78	To Order

Photo	Part No	Description	Price (each)	Stock
	N 106 444 04	Hexagon socket flat head bolt	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	N10627901	Socket head bolt with inner multipoint head (Kombi)	$5.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 910 215 02	round hd. screw	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562603	round hd. screw	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	07P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	$734.24	To Order

Photo	Part No	Description	Price (each)	Stock
	07P 907 660	oil level sensor	$153.12	To Order

Photo	Part No	Description	Price (each)	Stock
	038 103 196 B	seal ring	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	N 013 815 7	seal ring use only in conjunction with: D - 07.12.2018>>	$2.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 911 679 01	sealing plug	$5.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 911 804 01	Hexalobular flange screw to be used for item:	$2.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 911 261 02	Hexagon socket flat head bolt	$1.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90502601	dowel sleeve	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	06M103689D	Tube	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	07P103191A	Cover with seal also use:	$85.09	To Order

Photo	Part No	Description	Price (each)	Stock
	N 907 132 03	O-ring	$3.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N 910 208 01	dowel sleeve	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N 107 002 01	Hexagon socket head bolt	$1.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	07P103551A	Intermediate plate	$176.67	To Order

Photo	Part No	Description	Price (each)	Stock
	022 103 139 B	dowel sleeve	$5.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10624601	Socket head bolt with inner multipoint head	$25.90	To Order

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	$26.02	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
2	N0119149	End cap	N0119149 End cap D=24MM	$1.51	5	TO
3	N0138321	seal ring	N0138321 seal ring 18X22 ALU	$2.56	1	TO
4	N 911 965 01	sealing plug	N 911 965 01 sealing plug M18X1,5	$6.67	1	TO
5	07C103381D	sealing plug	07C103381D sealing plug	$12.99	1	TO
6	N0131911	Cylinder pin	N0131911 Cylinder pin 8X14,5	$0.80	2	TO
7	07P103171H	Sealing flange also use: D - 21.05.2018>>	07P103171H Sealing flange also use: D - 21.05.2018>> lower rear D 176 501 A1	$636.08	11	TO
8	07P 109 091 C	Seal	07P 109 091 C Seal	$37.64	2	TO
9	N 911 651 01	Hexagon socket flat head bolt IN STOCK	N 911 651 01 Hexagon socket flat head bolt M6X70 IN STOCK	$2.16	3	IN
10	N 911 687 01	Hexalobular flange screw IN STOCK	N 911 687 01 Hexalobular flange screw M6X18 IN STOCK	$2.06	19	IN
11	021103051C	shaft oil seal	021103051C shaft oil seal rear	$79.10	1	TO
12	07P 103 085 A	Shaft oil seal	07P 103 085 A Shaft oil seal 58X70X7	$137.18	1	TO
13	07P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	07P103803AE Engine oil sump upper part also use: D - 26.03.2018>> D 176 501 A1	$625.78	11	TO
15	N 106 444 04	Hexagon socket flat head bolt	N 106 444 04 Hexagon socket flat head bolt M6X22	$1.18	18	TO
16	N10627901	Socket head bolt with inner multipoint head (Kombi) IN STOCK	N10627901 Socket head bolt with inner multipoint head (Kombi) M8X138,4 IN STOCK	$5.79	3	IN
17	N 910 215 02	round hd. screw	N 910 215 02 round hd. screw M8X25	$1.57	5	TO
18	N10562603	round hd. screw	N10562603 round hd. screw M6X60	$1.38	5	TO
19	07P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	07P103800J Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>> D 176 501 A1	$734.24	1	TO
20	07P 907 660	oil level sensor	07P 907 660 oil level sensor	$153.12	1	TO
21	038 103 196 B	seal ring	038 103 196 B seal ring	$9.56	1	TO
22	N 013 815 7	seal ring use only in conjunction with: D - 07.12.2018>> IN STOCK	N 013 815 7 seal ring use only in conjunction with: D - 07.12.2018>> 14X20X2 IN STOCK	$2.56	1	IN
23	N 911 679 01	sealing plug IN STOCK	N 911 679 01 sealing plug M14X1,5 IN STOCK	$5.01	1	IN
24	N 911 804 01	Hexalobular flange screw to be used for item: IN STOCK	N 911 804 01 Hexalobular flange screw to be used for item: M6X22 IN STOCK	$2.06	3	IN
25	N 911 261 02	Hexagon socket flat head bolt IN STOCK	N 911 261 02 Hexagon socket flat head bolt M6X14 IN STOCK	$1.18	26	IN
26	N90502601	dowel sleeve	N90502601 dowel sleeve 14X12	$1.27	4	TO
27	06M103689D	Tube	06M103689D Tube	$28.55	1	TO
28	07P103191A	Cover with seal also use:	07P103191A Cover with seal also use: D 176 501 A1	$85.09	2	TO
29	N 907 132 03	O-ring IN STOCK	N 907 132 03 O-ring 31X3 IN STOCK	$3.24	4	IN
30	N 910 208 01	dowel sleeve	N 910 208 01 dowel sleeve	$0.92	4	TO
31	N 107 002 01	Hexagon socket head bolt IN STOCK	N 107 002 01 Hexagon socket head bolt M6X22 IN STOCK	$1.77	8	IN
32	07P103551A	Intermediate plate	07P103551A Intermediate plate	$176.67	1	TO
33	022 103 139 B	dowel sleeve IN STOCK	022 103 139 B dowel sleeve 16X13,5 IN STOCK	$5.01	4	IN
34	N10624601	Socket head bolt with inner multipoint head	N10624601 Socket head bolt with inner multipoint head M12X45	$25.90	3	TO
35	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	$26.02	-	TO
