Name: water drain hose, Glass sunroof, D - MJ 2017>>
Rating: 4.5 (1 reviews)

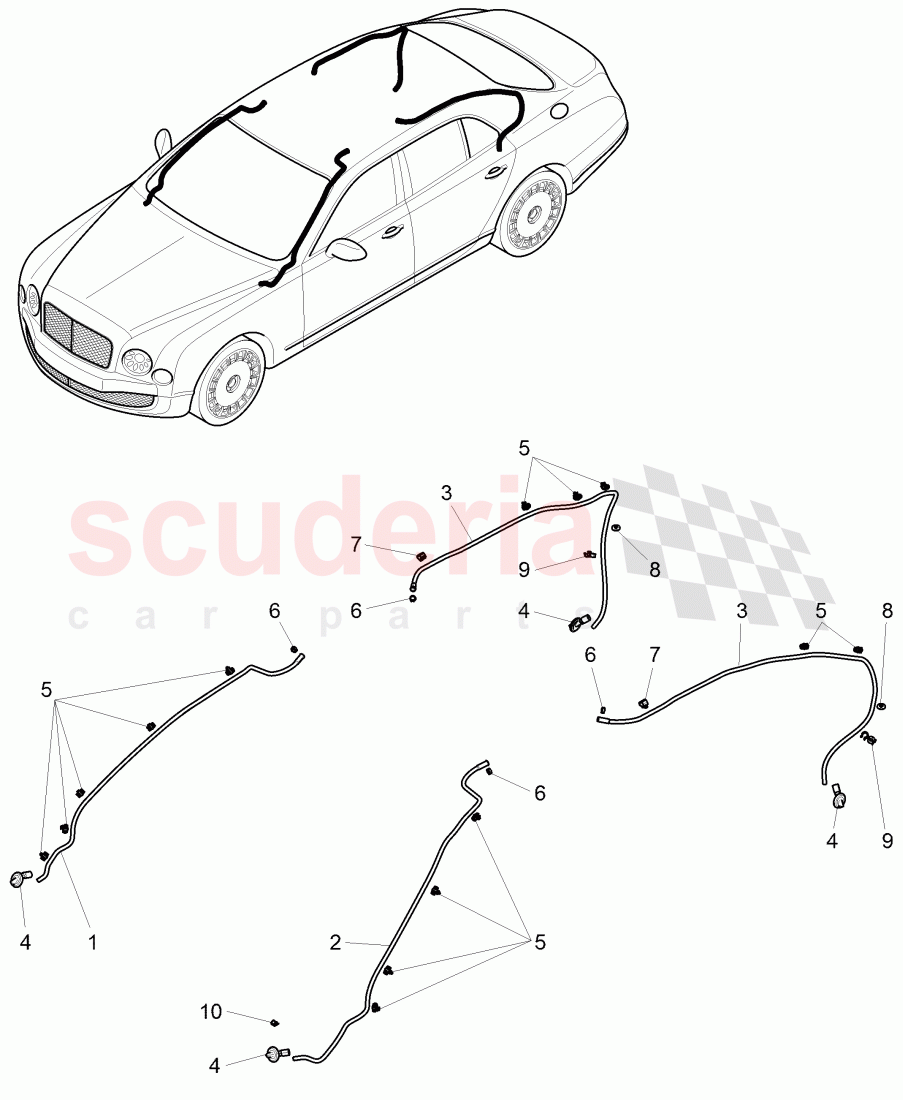

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5 877 848	hose clip	$6.46	To Order

Photo	Part No	Description	Price (each)	Stock
	N10667201	clip	$2.81	To Order

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	3Y5 877 221 D	drain hose, D - 11.07.2016>>	3Y5 877 221 D drain hose, D - 11.07.2016>> left front, PR-K8B	$25.58	1	TO
	1	3Y4 877 221 B	drain hose	3Y4 877 221 B drain hose left front, PR-K8L	$25.69	1	TO
	2	3Y5 877 222 D	drain hose, D - 11.07.2016>>	3Y5 877 222 D drain hose, D - 11.07.2016>> right front, PR-K8B	$25.58	1	TO
	2	3Y4 877 222 B	drain hose	3Y4 877 222 B drain hose right front, PR-K8L	$25.69	1	TO
	3	3Y5 877 233 B	drain hose	3Y5 877 233 B drain hose rear, PR-K8B	$30.47	1	TO
	3	3Y4 877 233 A	drain hose	3Y4 877 233 A drain hose rear, PR-K8L	$25.58	1	TO
	4	3D0 877 236	plug	3D0 877 236 plug PR-K8B	$9.42	4	TO
	4	N10539401	bungs	N10539401 bungs PR-3FA	$0.88	4	TO
	5G0 877 244		HOSE BRACKET	from $1.07
5 Hose bracket $1.07 16 TO 5 Hose bracket $1.07 24 TO
	6	3Y5 877 848	hose clip	3Y5 877 848 hose clip	$6.46	4	TO
	8	111 911 911	grommet	111 911 911 grommet	$1.45	2	TO
	8	N10226701	Bungs	N10226701 Bungs PR-3FA	$0.68	6	TO
	9	N10667201	clip	N10667201 clip 18XC01-16,	$2.81	2	TO

Water Drain Hose, Glass Sunroof, D - Mj 2017>>

Bentley Mulsanne (2010+)
