Name: water drain hose, Glass sunroof, D >> - MJ 2016
Rating: 5.0 (1 reviews)

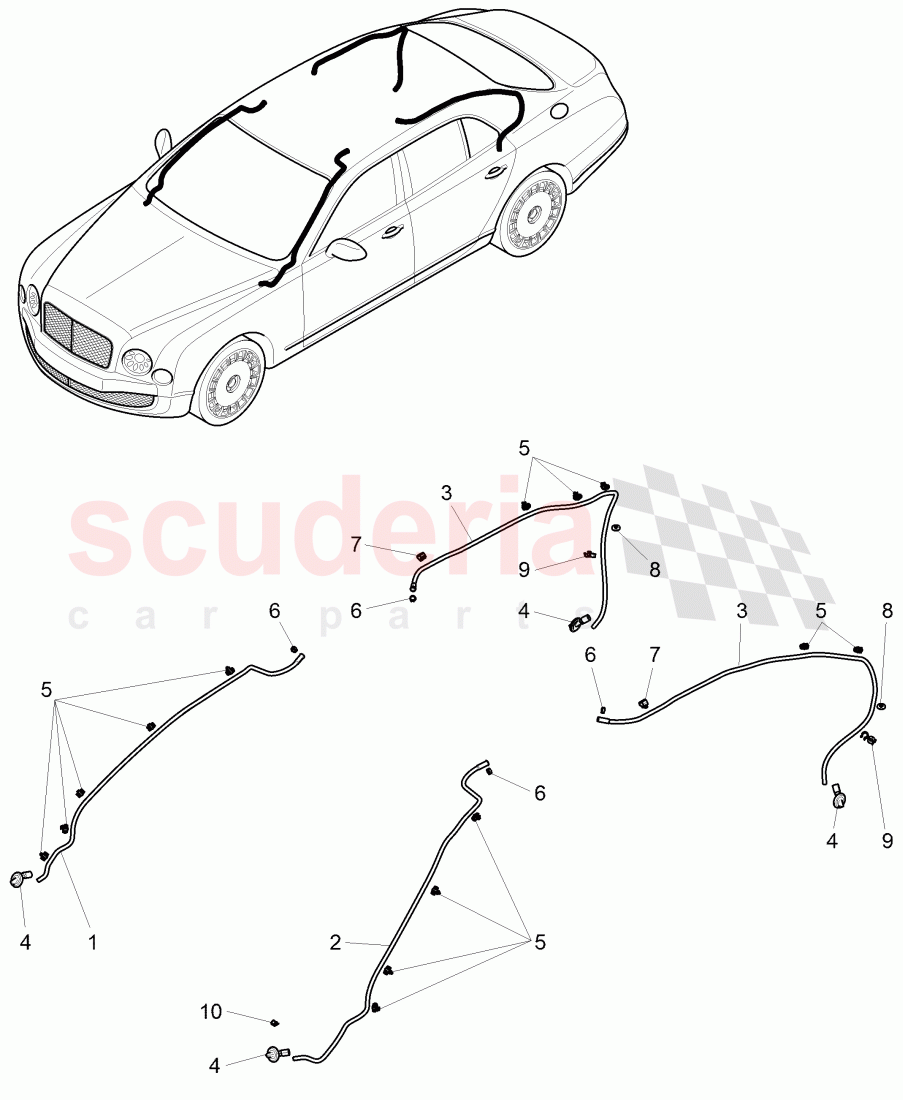

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y5 877 222 A	drain hose	$32.24	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5 877 221 A	drain hose	$32.24	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5 877 233 A	drain hose	$29.73	To Order

Photo	Part No	Description	Price (each)	Stock
	443971847B	clip	$5.48	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y5 877 848	hose clip	$6.46	To Order

Photo	Part No	Description	Price (each)	Stock
	N90683801	bracket for corrugated pipe	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N10667201	clip	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	1T0 877 244	clip	$0.74	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	3Y5 877 222 A	drain hose	3Y5 877 222 A drain hose right front,	$32.24	1	TO
2	3Y5 877 221 A	drain hose	3Y5 877 221 A drain hose left front,	$32.24	1	TO
3	3Y5 877 233 A	drain hose	3Y5 877 233 A drain hose rear,	$29.73	1	TO
4	3D0 877 236	plug	3D0 877 236 plug PR-3FC	$9.42	4	TO
4	N10539401	bungs	N10539401 bungs PR-3FA	$0.88	4	TO
5	443971847B	clip	443971847B clip	$5.48	1	TO
6	3Y5 877 848	hose clip	3Y5 877 848 hose clip	$6.46	4	TO
7	N90683801	bracket for corrugated pipe	N90683801 bracket for corrugated pipe	$1.47	2	TO
8	111 911 911	grommet	111 911 911 grommet	$1.45	2	TO
8	N10226701	Bungs	N10226701 Bungs PR-3FA	$0.68	2	TO
9	N10667201	clip	N10667201 clip	$2.81	2	TO
10	1T0 877 244	clip	1T0 877 244 clip	$0.74	2	TO

Water Drain Hose, Glass Sunroof, D >> - Mj 2016

Bentley Mulsanne (2010+)
