Name: floor assembly, D >> - MJ 2016
Rating: 4.9 (1 reviews)

Diagram
INFO

floor assembly, D >> - MJ 2016 of Bentley Bentley Mulsanne (2010+)

Bentley Mulsanne (2010+) - floor assembly, D >> - MJ 2016

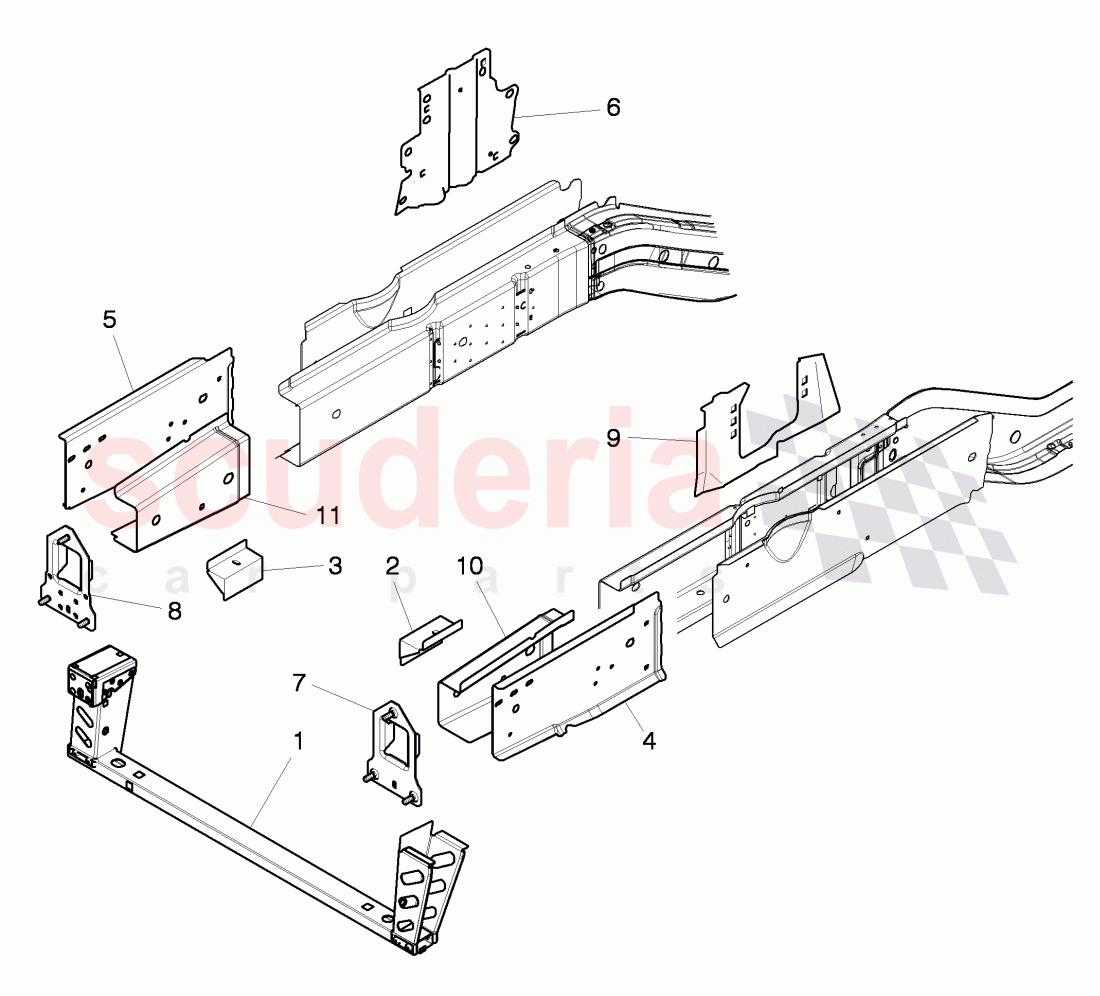

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3Y0805241B	cross member	$312.88	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0805483B	bracket, F >> 3Y-G-002 225, F >> ZH-G-002 225	$94.21	To Order
	3Y0 805 483 C	bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>>	$80.96	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0805484C	bracket, D - 27.06.2011>>, F >> 3Y-G-002 225, F >> ZH-G-002 225	$95.11	To Order
	3Y0 805 484 D	bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>>	$82.45	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0801127B	sectional part - side member closing plate	$213.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock

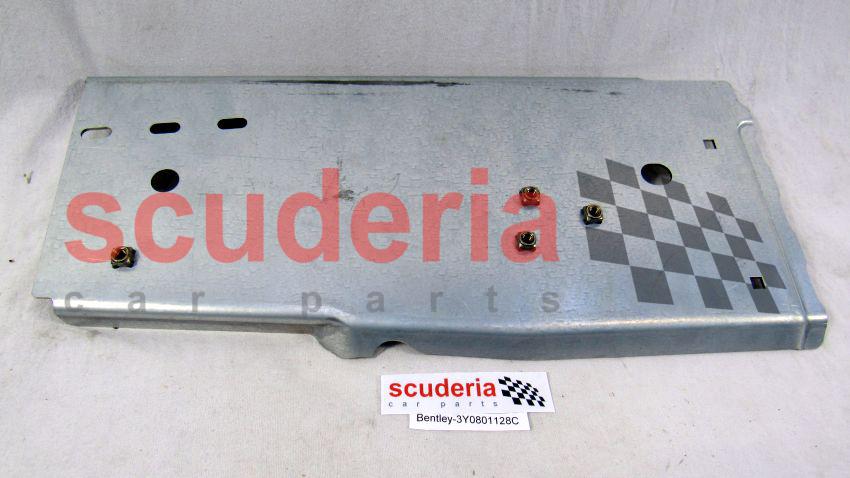

	3Y0801128C	sectional part - side member closing plate	$220.62	To Order

Photo	Part No	Description	Price (each)	Stock

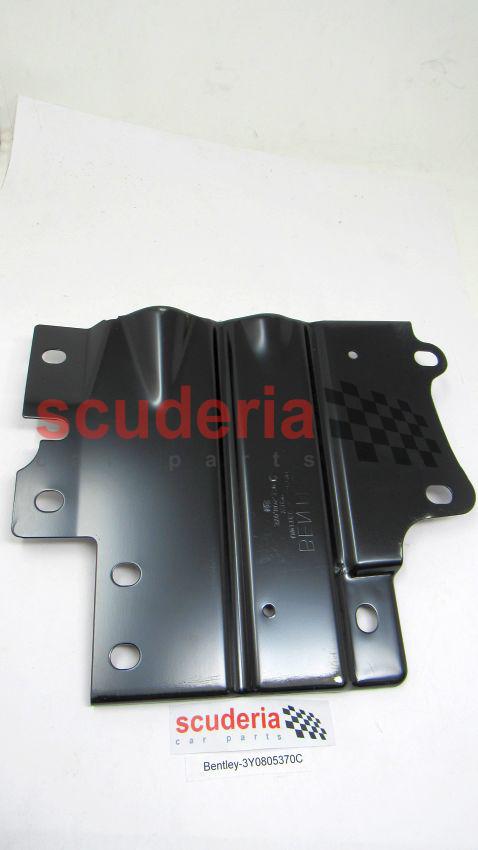

	3Y0805370C	closing plate	$72.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0805677	side reinforcement shock absorber bracket	$171.05	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0805678A	side reinforcement shock absorber bracket	$165.19	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0806027A	closing plate	$158.28	To Order

Photo	Part No	Description	Price (each)	Stock
	3Y0803555	sectional part - side member	$216.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3Y0803556A	sectional part - side member	$228.21	IN STOCK

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	3Y0805241B	cross member	3Y0805241B cross member front, lower, PR-K8B	$312.88	1	TO
2	3Y0805483B	bracket, F >> 3Y-G-002 225, F >> ZH-G-002 225	3Y0805483B bracket, F >> 3Y-G-002 225, F >> ZH-G-002 225 left, PR-K8B	$94.21	1	TO
2	3Y0 805 483 C	bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>>	3Y0 805 483 C bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>> left, PR-K8B	$80.96	1	TO
3	3Y0805484C	bracket, D - 27.06.2011>>, F >> 3Y-G-002 225, F >> ZH-G-002 225	3Y0805484C bracket, D - 27.06.2011>>, F >> 3Y-G-002 225, F >> ZH-G-002 225 right, PR-K8B	$95.11	1	TO
3	3Y0 805 484 D	bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>>	3Y0 805 484 D bracket, headlamp, F 3Y-G-002 226>>, F ZH-G-002 226>> right, PR-K8B	$82.45	1	TO
4	3Y0801127B	sectional part - side member closing plate IN STOCK	3Y0801127B sectional part - side member closing plate longitudinal, left front, PR-K8B IN STOCK	$213.00	1	IN
5	3Y0801128C	sectional part - side member closing plate	3Y0801128C sectional part - side member closing plate longitudinal, right front, PR-K8B	$220.62	1	TO
6	3Y0805370C	closing plate IN STOCK	3Y0805370C closing plate right, PR-K8B IN STOCK	$72.13	1	IN
7	3Y0805677	side reinforcement shock absorber bracket	3Y0805677 side reinforcement shock absorber bracket left, PR-K8B	$171.05	1	TO
8	3Y0805678A	side reinforcement shock absorber bracket	3Y0805678A side reinforcement shock absorber bracket right, PR-K8B	$165.19	1	TO
9	3Y0806027A	closing plate	3Y0806027A closing plate left, PR-K8B	$158.28	1	TO
10	3Y0803555	sectional part - side member IN STOCK	3Y0803555 sectional part - side member left front, PR-K8B IN STOCK	$216.81	1	IN
11	3Y0803556A	sectional part - side member IN STOCK	3Y0803556A sectional part - side member right front, PR-K8B IN STOCK	$228.21	1	IN

Floor Assembly, D >> - Mj 2016

Bentley Mulsanne (2010+)

Bentley Mulsanne (2010+) - floor assembly, D >> - MJ 2016
