Underbody, Rear (Volante)

Aston Martin Virage

Find Your Part

Aston Martin Virage - Underbody, Rear (Volante)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G43L103B44AC Cross member, rear upper Enquire To Order
Photo Part No Description Price (each) Stock
4G43-501A0-AB NUTPALTE REAR RETACTOR UNF 7-16 $24.46 To Order
Photo Part No Description Price (each) Stock
AG43L10786AA Cross member, rear floor, front Enquire To Order
Photo Part No Description Price (each) Stock
8G43111B22GB Reinf, front floor pan, RH Enquire To Order
Photo Part No Description Price (each) Stock
P08G4310765AB Bracket, battery hold down clamp Enquire To Order
Photo Part No Description Price (each) Stock
CG43111B23AA Reinforcement front floor pan, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4310799AB Reinf front floor, centre section, rear, LH Enquire To Order
8G4310798AA Reinf, front floor, centre section, rear, RH (not illustrated) Enquire To Order
Photo Part No Description Price (each) Stock
P08G43109A69AB Cross member, front floor, rear, LH Enquire To Order
P08G43109A68AC Cross member, front floor, rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
8G43-347863-AA FRT LH NUTPLATE REAR SUB- FRAME FRONT LH $26.59 To Order
8G43-347864-AA FRT RH NUTPLATE REAR SUBFRAME FRT RH $26.59 To Order
Photo Part No Description Price (each) Stock
8G43L24313AC Pillar, centre body, LH Enquire To Order
8G43-L24312-AC PILLAR CENTRE BODY RH $253.83 To Order
Photo Part No Description Price (each) Stock
4G43-C393126-AE NUTPLATE B POST M8 $15.95 To Order
Photo Part No Description Price (each) Stock
BG43L24315AA Pillar, centre body, outer rear, LH Enquire To Order
BG43L24314AA Pillar, centre body, outer rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG43L24327AA Pillar, centre body inner rear, LH Enquire To Order
AG43L24326AA Pillar, centre body inner rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-24320-AA Reinforcement, Centre Body Pillar $22.20 To Order
Photo Part No Description Price (each) Stock
8G43-27925-AA PANEL REAR QUARTER INSIDE LH $90.98 To Order
8G43-27924-AA PANEL REAR QUARTER INSIDE RH $90.98 To Order
Photo Part No Description Price (each) Stock
P08G43-101K93-AC MEMBER FLOOR SIDE UPPER REAR LH $85.77 To Order
P08G43101K92AB Member, floor side upper rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-10471-AA Member, Floor Side Inner Rear, LH $55.33 To Order
GOAG33-10470-AA Member, Floor Side Inner Rear, RH $55.33 To Order
Photo Part No Description Price (each) Stock
GOAG33-10504-AA Member, Extrusion, Floor Side Lower Rear, RH $78.00 To Order
BG3310505AB Member, Extrusion, Floor Side Lower Rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
GO8G43L243A61AC Reinforcement centre body outer pillar centre, LH Enquire To Order
GO8G43-L243A60-AC REINF CENTRE BODY UPPER OUTER PILLAR CTR RH $634.46 To Order
Photo Part No Description Price (each) Stock
8G43-101D07-GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH $144.89 To Order
8G43-101D06-GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH $144.89 To Order
Photo Part No Description Price (each) Stock
8G43L20415AE Pan, reinforcement door opening rear, LH $107.48 To Order
8G43-L20414-AE REINFORCED DOOR OPENING FRONT REAR RIGHT HAND $125.26 To Order
Photo Part No Description Price (each) Stock
8G43L24577AB Panel, Centre Body Pillar, LH Enquire To Order
8G43L24576AB Panel, Centre Body Pillar, RH Enquire To Order

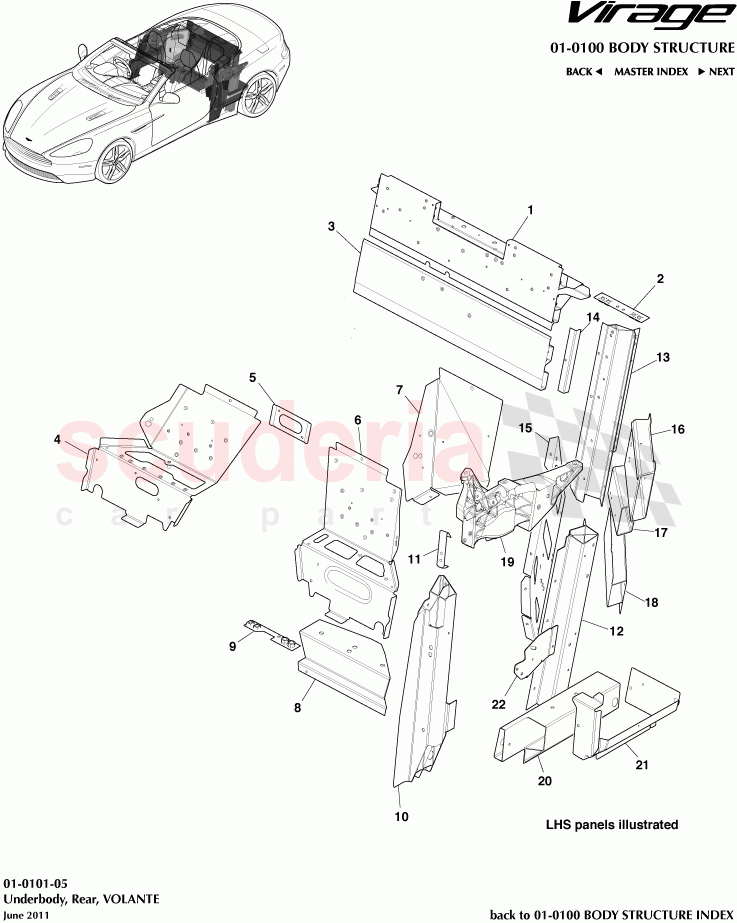

Underbody, Rear (Volante) of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G43L103B44AC
Cross member, rear upper 		- 1
PE
 Enquire
2 4G43-501A0-AB
NUTPALTE REAR RETACTOR UNF 7-16 		$24.46 1
TO
3 AG43L10786AA
Cross member, rear floor, front 		- 1
PE
 Enquire
4 8G43111B22GB
Reinf, front floor pan, RH 		- 1
PE
 Enquire
5 P08G4310765AB
Bracket, battery hold down clamp 		- 1
PE
 Enquire
6 CG43111B23AA
Reinforcement front floor pan, LH 		- 1
PE
 Enquire
7 8G4310799AB
Reinf front floor, centre section, rear, LH 		- 1
PE
 Enquire
7 8G4310798AA
Reinf, front floor, centre section, rear, RH (not illustrated) 		- 1
PE
 Enquire
8 P08G43109A69AB
Cross member, front floor, rear, LH 		- 1
PE
 Enquire
8 P08G43109A68AC
Cross member, front floor, rear, RH 		- 1
PE
 Enquire
9 8G43-347863-AA
FRT LH NUTPLATE REAR SUB- FRAME FRONT LH 		$26.59 1
TO
9 8G43-347864-AA
FRT RH NUTPLATE REAR SUBFRAME FRT RH 		$26.59 1
TO
10 8G43L24313AC
Pillar, centre body, LH 		- 1
PE
 Enquire
10 8G43-L24312-AC
PILLAR CENTRE BODY RH 		$253.83 1
TO
11 4G43-C393126-AE
NUTPLATE B POST M8 		$15.95 2
TO
12 BG43L24315AA
Pillar, centre body, outer rear, LH 		- 1
PE
 Enquire
12 BG43L24314AA
Pillar, centre body, outer rear, RH 		- 1
PE
 Enquire
13 AG43L24327AA
Pillar, centre body inner rear, LH 		- 1
PE
 Enquire
13 AG43L24326AA
Pillar, centre body inner rear, RH 		- 1
PE
 Enquire
14 GOAG33-24320-AA
Reinforcement, Centre Body Pillar 		$22.20 2
TO
15 8G43-27925-AA
PANEL REAR QUARTER INSIDE LH 		$90.98 1
TO
15 8G43-27924-AA
PANEL REAR QUARTER INSIDE RH 		$90.98 1
TO
16 P08G43-101K93-AC
MEMBER FLOOR SIDE UPPER REAR LH 		$85.77 1
TO
16 P08G43101K92AB
Member, floor side upper rear, RH 		- 1
PE
 Enquire
17 GOAG33-10471-AA
Member, Floor Side Inner Rear, LH 		$55.33 1
TO
17 GOAG33-10470-AA
Member, Floor Side Inner Rear, RH 		$55.33 1
TO
18 GOAG33-10504-AA
Member, Extrusion, Floor Side Lower Rear, RH 		$78.00 1
TO
18 BG3310505AB
Member, Extrusion, Floor Side Lower Rear, LH 		- 1
PE
 Enquire
19 GO8G43L243A61AC
Reinforcement centre body outer pillar centre, LH 		- 1
PE
 Enquire
19 GO8G43-L243A60-AC
REINF CENTRE BODY UPPER OUTER PILLAR CTR RH 		$634.46 1
TO
20 8G43-101D07-GC
EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH 		$144.89 1
TO
20 8G43-101D06-GC
EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH 		$144.89 1
TO
21 8G43L20415AE
Pan, reinforcement door opening rear, LH 		$107.48 1
TO
21 8G43-L20414-AE
REINFORCED DOOR OPENING FRONT REAR RIGHT HAND 		$125.26 1
TO
22 8G43L24577AB
Panel, Centre Body Pillar, LH 		- 1
PE
 Enquire
22 8G43L24576AB
Panel, Centre Body Pillar, RH 		- 1
PE
 Enquire
