Underbody, Rear (Coupe)

Aston Martin Virage

Find Your Part

Aston Martin Virage - Underbody, Rear (Coupe)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G43-C103B44-AC MEMBER REAR CROSS UPPER $254.43 To Order
Photo Part No Description Price (each) Stock
4G43-501A0-AB NUTPALTE REAR RETACTOR UNF 7-16 $24.46 To Order
Photo Part No Description Price (each) Stock
AG43C10786AA Cross member, rear floor, front Enquire To Order
Photo Part No Description Price (each) Stock
8G43111B22GB Reinf, front floor pan, RH Enquire To Order
Photo Part No Description Price (each) Stock
P08G4310765AB Bracket, battery hold down clamp Enquire To Order
Photo Part No Description Price (each) Stock
CG43111B23AA Reinforcement front floor pan, LH Enquire To Order
Photo Part No Description Price (each) Stock
8G4310799AB Reinf front floor, centre section, rear, LH Enquire To Order
8G4310798AA Reinf, front floor, centre section, rear, RH (not illustrated) Enquire To Order
Photo Part No Description Price (each) Stock
P08G43109A69AB Cross member, front floor, rear, LH Enquire To Order
P08G43109A68AC Cross member, front floor, rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
8G43-347863-AA FRT LH NUTPLATE REAR SUB- FRAME FRONT LH $26.59 To Order
8G43-347864-AA FRT RH NUTPLATE REAR SUBFRAME FRT RH $26.59 To Order
Photo Part No Description Price (each) Stock
8G43C24313AB Pillar, centre body, LH $240.08 To Order
8G43-C24312-AB PILLAR CENTRE BODY RH $164.97 To Order
Photo Part No Description Price (each) Stock
4G43-C393126-AE NUTPLATE B POST M8 $15.95 To Order
Photo Part No Description Price (each) Stock
BG4324315AA Pillar, centre body, outer rear, LH Enquire To Order
BG4324314AA Pillar, centre body, outer rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG43C24327AA Pillar, centre body inner rear, LH Enquire To Order
AG43C24326AA Pillar, centre body inner rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-24320-AA Reinforcement, Centre Body Pillar $22.20 To Order
Photo Part No Description Price (each) Stock
8G43-27925-AA PANEL REAR QUARTER INSIDE LH $90.98 To Order
8G43-27924-AA PANEL REAR QUARTER INSIDE RH $90.98 To Order
Photo Part No Description Price (each) Stock
P08G43-101K93-AC MEMBER FLOOR SIDE UPPER REAR LH $85.77 To Order
P08G43101K92AB Member, floor side upper rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
GOAG33-10471-AA Member, Floor Side Inner Rear, LH $55.33 To Order
GOAG33-10470-AA Member, Floor Side Inner Rear, RH $55.33 To Order
Photo Part No Description Price (each) Stock
BG3310505AB Member, Extrusion, Floor Side Lower Rear, LH Enquire To Order
BG3310504AA Member, extension floor side lower rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
8G43C24577GD Panel, centre body pillar, LH Enquire To Order
8G43C24576GC Panel, centre body pillar, RH (not illustrated) $248.78 To Order
Photo Part No Description Price (each) Stock
P08G43-C101D09-AC EXTENSION MEMBER REAR FLOOR SIDE UPPER LH $92.08 To Order
P08G43-C101D08-AC EXTENSION MEMBER REAR FLOOR SIDE UPPER RH $93.77 To Order
Photo Part No Description Price (each) Stock
8G43-101D07-GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH $144.89 To Order
8G43-101D06-GC EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH $144.89 To Order
Photo Part No Description Price (each) Stock
P08G43-C20415-AC Reinforcement, Door Opening Rear, LH $159.16 To Order
P08G43-C20414-AC Reinforcement, Door Opening Rear, RH $159.16 To Order
Photo Part No Description Price (each) Stock
P08G43-611D39-AA BRACKET ASSY FRONT SEAT BELT RETAINER LH $5.50 To Order
P08G43611D38AA Bracket assy, front seat belt retainer, RH Enquire To Order

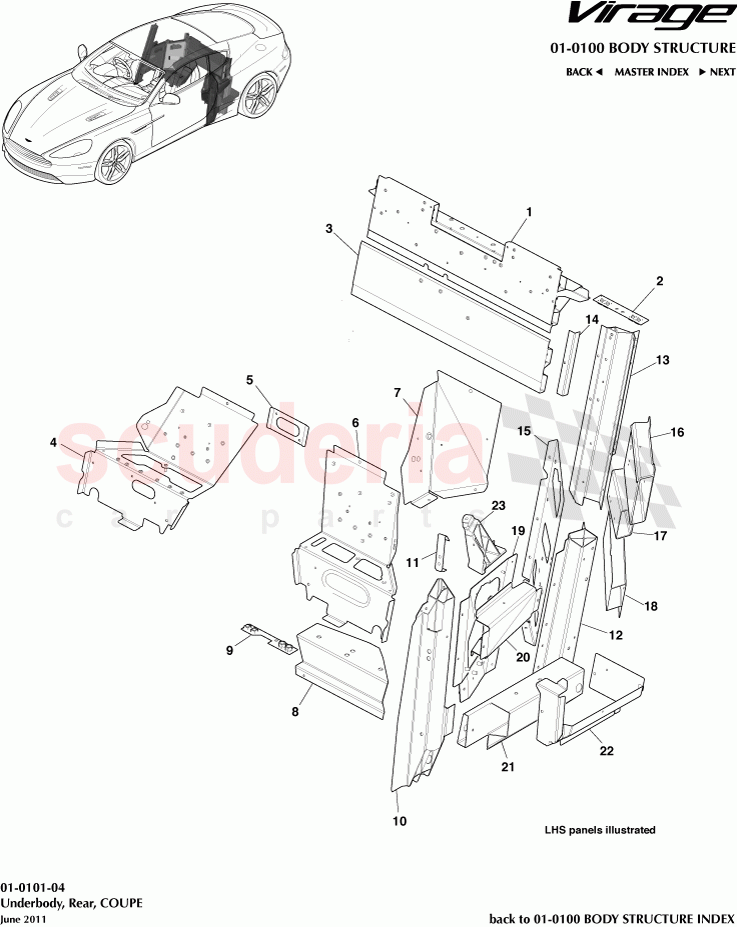

Underbody, Rear (Coupe) of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G43-C103B44-AC
MEMBER REAR CROSS UPPER 		$254.43 1
TO
2 4G43-501A0-AB
NUTPALTE REAR RETACTOR UNF 7-16 		$24.46 1
TO
3 AG43C10786AA
Cross member, rear floor, front 		- 1
PE
 Enquire
4 8G43111B22GB
Reinf, front floor pan, RH 		- 1
PE
 Enquire
5 P08G4310765AB
Bracket, battery hold down clamp 		- 1
PE
 Enquire
6 CG43111B23AA
Reinforcement front floor pan, LH 		- 1
PE
 Enquire
7 8G4310799AB
Reinf front floor, centre section, rear, LH 		- 1
PE
 Enquire
7 8G4310798AA
Reinf, front floor, centre section, rear, RH (not illustrated) 		- 1
PE
 Enquire
8 P08G43109A69AB
Cross member, front floor, rear, LH 		- 1
PE
 Enquire
8 P08G43109A68AC
Cross member, front floor, rear, RH 		- 1
PE
 Enquire
9 8G43-347863-AA
FRT LH NUTPLATE REAR SUB- FRAME FRONT LH 		$26.59 1
TO
9 8G43-347864-AA
FRT RH NUTPLATE REAR SUBFRAME FRT RH 		$26.59 1
TO
10 8G43C24313AB
Pillar, centre body, LH 		$240.08 1
TO
10 8G43-C24312-AB
PILLAR CENTRE BODY RH 		$164.97 1
TO
11 4G43-C393126-AE
NUTPLATE B POST M8 		$15.95 2
TO
12 BG4324315AA
Pillar, centre body, outer rear, LH 		- 1
PE
 Enquire
12 BG4324314AA
Pillar, centre body, outer rear, RH 		- 1
PE
 Enquire
13 AG43C24327AA
Pillar, centre body inner rear, LH 		- 1
PE
 Enquire
13 AG43C24326AA
Pillar, centre body inner rear, RH 		- 1
PE
 Enquire
14 GOAG33-24320-AA
Reinforcement, Centre Body Pillar 		$22.20 2
TO
15 8G43-27925-AA
PANEL REAR QUARTER INSIDE LH 		$90.98 1
TO
15 8G43-27924-AA
PANEL REAR QUARTER INSIDE RH 		$90.98 1
TO
16 P08G43-101K93-AC
MEMBER FLOOR SIDE UPPER REAR LH 		$85.77 1
TO
16 P08G43101K92AB
Member, floor side upper rear, RH 		- 1
PE
 Enquire
17 GOAG33-10471-AA
Member, Floor Side Inner Rear, LH 		$55.33 1
TO
17 GOAG33-10470-AA
Member, Floor Side Inner Rear, RH 		$55.33 1
TO
18 BG3310505AB
Member, Extrusion, Floor Side Lower Rear, LH 		- 1
PE
 Enquire
18 BG3310504AA
Member, extension floor side lower rear, RH 		- 1
PE
 Enquire
19 8G43C24577GD
Panel, centre body pillar, LH 		- 1
PE
 Enquire
19 8G43C24576GC
Panel, centre body pillar, RH (not illustrated) 		$248.78 1
TO
20 P08G43-C101D09-AC
EXTENSION MEMBER REAR FLOOR SIDE UPPER LH 		$92.08 1
TO
20 P08G43-C101D08-AC
EXTENSION MEMBER REAR FLOOR SIDE UPPER RH 		$93.77 1
TO
21 8G43-101D07-GC
EXTRUSION MEMBER REAR FLOOR SIDE LOWER LH 		$144.89 1
TO
21 8G43-101D06-GC
EXTRUSION MEMBER REAR FLOOR SIDE LOWER RH 		$144.89 1
TO
22 P08G43-C20415-AC
Reinforcement, Door Opening Rear, LH 		$159.16 1
TO
22 P08G43-C20414-AC
Reinforcement, Door Opening Rear, RH 		$159.16 1
TO
23 P08G43-611D39-AA
BRACKET ASSY FRONT SEAT BELT RETAINER LH 		$5.50 1
TO
23 P08G43611D38AA
Bracket assy, front seat belt retainer, RH 		- 1
PE
 Enquire
