Underbody

Aston Martin Virage

Find Your Part

Photo Part No Description Price (each) Stock
4G43-16-10879S Panel assy, floor, RH $498.71 To Order
Photo Part No Description Price (each) Stock
FD33-11141-AC PANEL FLOOR LH Enquire To Order
Photo Part No Description Price (each) Stock
8G43-13058-AB TUNNEL REAR SIDE RH Enquire To Order
Photo Part No Description Price (each) Stock
9G43-13059-AB TUNNEL REAR SIDE LH $148.25 To Order
Photo Part No Description Price (each) Stock
8G43-67340-AA PANEL REAR SEAT HEEL BOARD LOWER RH $66.34 To Order
Photo Part No Description Price (each) Stock
8G43-67341-GA PANEL REAR SEAT HEEL BOARD LOWER LH $58.35 To Order
Photo Part No Description Price (each) Stock
8G43-67342-AA SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH $55.96 To Order
Photo Part No Description Price (each) Stock
4G43-20-10876 FRONT SUBFRAME UPRIGHT ASSY RH-DB9 $463.87 To Order
Photo Part No Description Price (each) Stock
4G43-20-10877 FRONT SUBFRAME UPRIGHT ASSY-LH DB9 $463.87 To Order
Photo Part No Description Price (each) Stock
8G43-434K10-AA NUTPLATE FRONT END MOUNTING OUTER RH M12 $87.83 To Order
Photo Part No Description Price (each) Stock
8G43-434K11-AA NUTPLATE FRONT END MOUNTING OUTER LH M12 $21.30 To Order
Photo Part No Description Price (each) Stock
8G43-390725-AA NUT PLATE FRONT END MOUNTING INR M12 $32.23 To Order
Photo Part No Description Price (each) Stock
CG43-10120-AA MEMBER FLOOR SIDE FRONT $249.20 To Order
Photo Part No Description Price (each) Stock
AG33F001K28AA Bracket, tunnel upper inner Enquire To Order
Photo Part No Description Price (each) Stock
AG3310094AA Member, Reinforcement Front Side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG33-10095-AA Member, Reinforcement Front Side, LH $65.33 To Order
Photo Part No Description Price (each) Stock
AG33100A94AA Member, lower reinforce front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG33100A95AA Member, lower reinforce front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310276AA Member, front side, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310277AA Member, front side, LH Enquire To Order
Photo Part No Description Price (each) Stock
P0BG33-113C18-AA Panel, tunnel top front Enquire To Order
Photo Part No Description Price (each) Stock
8G4311160AD Panel, tunnel top Enquire To Order
Photo Part No Description Price (each) Stock
AG33F02599AB Member, body front cross Enquire To Order
Photo Part No Description Price (each) Stock
8G4358111K36GA Tunnel, reinforce rear, RH Enquire To Order
Photo Part No Description Price (each) Stock
P08G4358111K37GA Tunnel, reinforce rear, LH Enquire To Order
Photo Part No Description Price (each) Stock
BG43L1898AA Sill assy, outer, RH, VOLANTE Enquire To Order
BG43C1898AA Sill assy, outer, RH, COUPE Enquire To Order
Photo Part No Description Price (each) Stock
BG43-L1899-AA ASSEMBLY SILL OUTER LH $1,566.86 To Order
BG43-C1899-AA Assembly Sill Out LH $896.04 To Order
Photo Part No Description Price (each) Stock
AG3310772AA Extrusion, tunnel, RH Enquire To Order
Photo Part No Description Price (each) Stock
AG3310773AA Extrusion, tunnel, LH Enquire To Order
Photo Part No Description Price (each) Stock
6G33-46768-AA RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni $1.73 To Order
Photo Part No Description Price (each) Stock
6G33-68676-AC Rivet Structural 6.5 x 14, Blind $1.11 To Order
Photo Part No Description Price (each) Stock
6G33-68885-AB SELF PIERCING RIVET 5.0 x 6.0mm $0.12 To Order
Photo Part No Description Price (each) Stock
6G33-33800-AA Rivnut, 7/16UNF hex flange $1.46 To Order
Photo Part No Description Price (each) Stock
4G43-N800631-AA Rubber Plug, 11mm, Black Thermoplastic $0.86 To Order
Photo Part No Description Price (each) Stock
6G33-37949-AA DIA 4.8 X 13.9 BLIND RIVET $0.12 To Order

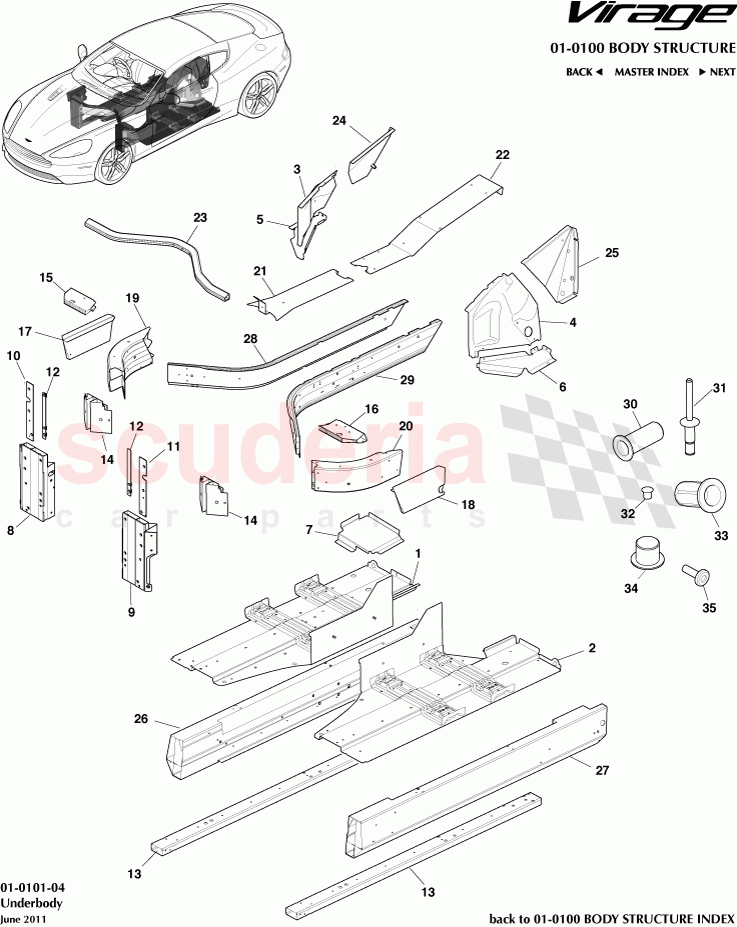

Underbody of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43-16-10879S
Panel assy, floor, RH
VIN stamp required 		$498.71 1
2 FD33-11141-AC
PANEL FLOOR LH 		- 1 Enquire
3 8G43-13058-AB
TUNNEL REAR SIDE RH 		- 1 Enquire
4 9G43-13059-AB
TUNNEL REAR SIDE LH 		$148.25 1
5 8G43-67340-AA
PANEL REAR SEAT HEEL BOARD LOWER RH 		$66.34 1
6 8G43-67341-GA
PANEL REAR SEAT HEEL BOARD LOWER LH 		$58.35 1
7 8G43-67342-AA
SEAT FINISHER REAR SEAT HEEL BOARD LOWER RH 		$55.96 1
8 4G43-20-10876
FRONT SUBFRAME UPRIGHT ASSY RH-DB9 		$463.87 1
9 4G43-20-10877
FRONT SUBFRAME UPRIGHT ASSY-LH DB9 		$463.87 1
10 8G43-434K10-AA
NUTPLATE FRONT END MOUNTING OUTER RH M12 		$87.83 1
11 8G43-434K11-AA
NUTPLATE FRONT END MOUNTING OUTER LH M12 		$21.30 1
12 8G43-390725-AA
NUT PLATE FRONT END MOUNTING INR M12 		$32.23 2
13 CG43-10120-AA
MEMBER FLOOR SIDE FRONT 		$249.20 2
14 AG33F001K28AA
Bracket, tunnel upper inner 		- 2 Enquire
15 AG3310094AA
Member, Reinforcement Front Side, RH 		- 1 Enquire
16 AG33-10095-AA
Member, Reinforcement Front Side, LH 		$65.33 1
17 AG33100A94AA
Member, lower reinforce front side, RH 		- 1 Enquire
18 AG33100A95AA
Member, lower reinforce front side, LH 		- 1 Enquire
19 AG3310276AA
Member, front side, RH 		- 1 Enquire
20 AG3310277AA
Member, front side, LH 		- 1 Enquire
21 P0BG33-113C18-AA
Panel, tunnel top front 		- 1 Enquire
22 8G4311160AD
Panel, tunnel top 		- 1 Enquire
23 AG33F02599AB
Member, body front cross 		- 1 Enquire
24 8G4358111K36GA
Tunnel, reinforce rear, RH 		- 1 Enquire
25 P08G4358111K37GA
Tunnel, reinforce rear, LH 		- 1 Enquire
26 BG43L1898AA
Sill assy, outer, RH, VOLANTE
VOLANTE 		- 1 Enquire
26 BG43C1898AA
Sill assy, outer, RH, COUPE
COUPE 		- 1 Enquire
27 BG43-L1899-AA
ASSEMBLY SILL OUTER LH
VOLANTE 		$1,566.86 1
27 BG43-C1899-AA
Assembly Sill Out LH
COUPE 		$896.04 1
28 AG3310772AA
Extrusion, tunnel, RH 		- 1 Enquire
29 AG3310773AA
Extrusion, tunnel, LH 		- 1 Enquire
30 6G33-46768-AA
RIVNUT M6/M10L FLAT HEAD 1.5-3mm GRIP Zn/Ni 		$1.73 4
31 6G33-68676-AC
Rivet Structural 6.5 x 14, Blind 		$1.11 -
32 6G33-68885-AB
SELF PIERCING RIVET 5.0 x 6.0mm 		$0.12 -
33 6G33-33800-AA
Rivnut, 7/16UNF hex flange 		$1.46 4
34 4G43-N800631-AA
Rubber Plug, 11mm, Black Thermoplastic 		$0.86 2
35 6G33-37949-AA
DIA 4.8 X 13.9 BLIND RIVET 		$0.12 6
