Aston Martin Vanquish (2001-2007) - Fuses

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12-370536-AF F/BOX 18WAY FACIA RH $186.48 IN STOCK
Photo Part No Description Price (each) Stock
1R12-370537-AC F/BOX 18WAY FACIA $186.48 To Order
Photo Part No Description Price (each) Stock
3R12-370534-AA BOOT FUSEBOX $279.59 To Order
1R12-370534-AD FUSEBOX 22 WAY-BOOT $322.07 To Order
Photo Part No Description Price (each) Stock
3R12-370533-AB UNDER BONNET F/BOX $372.79 To Order
Photo Part No Description Price (each) Stock
1R12-370535-AD F/BOX 18 WAY EMS $217.51 To Order
37-23424 Fuse, Midi 10A $1.89 To Order
37-23425 Fuse, Midi 15A $1.89 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12-37-10207 FUSE 60 AMP COOLING FAN $12.09 To Order
Photo Part No Description Price (each) Stock
1R12-371986-AD BRACKET - CONNECTOR TRUNK $70.29 To Order
Photo Part No Description Price (each) Stock
694567 WASHER M6 x 18 OD 0.9 THICK ZINC PLT $7.77 To Order
Photo Part No Description Price (each) Stock
5R13-13B525-AA BRACKET - FUSEBOX SHIELD -RHD $50.26 To Order
5R13-13B525-BA BRACKET - FUSEBOX LID - LHD $50.26 To Order
5R13-13B524-AA FUSEBOX SHIELD -RHD $187.81 To Order
...and 7 more part variants. See table on right for more details.

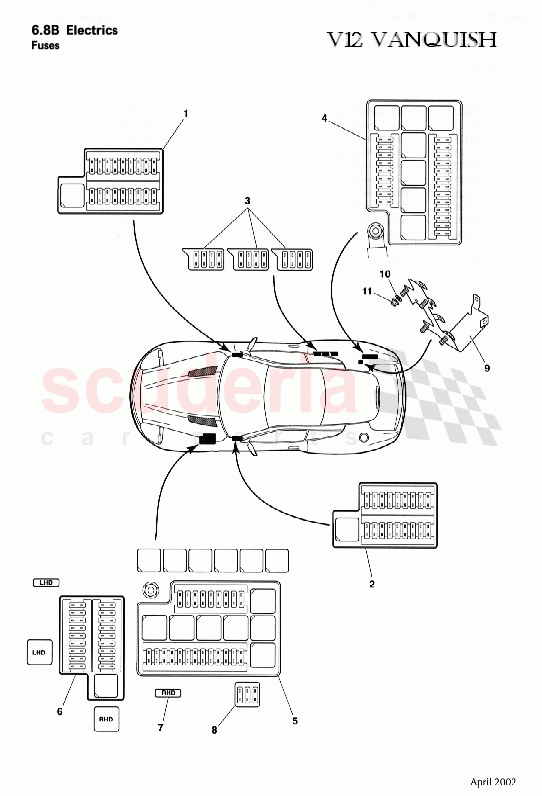

Fuses of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12-370536-AF
F/BOX 18WAY FACIA RH
IN STOCK 		$186.48 1
IN
2 1R12-370537-AC
F/BOX 18WAY FACIA 		$186.48 1
TO
4 3R12-370534-AA
BOOT FUSEBOX
From (V) 500516-21 + 526 onwards 		$279.59 1
TO
4 1R12-370534-AD
FUSEBOX 22 WAY-BOOT
Up to (V) 500515 + 500522-525 		$322.07 1
TO
5 3R12-370533-AB
UNDER BONNET F/BOX 		$372.79 1
TO
6 1R12-370535-AD
F/BOX 18 WAY EMS 		$217.51 1
TO
6 37-23424
Fuse, Midi 10A 		$1.89 1
TO
6 37-23425
Fuse, Midi 15A 		$1.89 1
TO
6 37-23426
Fuse, Midi 20A 		$1.89 1
TO
6 37-23427
Fuse, Midi 25A 		$1.77 1
TO
6 37-23428
Fuse, Midi 30A 		$4.25 1
TO
6 37-23422
Fuse, Midi 5A 		$1.89 1
TO
7 1R12-37-10207
FUSE 60 AMP COOLING FAN
Cooling fans 		$12.09 1
TO
9 1R12-371986-AD
BRACKET - CONNECTOR TRUNK 		$70.29 1
TO
10 694567
WASHER M6 x 18 OD 0.9 THICK ZINC PLT 		$7.77 2
TO
11 5R13-13B525-AA
BRACKET - FUSEBOX SHIELD -RHD
RHD 		$50.26 1
TO
11 5R13-13B525-BA
BRACKET - FUSEBOX LID - LHD
LHD 		$50.26 1
TO
11 5R13-13B524-AA
FUSEBOX SHIELD -RHD
RHD 		$187.81 1
TO
11 5R13-13B524-BA
FUSEBOX SHIELD LHD
LHD 		$187.81 1
TO
11 1R12-375796-AC
SUPPORT LEG-FUSEBOX BRACKET RHD 		$90.87 1
TO
11 1R12-372775-AA
BRACKET - MAXIFUSE HOLDER 		$3.41 1
TO
11 697320
SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8
IN STOCK 		$1.82 1
IN
11 696504-PK
TRIM RETAINER-(10) 		$46.11 1
TO
11 696503-PK
TRIM PIN PACK (10)
IN STOCK 		$23.08 1
IN
11 699697
Nut, M6, Flg Duralock 		$3.02 2
TO
