In Car Entertainment 1

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - In Car Entertainment 1

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91494 RECEIVER Enquire To Order
1R12-374079-AA RECEIVER INT MEDIA LHD PREMIUM $1,351.92 To Order
91493 RECEIVER $1,753.34 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12-37-10032 SPEAKER-DOOR TWEETER $69.75 To Order
Photo Part No Description Price (each) Stock
1R12-37-10033 SPKR-DOOR BASS 6.5in $93.74 To Order
1R12-37-10034 SPKR-DOOR BASS 6.5in $56.86 To Order
3R12-375516-AA DOOR SPEAKER ASSY RH SATIN CHROME $718.22 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12-370421-AA BRACKET - DOOR SPEAKER $51.24 To Order
Photo Part No Description Price (each) Stock
699293 SPIRE CLIP NO.6 $0.86 To Order
Photo Part No Description Price (each) Stock
700121 SCREW No6x3/4in BLK REC PAN HD S/T $0.07 To Order
700429 Screw, M4 x 20 black Enquire To Order
700428 SCREW M4 x 20 STAINLESS STEEL $1.65 To Order
Photo Part No Description Price (each) Stock
703278 Screw, M6 x 10, Flange Hex Head $0.17 To Order
Photo Part No Description Price (each) Stock
1R12-37-10024 AERIAL-GPS $564.75 To Order
Photo Part No Description Price (each) Stock
4G43-10E921-BC Base Plate, GPS $25.83 To Order
Photo Part No Description Price (each) Stock
1R12-372037-AC MODULE - ANTENNA $468.62 To Order
Photo Part No Description Price (each) Stock
3R12-375512-AA REAR SHELF BEZEL ASSY RH BLACK $541.25 To Order
3R12-375511-AA REAR SHELF BEZEL ASSY LH BLACK $541.25 To Order
3R12-375510-AA MID RANGE SPEAKER ASSY $244.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12-374207-AB CORDED HANDSET $704.66 To Order
1R12-374777-AA TELEPHONE HANDSET VORIZON $2,098.94 To Order
Photo Part No Description Price (each) Stock
1R12-37-10047 TELEPHONE CRADLE $38.56 To Order
Photo Part No Description Price (each) Stock
1R123710179 Cover, cradle Enquire To Order
Photo Part No Description Price (each) Stock
700100 SCREW M4x12 PAN $0.08 To Order
Photo Part No Description Price (each) Stock
699587 WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS $0.35 To Order
697431 NUT M4 NYLOC $0.12 To Order
Photo Part No Description Price (each) Stock
1R12-633337-AA HARNESS PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
699695 SCREW N04x10 FLANGE POZI ST SCREW $0.07 To Order
Photo Part No Description Price (each) Stock
1R12835205AA Packer, radio mounting bracket Enquire To Order
1R12-835206-AB ASSY BRACKET COINTRAY / RADIO $94.60 To Order
700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK $0.47 To Order

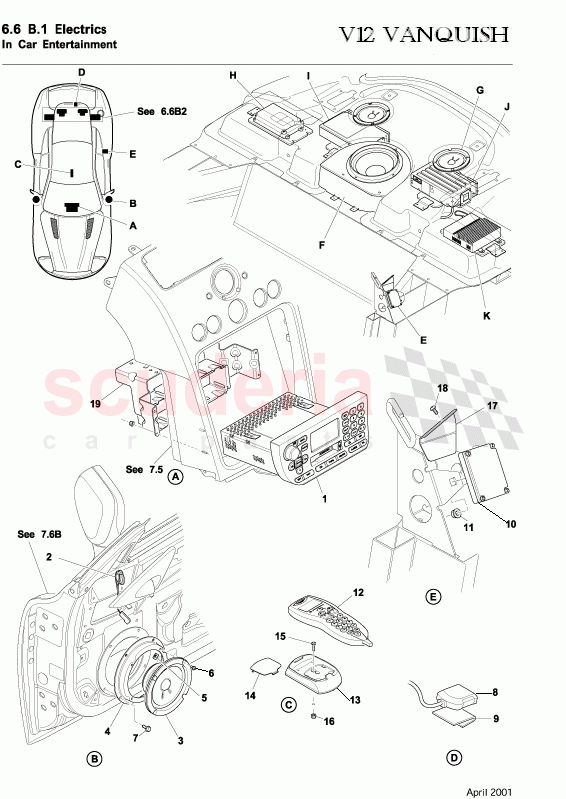

In Car Entertainment 1 of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91494
RECEIVER
Up to (V) 500515 + 500522-525 		- 1
PE
 Enquire
1 1R12-374079-AA
RECEIVER INT MEDIA LHD PREMIUM
Up to (V) 500515 + 500522-525 		$1,351.92 1
TO
1 91493
RECEIVER
Up to (V) 500515 + 500522-525 		$1,753.34 1
TO
1 1R12-370417-AA
RECEIVER - INTEGRATED MEDIA (LHD)
Up to (V) 500515 + 500522-525 		$2,392.06 1
TO
1 91532
RECEIVER
From (V) 500516-21 + 526 on 		$2,219.86 1
TO
1 91497
RECEIVER
From (V) 500516-21 + 526 on 		$2,149.44 1
TO
1 91499
RECEIVER
Vanquish S From (V) 501506 		$1,608.58 1
TO
1 91498
RECEIVER
Vanquish S From (V) 501506 		$1,320.60 1
TO
2 1R12-37-10032
SPEAKER-DOOR TWEETER
Up to (V) 500515 + 500522-525 		$69.75 2
TO
3 1R12-37-10033
SPKR-DOOR BASS 6.5in
Up to (V) 500515 + 500522-525 		$93.74 2
TO
3 1R12-37-10034
SPKR-DOOR BASS 6.5in
Up to (V) 500515 + 500522-525 		$56.86 2
TO
3 3R12-375516-AA
DOOR SPEAKER ASSY RH SATIN CHROME
From (V) 500516-21 + 526 on 		$718.22 1
TO
3 3R12-375515-AA
DOOR SPEAKER ASSY LH SATIN CHROME
From (V) 500516-21 + 526 on 		$907.28 1
TO
4 1R12-370421-AA
BRACKET - DOOR SPEAKER
Up to (V) 500515 + 500522-525 		$51.24 4
TO
5 699293
SPIRE CLIP NO.6
Up to (V) 500515 + 500522-525 		$0.86 16
TO
6 700121
SCREW No6x3/4in BLK REC PAN HD S/T
Up to (V) 500515 + 500522-525 		$0.07 8
TO
6 700429
Screw, M4 x 20 black
From (V) 500516-21 + 526 on 		- 8
PE
 Enquire
6 700428
SCREW M4 x 20 STAINLESS STEEL
From (V) 500516-21 + 526 on 		$1.65 8
TO
7 703278
Screw, M6 x 10, Flange Hex Head 		$0.17 8
TO
8 1R12-37-10024
AERIAL-GPS 		$564.75 1
TO
9 4G43-10E921-BC
Base Plate, GPS 		$25.83 1
TO
10 1R12-372037-AC
MODULE - ANTENNA 		$468.62 1
TO
11 3R12-375512-AA
REAR SHELF BEZEL ASSY RH BLACK
From (V) 500516-21 + 526 on 		$541.25 1
TO
11 3R12-375511-AA
REAR SHELF BEZEL ASSY LH BLACK
From (V) 500516-21 + 526 on 		$541.25 1
TO
11 3R12-375510-AA
MID RANGE SPEAKER ASSY
From (V) 500516-21 + 526 on 		$244.76 2
TO
11 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.56 1
IN
12 1R12-374207-AB
CORDED HANDSET
Up to (V) 500515 + 500522-525 		$704.66 1
TO
12 1R12-374777-AA
TELEPHONE HANDSET VORIZON 		$2,098.94 1
TO
13 1R12-37-10047
TELEPHONE CRADLE
Up to (V) 500515 + 500522-525 		$38.56 1
TO
14 1R123710179
Cover, cradle
Up to (V) 500515 + 500522-525 		- 1
PE
 Enquire
15 700100
SCREW M4x12 PAN 		$0.08 2
TO
16 699587
WASHER M4 BLACK GRD 4.8 ZINC & BLK PASS 		$0.35 2
TO
16 697431
NUT M4 NYLOC 		$0.12 2
TO
17 1R12-633337-AA
HARNESS PROTECTOR 		- 1
PE
 Enquire
18 699695
SCREW N04x10 FLANGE POZI ST SCREW 		$0.07 1
TO
19 1R12835205AA
Packer, radio mounting bracket
Vanquish S from (V) 501506 up to (V) 501948 		- 1
PE
 Enquire
19 1R12-835206-AB
ASSY BRACKET COINTRAY / RADIO
Up to (V) 501948 		$94.60 1
TO
19 700963
SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK 		$0.47 4
TO
20 1R12-373560-AA
WATER SHEDDER - DOOR SPEAKER
Up to (V) 500515 + 500522-525 		$48.62 2
TO
20 3R12-375702-AB
GASKET - SHEDDER DOOR SPEAKER
From (V) 500516-21 + 526 on 		$5.67 2
TO
20 3R12-375701-AB
WATER SHEDDER - DOOR SPEAKER
From (V) 500516-21 + 526 on 		$37.95 2
TO
21 1R12-374219-AA
MOTOROLA DIGITAL STARTAC TELEPHONE 		$2,596.03 1
TO
