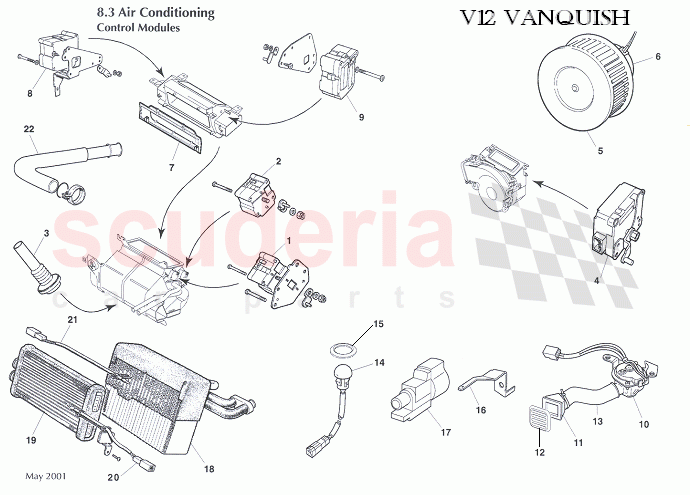

Control Modules of Aston Martin Aston Martin Vanquish (2001-2007)

Aston Martin Vanquish (2001-2007) - Control Modules

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	MLA6440AE	Servo motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910386	Bypass servo motor	$465.64	To Order

Photo	Part No	Description	Price (each)	Stock
	MJA6510AA	Condensate drain tube assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910387	Servo motor, blower motor, RH	Enquire	To Order
	1R128910388	Servo motor, blower motor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910389	Fan, blower motor, RH	Enquire	To Order
	1R128910390	Fan, blower motor, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910391	Motor, blower fan, RH	Enquire	To Order
	1R128910392	Motor, blower fan, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MJA6670AA	Air duct, face level centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910393	Servo motor, defrost vent	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910394	Servo motor, face vent	$534.61	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10042	ASPIRATOR MOTOR	$537.77	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10038	Housing, In-Car Temp Sensor	$318.88	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10045	Grille, Aspirator	$5.18	To Order

Photo	Part No	Description	Price (each)	Stock
	3R12-895857-AA	EXTENSION HOSE ASPIRATOR TUBE	$2.23	To Order
	1R12-89-10039	DRAIN TUBE-ASP.MOTOR	$3.33	To Order
	3R12895852AA	Tube, aspirator rework	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10040	SOLAR SENSOR	$53.77	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10041	BEZEL-SOLAR SENSOR	$10.74	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10395	MTG BRKT-SENSOR	$3.56	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10482	SENSOR-AMB AIR TEMP	$34.22	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10360	EVAPORATOR-AIR COND	$2,019.27	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12-89-10361	HEATER CORE ASSY	$565.75	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910362	Thermister, heater core outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R128910364	Outlet pipe kit	Enquire	To Order

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	MLA6440AE	Servo motor	MLA6440AE Servo motor	-	1	PE	Enquire
2	1R128910386	Bypass servo motor	1R128910386 Bypass servo motor	$465.64	1	TO
3	MJA6510AA	Condensate drain tube assy	MJA6510AA Condensate drain tube assy	-	2	PE	Enquire
4	1R128910387	Servo motor, blower motor, RH	1R128910387 Servo motor, blower motor, RH	-	1	PE	Enquire
4	1R128910388	Servo motor, blower motor, LH	1R128910388 Servo motor, blower motor, LH	-	1	PE	Enquire
5	1R128910389	Fan, blower motor, RH	1R128910389 Fan, blower motor, RH	-	1	PE	Enquire
5	1R128910390	Fan, blower motor, LH	1R128910390 Fan, blower motor, LH	-	1	PE	Enquire
6	1R128910391	Motor, blower fan, RH	1R128910391 Motor, blower fan, RH	-	1	PE	Enquire
6	1R128910392	Motor, blower fan, LH	1R128910392 Motor, blower fan, LH	-	1	PE	Enquire
7	MJA6670AA	Air duct, face level centre	MJA6670AA Air duct, face level centre	-	1	PE	Enquire
8	1R128910393	Servo motor, defrost vent	1R128910393 Servo motor, defrost vent	-	1	PE	Enquire
9	1R128910394	Servo motor, face vent	1R128910394 Servo motor, face vent	$534.61	1	TO
10	1R12-89-10042	ASPIRATOR MOTOR	1R12-89-10042 ASPIRATOR MOTOR	$537.77	1	TO
11	1R12-89-10038	Housing, In-Car Temp Sensor	1R12-89-10038 Housing, In-Car Temp Sensor	$318.88	1	TO
12	1R12-89-10045	Grille, Aspirator	1R12-89-10045 Grille, Aspirator	$5.18	1	TO
13	3R12-895857-AA	EXTENSION HOSE ASPIRATOR TUBE	3R12-895857-AA EXTENSION HOSE ASPIRATOR TUBE	$2.23	1	TO
13	1R12-89-10039	DRAIN TUBE-ASP.MOTOR	1R12-89-10039 DRAIN TUBE-ASP.MOTOR	$3.33	1	TO
13	3R12895852AA	Tube, aspirator rework	3R12895852AA Tube, aspirator rework	-	1	PE	Enquire
14	1R12-89-10040	SOLAR SENSOR	1R12-89-10040 SOLAR SENSOR	$53.77	1	TO
15	1R12-89-10041	BEZEL-SOLAR SENSOR	1R12-89-10041 BEZEL-SOLAR SENSOR	$10.74	1	TO
16	1R12-89-10395	MTG BRKT-SENSOR	1R12-89-10395 MTG BRKT-SENSOR	$3.56	1	TO
17	1R12-89-10482	SENSOR-AMB AIR TEMP	1R12-89-10482 SENSOR-AMB AIR TEMP	$34.22	1	TO
18	1R12-89-10360	EVAPORATOR-AIR COND	1R12-89-10360 EVAPORATOR-AIR COND	$2,019.27	1	TO
19	1R12-89-10361	HEATER CORE ASSY	1R12-89-10361 HEATER CORE ASSY	$565.75	1	TO
20	1R128910362	Thermister, heater core outlet	1R128910362 Thermister, heater core outlet	-	1	PE	Enquire
21	1R128910363	Thermister, evaporator outlet	1R128910363 Thermister, evaporator outlet	-	1	PE	Enquire
22	1R128910364	Outlet pipe kit	1R128910364 Outlet pipe kit	-	1	PE	Enquire
