Wiring Assembly I/Panel

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Wiring Assembly I/Panel

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG43-14K024-AF RHD B&O FACIA HRN $963.55 To Order
Photo Part No Description Price (each) Stock
DD23-14B079-AC Harness Assy, Centre Stack $509.42 To Order
Photo Part No Description Price (each) Stock
8D33-9137-BA Harness Assembly, Passive Anti Theft System (PATS) Link $34.63 To Order
Photo Part No Description Price (each) Stock
CG43-14D454-BC Link Harness, Garmin Sat Nav $204.54 To Order
Photo Part No Description Price (each) Stock
9D33-14N003-AA Inline bracket, Instrument Panel (IP), RHS $25.93 To Order
Photo Part No Description Price (each) Stock
9D33-14N003-BB Inline bracket, Instrument Panel (IP), LHS $29.95 To Order
Photo Part No Description Price (each) Stock
707138 SCREW-M5 x 8 PAN HD $0.91 To Order

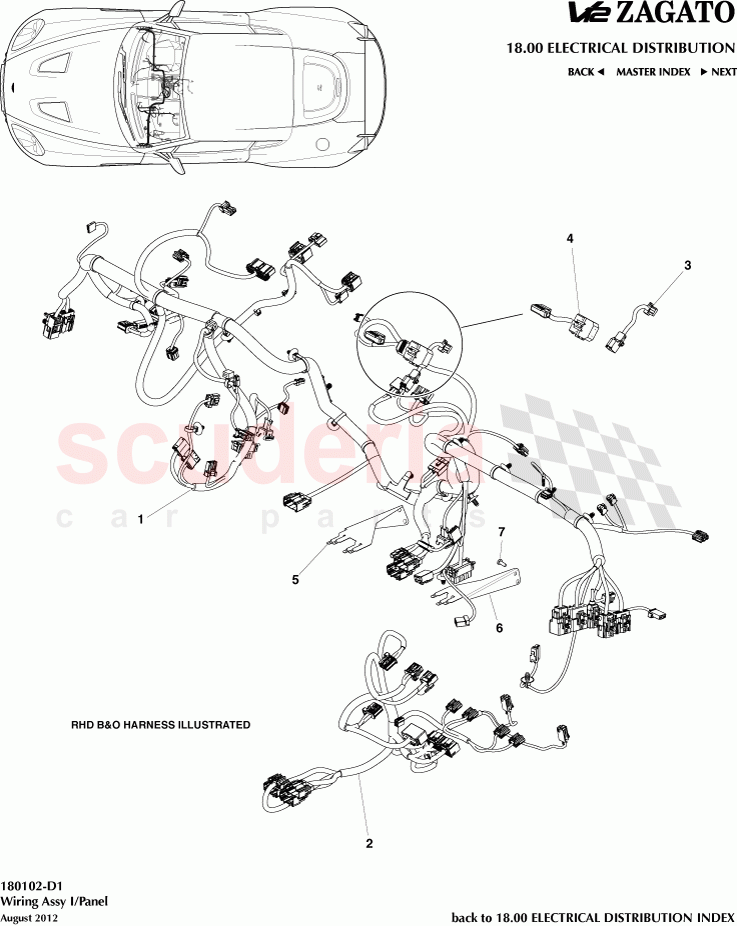

Wiring Assembly I/Panel of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG43-14K024-BD
Harness Assembly, Facia, RHD, Alpine
Non B&O 		- 1
PE
 Enquire
- DG43-14401-AF
LHD B&O FACIA HRNS
B&O 		$932.50 1
TO
- DG43-14401-BF
LHD ALPINE FACIA HRN
Non B&O 		$932.50 1
TO
1 DG43-14K024-AF
RHD B&O FACIA HRN
B&O 		$963.55 1
TO
2 DD23-14B079-AC
Harness Assy, Centre Stack 		$509.42 1
TO
3 8D33-9137-BA
Harness Assembly, Passive Anti Theft System (PATS) Link 		$34.63 1
TO
4 CG43-14D454-BC
Link Harness, Garmin Sat Nav 		$204.54 1
TO
5 9D33-14N003-AA
Inline bracket, Instrument Panel (IP), RHS
B&O 		$25.93 1
TO
6 9D33-14N003-BB
Inline bracket, Instrument Panel (IP), LHS
B&O 		$29.95 1
TO
7 707138
SCREW-M5 x 8 PAN HD
B&O 		$0.91 4
TO
