Wiring Assembly Rear End

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Wiring Assembly Rear End

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
DG33-7E443-AA Harness Assy, Manual Transmission $465.98 To Order
Photo Part No Description Price (each) Stock
CY83-15B484-AB Harness Assy, Rear Bumper $279.59 To Order
Photo Part No Description Price (each) Stock
CY83-14A227-AB Harness Assy, Boot Lid $155.43 To Order
Photo Part No Description Price (each) Stock
CY83-9137-AA Link Lead, Boot Lid to CHMSL $17.27 To Order
Photo Part No Description Price (each) Stock
77-84981-PK Tape, Anti Rattle Rear Quarter Wheel $31.59 To Order

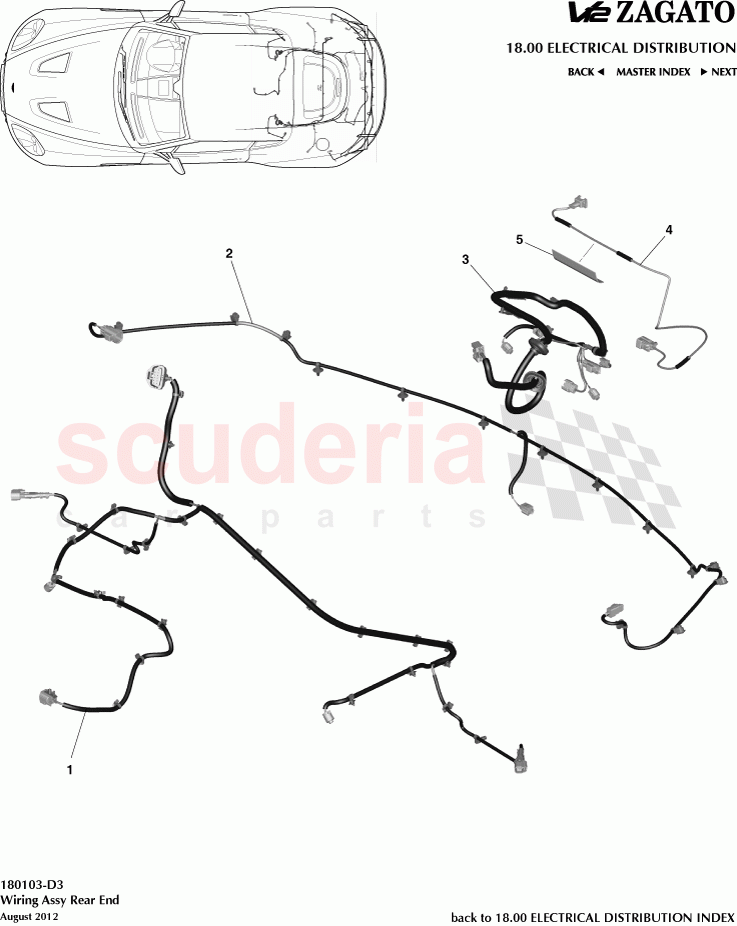

Wiring Assembly Rear End of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 DG33-7E443-AA
Harness Assy, Manual Transmission 		$465.98 1
TO
2 CY83-15B484-AB
Harness Assy, Rear Bumper 		$279.59 1
TO
3 CY83-14A227-AB
Harness Assy, Boot Lid 		$155.43 1
TO
4 CY83-9137-AA
Link Lead, Boot Lid to CHMSL 		$17.27 1
TO
5 77-84981-PK
Tape, Anti Rattle Rear Quarter Wheel 		$31.59 1
TO
