Aston Martin V12 Zagato - Air Con Lines and Fittings

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD23-19972-AA TUBE ASSY - AIRCON COMPRESSOR TO CONDENSOR $398.72 IN STOCK
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.68 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.42 IN STOCK
Photo Part No Description Price (each) Stock
AD23-19D719-AA Tube Assy, Condenser to Receiver Drier $190.46 IN STOCK
Photo Part No Description Price (each) Stock
4G43-19E891-AD Air Conditioning Drier $283.67 IN STOCK
Photo Part No Description Price (each) Stock
703903 Bolt, M6 x 30, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
AD23-6147X-AB Bracket, Aircon Electrical $32.62 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.10 IN STOCK
Photo Part No Description Price (each) Stock
702291 Clip, 11-18 x 6.5 x 7 $1.52 To Order
Photo Part No Description Price (each) Stock
4G43-89-10908-PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) $5.64 IN STOCK
Photo Part No Description Price (each) Stock
4G43-89-10910-PK O Rings-DB9 & V8 Condenser (Pack of 2) $5.74 To Order
Photo Part No Description Price (each) Stock
4G43-89-10912 O RING $6.50 IN STOCK
Photo Part No Description Price (each) Stock
AG43-19A705-AA Tube Assy, Evaporator Outlet $326.39 To Order
Photo Part No Description Price (each) Stock
AD23-19A705-CA Tube Assy, A/C Evaporator Outlet, Upper $259.73 To Order
Photo Part No Description Price (each) Stock
AG43-19A705-BA Tube Assy, A/C Evaporator Outlet, Upper $190.78 To Order
Photo Part No Description Price (each) Stock
AD23-19835-BA Tube, Aircon Dehydrator to Evaporator $294.38 To Order
Photo Part No Description Price (each) Stock
AD23-19835-AA Tube, Aircon Dehydrator to Evaporator $277.06 To Order
Photo Part No Description Price (each) Stock
4G43-4073A-AA CLAMP - LIQ $5.13 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $1.99 To Order
Photo Part No Description Price (each) Stock
4G43-65-10059-PK Firtree Clip, for pad wear lead (Pack of 100) $65.86 IN STOCK
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.37 To Order
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $2.11 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.20 IN STOCK
Photo Part No Description Price (each) Stock
1R12-89-10192 Switch, A/C High Pressure $555.94 To Order
Photo Part No Description Price (each) Stock
AG43-89-11295 SW ASY-A/C PRES CTOF $594.70 To Order
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.20 IN STOCK

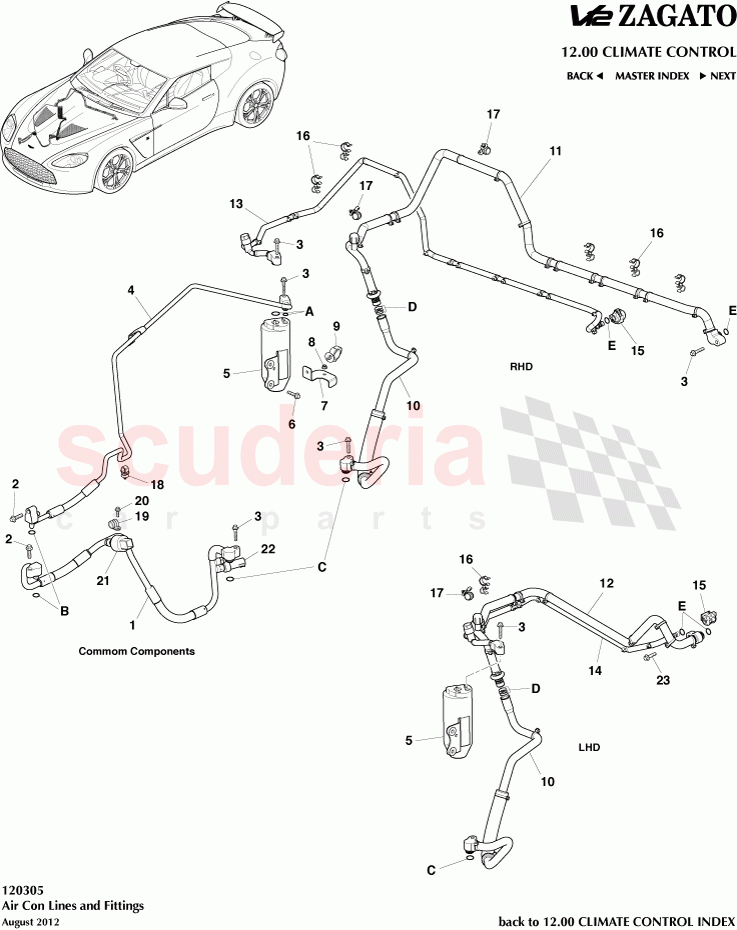

Air Con Lines and Fittings of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
A 4G43-89-10908-PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)
Pack of 2
IN STOCK 		$5.64 1
IN
B 4G43-89-10910-PK
O Rings-DB9 & V8 Condenser (Pack of 2)
Pack of 2 		$5.74 1
TO
D 4G43-89-10912
O RING
Pack of 3
IN STOCK 		$6.50 1
IN
E 4G43-89-10911-PK
O RINGS-DB9 EVAPORATOR-PACK OF 3
Pack of 3 		$14.17 1
TO
1 AD23-19972-AA
TUBE ASSY - AIRCON COMPRESSOR TO CONDENSOR
IN STOCK 		$398.72 1
IN
2 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE
IN STOCK 		$0.68 2
IN
3 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.42 5
IN
4 AD23-19D719-AA
Tube Assy, Condenser to Receiver Drier
IN STOCK 		$190.46 1
IN
5 4G43-19E891-AD
Air Conditioning Drier
IN STOCK 		$283.67 1
IN
6 703903
Bolt, M6 x 30, Hex Flange Head 		- 2
PE
 Enquire
7 AD23-6147X-AB
Bracket, Aircon Electrical 		$32.62 1
TO
8 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.10 1
IN
9 702291
Clip, 11-18 x 6.5 x 7 		$1.52 1
TO
10 AG43-19A705-AA
Tube Assy, Evaporator Outlet 		$326.39 1
TO
11 AD23-19A705-CA
Tube Assy, A/C Evaporator Outlet, Upper
RHD 		$259.73 1
TO
12 AG43-19A705-BA
Tube Assy, A/C Evaporator Outlet, Upper
LHD 		$190.78 1
TO
13 AD23-19835-BA
Tube, Aircon Dehydrator to Evaporator
RHD 		$294.38 1
TO
14 AD23-19835-AA
Tube, Aircon Dehydrator to Evaporator
LHD 		$277.06 1
TO
15 4G43-4073A-AA
CLAMP - LIQ 		$5.13 1
TO
16 701182
Clip, Pipe Swivel
RHD Qty 5, LHD Qty 2 		$1.99 A/R
TO
17 4G43-65-10059-PK
Firtree Clip, for pad wear lead (Pack of 100)
Pack of 100
IN STOCK 		$65.86 2
IN
18 701180
Clip, 14 x 4, Push In 		$1.37 1
TO
19 699634
P-Clip,13 x 15 x M6
IN STOCK 		$2.11 1
IN
20 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.20 1
IN
21 1R12-89-10192
Switch, A/C High Pressure 		$555.94 1
TO
22 AG43-89-11295
SW ASY-A/C PRES CTOF 		$594.70 1
TO
23 703025
Screw, M6 x 25, Hex Flange Head
LHD Only
IN STOCK 		$0.20 1
IN
