Fuel Pipes

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Fuel Pipes

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD43-9S284-AB TUBE ASSY FUEL SUPPLY AND VAPOUR $187.34 To Order
Photo Part No Description Price (each) Stock
7G43-9F911-AB TUBE-FUEL MANF S/PLY $431.27 To Order
Photo Part No Description Price (each) Stock
4G43-9294-AA Clip, Fuel Line to Engine $3.22 IN STOCK
Photo Part No Description Price (each) Stock
8D330210017 Clip & Clamp, 9mm x 15mm With Tether Enquire To Order

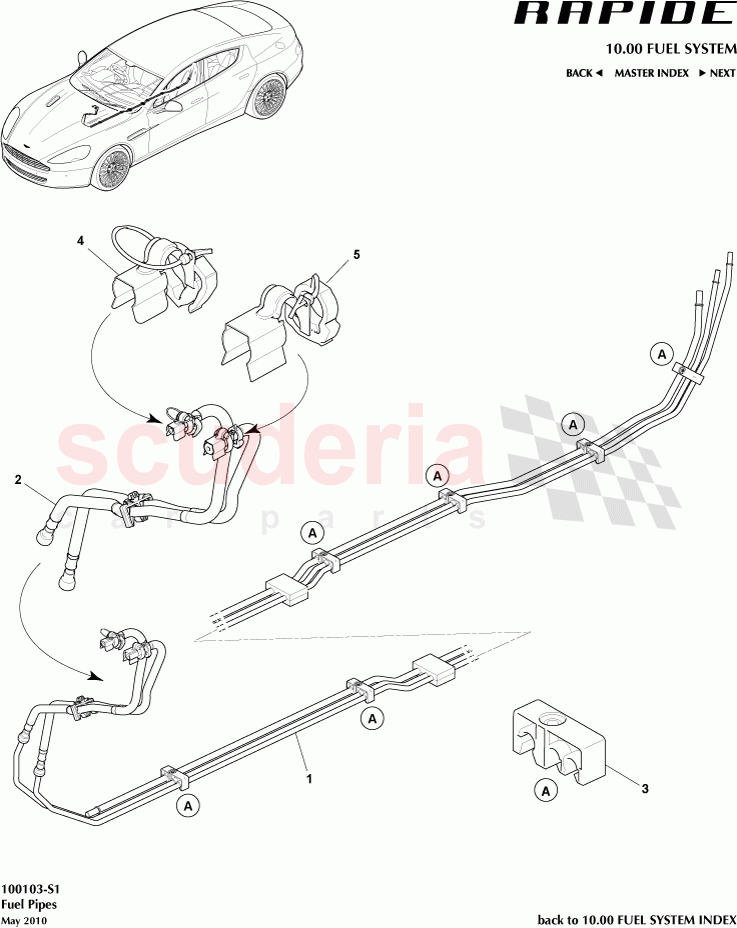

Fuel Pipes of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD43-9S284-AB
TUBE ASSY FUEL SUPPLY AND VAPOUR 		$187.34 1
TO
2 7G43-9F911-AB
TUBE-FUEL MANF S/PLY 		$431.27 1
TO
3 4G43-9294-AA
Clip, Fuel Line to Engine
IN STOCK 		$3.22 6
IN
4 8D330210017
Clip & Clamp, 9mm x 15mm With Tether 		- 1
PE
 Enquire
