Exhaust System (page 2) of Aston Martin Aston Martin Rapide

Aston Martin Rapide - Exhaust System (page 2)

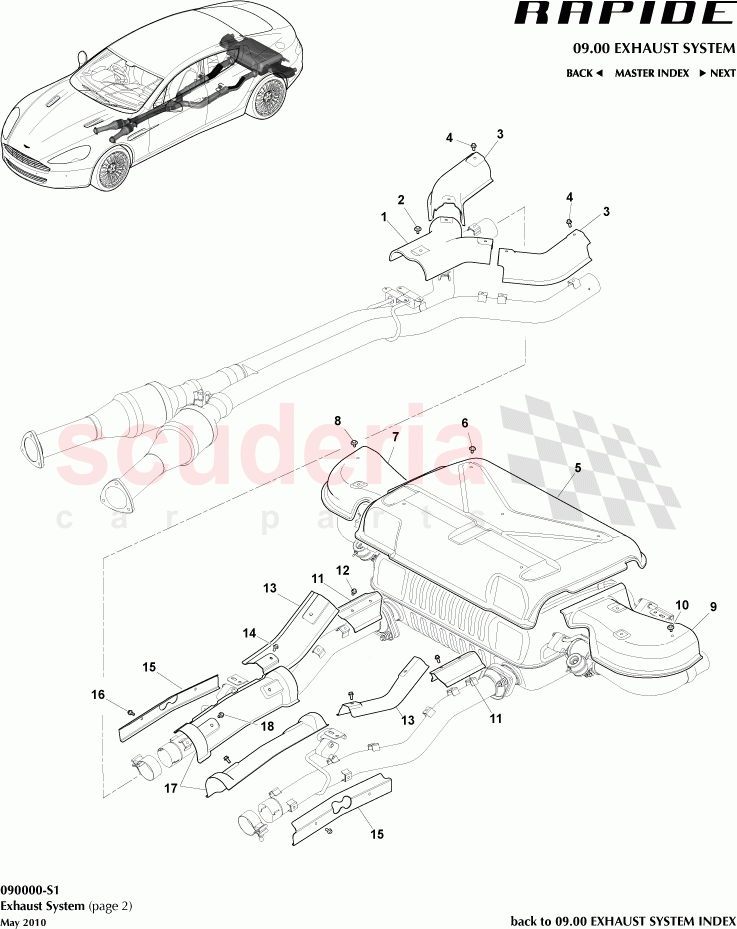

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43-5G221-EA	SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	$145.97	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43-5G221-AA	Shield Assy, Exhaust System, Rear Front	$191.44	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD435290AA	Heatshield, rear silencer centre	$192.62	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435290CB	Heatshield, rear silencer RH	$192.62	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD435290BB	Heatshield, rear silencer LH	$158.79	To Order

Photo	Part No	Description	Price (each)	Stock
	703752	Screw and Washer, M6 x 16	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43-5G221-DB	SHIELD ASSY EXHAUST SYSTEM REAR REAR	$108.80	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD43-5G221-CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	$199.76	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD43-5G221-FC	SHIELD ASSY EXHAUST SYSTEM REAR SIDE	$108.80	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FD33-5G221-BA	SHL ASY EXH SYS RR R	$195.43	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53-E804349-AA	M6 X 14 SCREW HEX HD	$0.71	IN STOCK

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
	1	AD43-5G221-EA	SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	AD43-5G221-EA SHIELD ASSY EXHAUST SYSTEM REAR CENTRE	$145.97	1	TO
	703752		SCREW AND WASHER, M6 X 16	from $1.37
2 Screw and Washer, M6 x 16 $1.37 3 TO 6 Screw and Washer, M6 x 16 $1.37 5 TO 8 Screw and Washer, M6 x 16 $1.37 3 TO 10 Screw and Washer, M6 x 16 $1.37 3 TO
	3	AD43-5G221-AA	Shield Assy, Exhaust System, Rear Front	AD43-5G221-AA Shield Assy, Exhaust System, Rear Front	$191.44	2	TO
	HY53-E804349-AA		M6 X 14 SCREW HEX HD	from $0.71
4 M6 X 14 SCREW HEX HD IN STOCK $0.71 4 IN 12 M6 X 14 SCREW HEX HD IN STOCK $0.71 4 IN 14 M6 X 14 SCREW HEX HD IN STOCK $0.71 4 IN 16 M6 X 14 SCREW HEX HD IN STOCK $0.71 4 IN 18 M6 X 14 SCREW HEX HD IN STOCK $0.71 4 IN
	5	AD435290AA	Heatshield, rear silencer centre	AD435290AA Heatshield, rear silencer centre	$192.62	1	TO
	7	AD435290CB	Heatshield, rear silencer RH	AD435290CB Heatshield, rear silencer RH	$192.62	1	TO
	9	AD435290BB	Heatshield, rear silencer LH	AD435290BB Heatshield, rear silencer LH	$158.79	1	TO
	11	AD43-5G221-DB	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD43-5G221-DB SHIELD ASSY EXHAUST SYSTEM REAR REAR	$108.80	2	TO
	13	AD43-5G221-CA	SHIELD ASSY EXHAUST SYSTEM REAR REAR	AD43-5G221-CA SHIELD ASSY EXHAUST SYSTEM REAR REAR	$199.76	2	TO
	15	AD43-5G221-FC	SHIELD ASSY EXHAUST SYSTEM REAR SIDE	AD43-5G221-FC SHIELD ASSY EXHAUST SYSTEM REAR SIDE	$108.80	2	TO
	17	FD33-5G221-BA	SHL ASY EXH SYS RR R	FD33-5G221-BA SHL ASY EXH SYS RR R	$195.43	2	TO
