Name: Fuel Tank
Rating: 4.3 (1 reviews)

Diagram
INFO

Fuel Tank of Aston Martin Aston Martin Rapide

Aston Martin Rapide - Fuel Tank

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD43-9K007-AD	FUEL TANK ASSEMBLY	$7,409.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-9074-EA	PLATE ASY FU TANK CV	$39.76	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-32133-BA	Clamp Plate, Fuel Tank	$16.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock

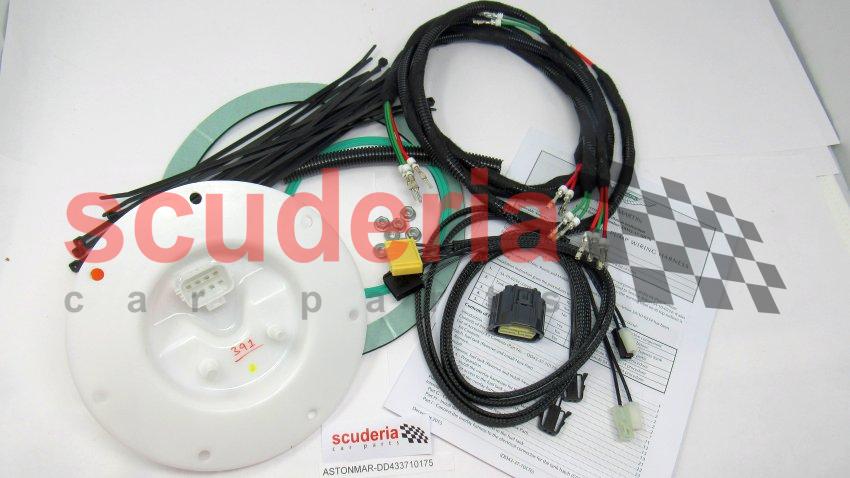

	DD43-37-10175	KIT - HARNESS - FUEL TANK	$291.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-9073-AA	Gasket, Fuel Tank Service Cover	$29.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD439D667BA	Tube assy, fuel vapour purge	$212.16	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439J280BA	Tube assy, fuel supply R	$56.05	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439J280AA	Tube assy, fuel supply L	$54.90	To Order

Photo	Part No	Description	Price (each)	Stock
	DD43-37-10175	KIT - HARNESS - FUEL TANK	$291.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-9294-AA	Clip, Fuel Line to Engine	$3.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD43-P9B154-BA	FUEL TANK FIXING BOLT ASSY	$4.34	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-482550-AA	FOAM PAD - TANK UPPER	$22.78	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28BB	Foam pad	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28AA	Insulating strip, rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43M2D28CB	Insulating strip, rubber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43-9H307-AB	PUMP AND RESERVOIR	$922.04	To Order

Photo	Part No	Description	Price (each)	Stock

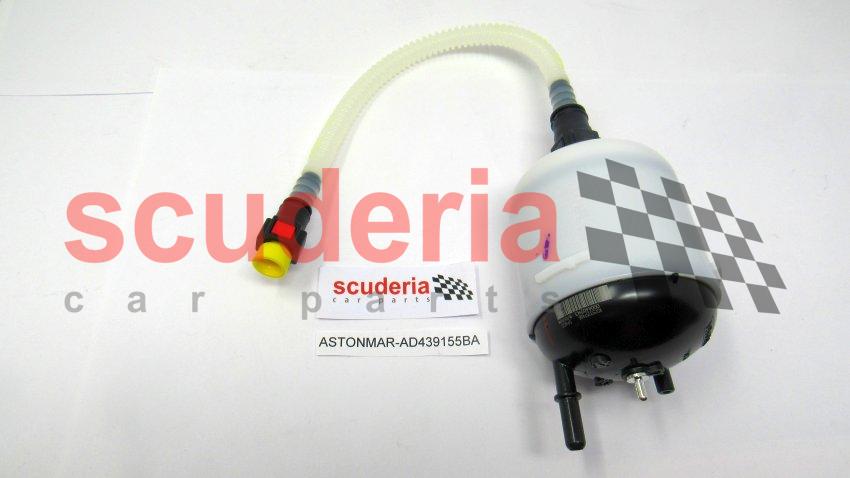

	AD43-9155-BA	Fuel Filter LH	$251.78	To Order

Photo	Part No	Description	Price (each)	Stock

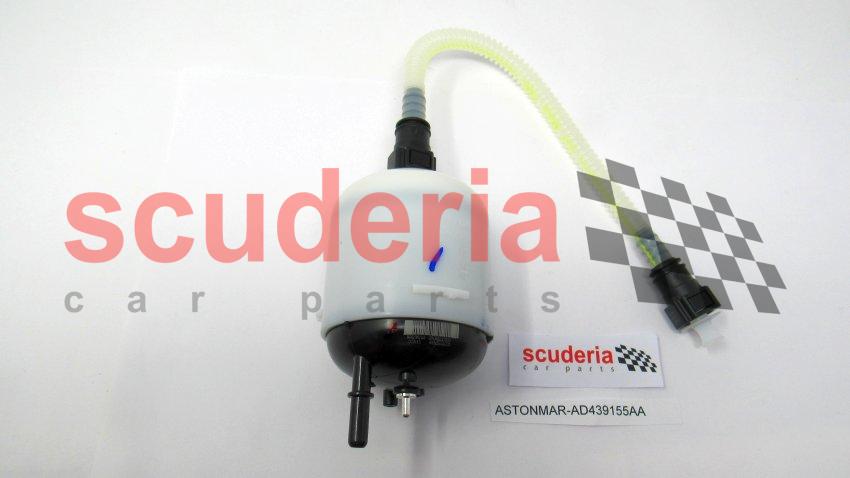

	AD43-9155-AA	Fuel Filter RH	$212.36	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439180AA	Bracket, filter assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M1A292BA	Bolt, M5 x 12, self locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439346DB	Bracket, fuel pump mounting RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439346CB	Bracket, fuel pump mounting LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD43-9275-AA	Sender Assy, fuel tank	$139.91	To Order

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	$3.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G43-9E275-AA	Sensor - Fuel Tank Sender	$110.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DD43-9K007-AC	FUEL TANK ASSY	$7,706.75	To Order

Photo	Part No	Description	Price (each)	Stock
	AD439A032AB	Shield, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W710409S300	Rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431861AA	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431861BA	Clip	Enquire	To Order

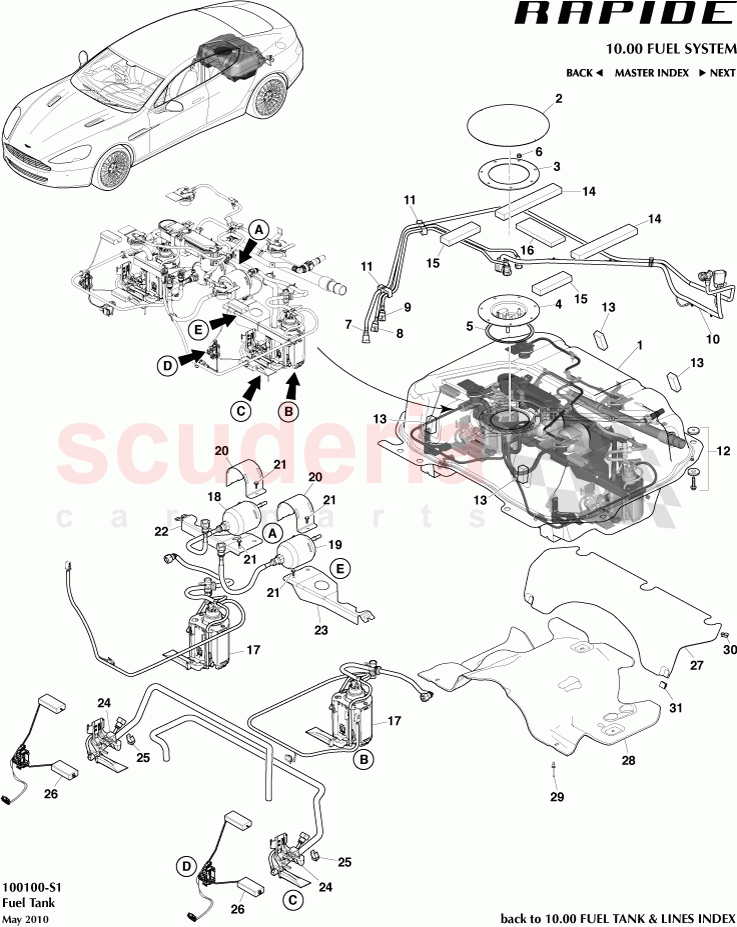

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	AD43-9K007-AD	FUEL TANK ASSEMBLY	AD43-9K007-AD FUEL TANK ASSEMBLY	$7,409.26	1	TO
	2	4G43-9074-EA	PLATE ASY FU TANK CV	4G43-9074-EA PLATE ASY FU TANK CV	$39.76	1	TO
	3	4G43-32133-BA	Clamp Plate, Fuel Tank IN STOCK	4G43-32133-BA Clamp Plate, Fuel Tank IN STOCK	$16.34	1	IN
	DD43-37-10175		KIT - HARNESS - FUEL TANK	from $291.68
4 KIT - HARNESS - FUEL TANK IN STOCK $291.68 1 IN 10 KIT - HARNESS - FUEL TANK IN STOCK $291.68 1 IN
	5	4G43-9073-AA	Gasket, Fuel Tank Service Cover IN STOCK	4G43-9073-AA Gasket, Fuel Tank Service Cover Replace each time Cover Plate is removed. IN STOCK	$29.38	1	IN
	6	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	$0.56	8	IN
	7	AD439D667BA	Tube assy, fuel vapour purge	AD439D667BA Tube assy, fuel vapour purge	$212.16	1	TO
	8	AD439J280BA	Tube assy, fuel supply R	AD439J280BA Tube assy, fuel supply R	$56.05	1	TO
	9	AD439J280AA	Tube assy, fuel supply L	AD439J280AA Tube assy, fuel supply L	$54.90	1	TO
	11	4G43-9294-AA	Clip, Fuel Line to Engine IN STOCK	4G43-9294-AA Clip, Fuel Line to Engine IN STOCK	$3.22	2	IN
	12	AD43-P9B154-BA	FUEL TANK FIXING BOLT ASSY	AD43-P9B154-BA FUEL TANK FIXING BOLT ASSY	$4.34	7	TO
	13	4G43-482550-AA	FOAM PAD - TANK UPPER	4G43-482550-AA FOAM PAD - TANK UPPER	$22.78	4	TO
	14	AD43M2D28BB	Foam pad	AD43M2D28BB Foam pad	-	1	PE	Enquire
	15	AD43M2D28AA	Insulating strip, rubber	AD43M2D28AA Insulating strip, rubber -use item 14	-	2	PE	Enquire
	16	AD43M2D28CB	Insulating strip, rubber	AD43M2D28CB Insulating strip, rubber	-	1	PE	Enquire
	17	AD43-9H307-AB	PUMP AND RESERVOIR	AD43-9H307-AB PUMP AND RESERVOIR	$922.04	2	TO
	18	AD43-9155-BA	Fuel Filter LH	AD43-9155-BA Fuel Filter LH -LHS	$251.78	1	TO
	19	AD43-9155-AA	Fuel Filter RH	AD43-9155-AA Fuel Filter RH -RHS	$212.36	1	TO
	20	8G439180AA	Bracket, filter assy	8G439180AA Bracket, filter assy	-	2	PE	Enquire
	21	4G43M1A292BA	Bolt, M5 x 12, self locking	4G43M1A292BA Bolt, M5 x 12, self locking	-	1	PE	Enquire
	22	AD439346DB	Bracket, fuel pump mounting RH	AD439346DB Bracket, fuel pump mounting RH	-	1	PE	Enquire
	23	AD439346CB	Bracket, fuel pump mounting LH	AD439346CB Bracket, fuel pump mounting LH	-	1	PE	Enquire
	24	AD43-9275-AA	Sender Assy, fuel tank	AD43-9275-AA Sender Assy, fuel tank	$139.91	2	TO
	25	701181	Clip, 16 x 6.5 x 1.5-6 IN STOCK	701181 Clip, 16 x 6.5 x 1.5-6 IN STOCK	$3.11	2	IN
	26	4G43-9E275-AA	Sensor - Fuel Tank Sender IN STOCK	4G43-9E275-AA Sensor - Fuel Tank Sender IN STOCK	$110.74	2	IN
	27	DD43-9K007-AC	FUEL TANK ASSY	DD43-9K007-AC FUEL TANK ASSY	$7,706.75	2	TO
	28	AD439A032AB	Shield, fuel tank	AD439A032AB Shield, fuel tank	-	1	PE	Enquire
	29	W710409S300	Rivet	W710409S300 Rivet	-	3	PE	Enquire
	30	AD431861AA	Clip	AD431861AA Clip	-	4	PE	Enquire
	31	AD431861BA	Clip	AD431861BA Clip	-	2	PE	Enquire
