Fuel Filler Cap & Pipe Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Fuel Filler Cap & Pipe Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
GG33-9030-AA CAP FUEL TANK $282.49 To Order
Photo Part No Description Price (each) Stock
4G43-8703-AA FUEL FILLER PIPE GAITER $22.32 IN STOCK
Photo Part No Description Price (each) Stock
4G43-C28670-BC PNL FU/FILL HSG $114.30 To Order
Photo Part No Description Price (each) Stock
12023-03-8452-AB Tube, Oil Breather- Manifold to RH Intake $466.24 To Order
Photo Part No Description Price (each) Stock
4G43-9A317-AA Clip, fuel fill overflow pipe $4.90 To Order
Photo Part No Description Price (each) Stock
AY93-9032-AA Pipe Assy, fuel tank filler $1,273.67 To Order

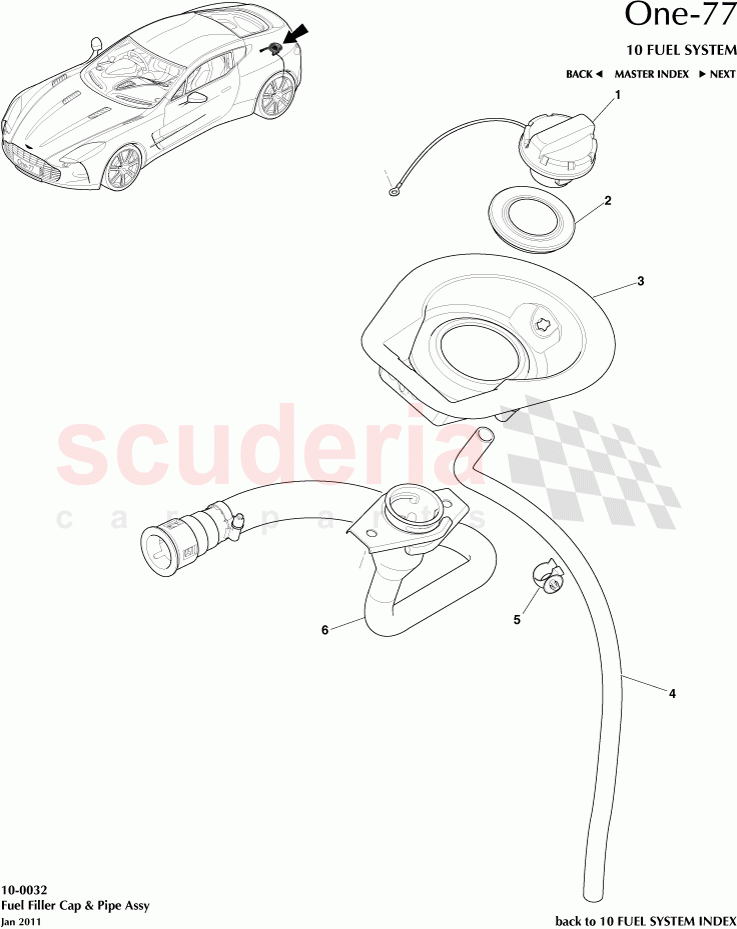

Fuel Filler Cap & Pipe Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 GG33-9030-AA
CAP FUEL TANK 		$282.49 1
TO
2 4G43-8703-AA
FUEL FILLER PIPE GAITER
IN STOCK 		$22.32 1
IN
3 4G43-C28670-BC
PNL FU/FILL HSG 		$114.30 1
TO
4 12023-03-8452-AB
Tube, Oil Breather- Manifold to RH Intake 		$466.24 1
TO
5 4G43-9A317-AA
Clip, fuel fill overflow pipe 		$4.90 1
TO
6 AY93-9032-AA
Pipe Assy, fuel tank filler 		$1,273.67 1
TO
