Exhaust Manifold Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Exhaust Manifold Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-03-8794-AF Manifold, Exhaust LH Enquire To Order
Photo Part No Description Price (each) Stock
12023-03-8795-AF Manifold, Exhaust RH Enquire To Order
Photo Part No Description Price (each) Stock
4G43-35-10003 Gasket Exhaust Manifold $60.58 To Order
Photo Part No Description Price (each) Stock
AY93-6K064-AA Stud, M8x36.5 Enquire To Order
Photo Part No Description Price (each) Stock
697775-PK Nut M8 Hex Flange Head (Pack of 10) $40.05 To Order
Photo Part No Description Price (each) Stock
AY93-8287-BA Clamp, Exhaust 00-00mm $487.09 To Order

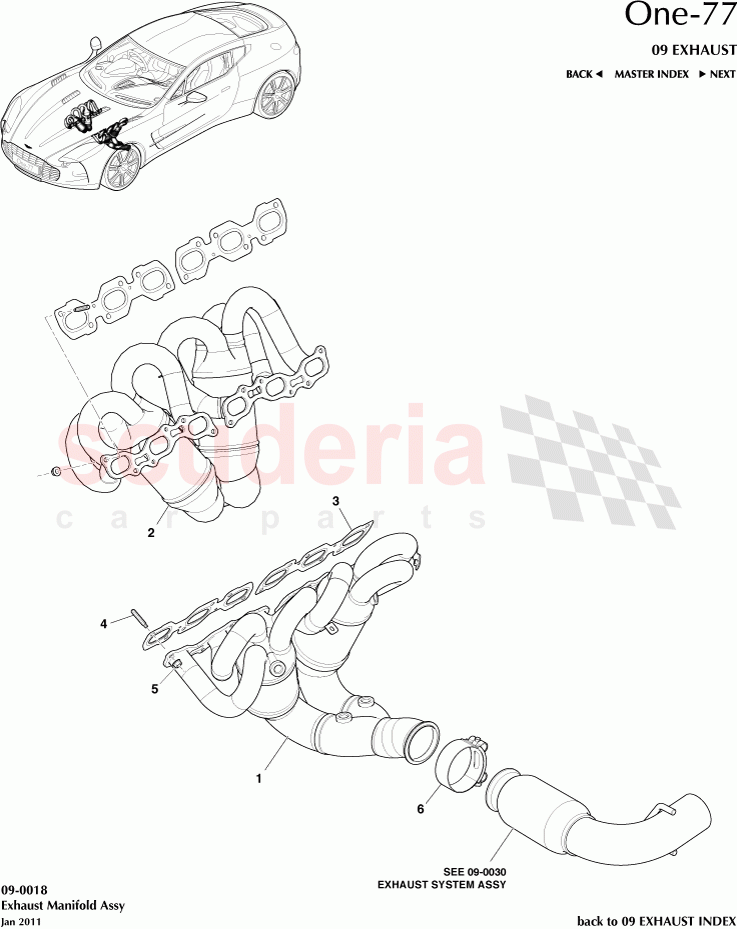

Exhaust Manifold Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 703704
Stud, M8 x 13.6+16, Hex Head
10 per Manifold 		$10.27 20
TO
1 12023-03-8794-AF
Manifold, Exhaust LH 		- 1
PE
 Enquire
2 12023-03-8795-AF
Manifold, Exhaust RH 		- 1
PE
 Enquire
3 4G43-35-10003
Gasket Exhaust Manifold 		$60.58 4
TO
4 AY93-6K064-AA
Stud, M8x36.5
2 per Manifold 		- 4
PE
 Enquire
5 697775-PK
Nut M8 Hex Flange Head (Pack of 10)
12 per Manifold 		$40.05 24
TO
6 AY93-8287-BA
Clamp, Exhaust 00-00mm 		$487.09 2
TO
