Carbon Canister & Fuel Lines Assembly (Page 1)

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Carbon Canister & Fuel Lines Assembly (Page 1)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43-34-10937 Valve Fuel/ Vapour Purge Electronic $81.94 IN STOCK
Photo Part No Description Price (each) Stock
12023-03-8494-AB Bracket, valve and harness $357.44 To Order
Photo Part No Description Price (each) Stock
AY93-9D667-BB Tube Assy, fuel vapor strg constr prg inlet front $267.28 To Order
Photo Part No Description Price (each) Stock
AY93-9D667-DB Tube Assy, fuel vapor strg constr prg inlet $270.40 To Order
Photo Part No Description Price (each) Stock
AY93-9F911-BB Tube Assy, fuel main supply, RH $2,284.64 To Order
Photo Part No Description Price (each) Stock
AY93-9F911-AB Tube Assy, fuel main supply, LH $2,284.64 To Order
Photo Part No Description Price (each) Stock
8D330210017 Clip & Clamp, 9mm x 15mm With Tether Enquire To Order
Photo Part No Description Price (each) Stock
7X43-9294-AA CLIP & CLAMP- 12.5mm x 15mm WITH TETHER $3.68 To Order
Photo Part No Description Price (each) Stock
AY93-9D667-AA Tube Assy, fuel vapor strg constr prg inlet $208.86 To Order
Photo Part No Description Price (each) Stock
AY93-9S284-AA Tube Assy, fuel supply and vaper $1,013.98 To Order
Photo Part No Description Price (each) Stock
4G43-9293-AA Clip Enquire To Order

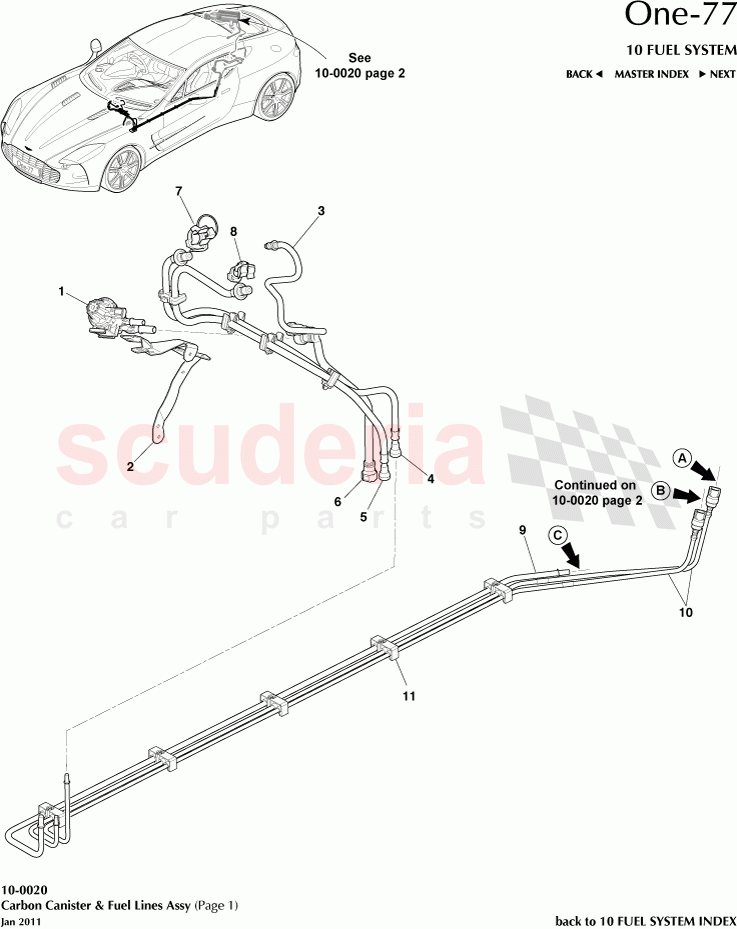

Carbon Canister & Fuel Lines Assembly (Page 1) of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43-34-10937
Valve Fuel/ Vapour Purge Electronic
IN STOCK 		$81.94 1
IN
2 12023-03-8494-AB
Bracket, valve and harness 		$357.44 1
TO
3 AY93-9D667-BB
Tube Assy, fuel vapor strg constr prg inlet front 		$267.28 1
TO
4 AY93-9D667-DB
Tube Assy, fuel vapor strg constr prg inlet 		$270.40 1
TO
5 AY93-9F911-BB
Tube Assy, fuel main supply, RH
includes 2 clips 		$2,284.64 1
TO
6 AY93-9F911-AB
Tube Assy, fuel main supply, LH
includes 2 clips 		$2,284.64 1
TO
7 8D330210017
Clip & Clamp, 9mm x 15mm With Tether 		- 1
PE
 Enquire
8 7X43-9294-AA
CLIP & CLAMP- 12.5mm x 15mm WITH TETHER 		$3.68 1
TO
9 AY93-9D667-AA
Tube Assy, fuel vapor strg constr prg inlet 		$208.86 1
TO
10 AY93-9S284-AA
Tube Assy, fuel supply and vaper
includes 3 clips 		$1,013.98 1
TO
11 4G43-9293-AA
Clip 		- 2
PE
 Enquire
