Hvac Air Intake Assembly

Aston Martin One-77

Find Your Part

Aston Martin One-77 - HVAC Air Intake Assembly

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-03-8064-AD Duct, HVAC, LHD $7,770.82 To Order
Photo Part No Description Price (each) Stock
12023-03-8274-AA Grill, HVAC Intake, LHD $1,631.90 To Order
Photo Part No Description Price (each) Stock
12023-03-8536-AD Tube, HVAC Drain, LHD $435.19 To Order
Photo Part No Description Price (each) Stock
NSS  Seat Belt Loops Frt/ Rear and Left/Right Enquire To Order
Photo Part No Description Price (each) Stock
4G43-18A660-BA DUCT - HEATER AIR INLET $91.46 To Order
Photo Part No Description Price (each) Stock
703085 Screw M6x12 PC TI8 $0.81 IN STOCK

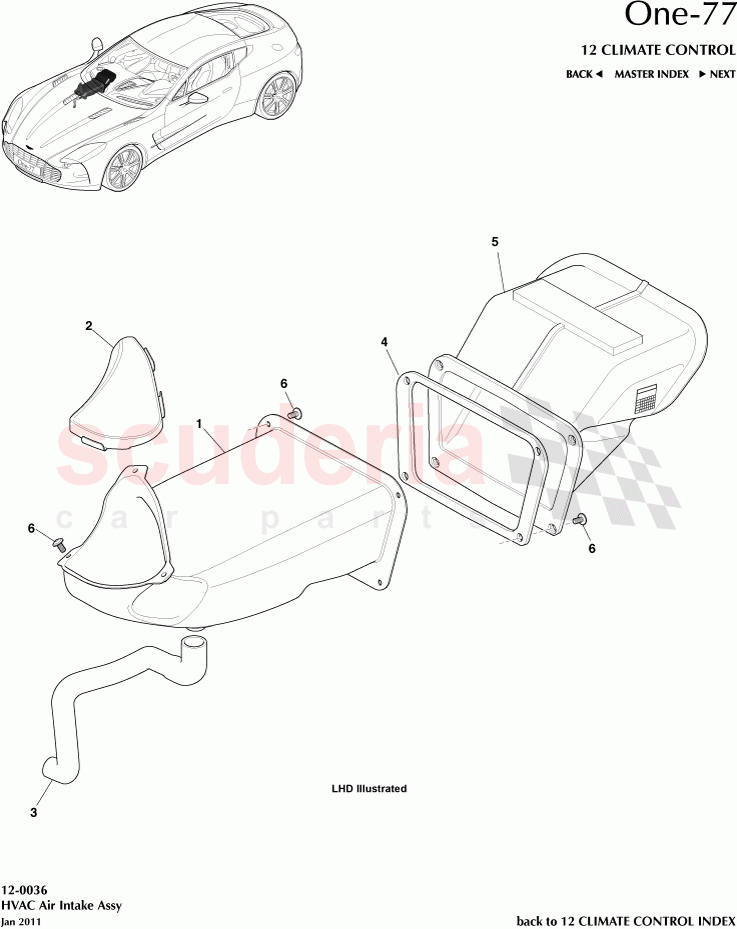

HVAC Air Intake Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 12023-03-8065-AA
Duct, HVAC, RHD 		$7,770.82 1
TO
- 12023-03-8275-AA
Grill, HVAC Intake, RHD 		$792.64 1
TO
- 12023-03-8537-AA
Tube, HVAC Drain, RHD 		- 1
PE
 Enquire
1 12023-03-8064-AD
Duct, HVAC, LHD 		$7,770.82 1
TO
2 12023-03-8274-AA
Grill, HVAC Intake, LHD 		$1,631.90 1
TO
3 12023-03-8536-AD
Tube, HVAC Drain, LHD 		$435.19 1
TO
4 NSS
 Seat Belt Loops Frt/ Rear and Left/Right 		- 1
PE
 Enquire
5 4G43-18A660-BA
DUCT - HEATER AIR INLET 		$91.46 1
TO
6 703085
Screw M6x12 PC TI8
IN STOCK 		$0.81 11
IN
