Air Distribution Components

Aston Martin One-77

Find Your Part

Aston Martin One-77 - Air Distribution Components

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023-14-6000-AG Air Duct, IP Centre Outlet $634.46 To Order
Photo Part No Description Price (each) Stock
12023-14-6814-AA Duct EOD Assy, RH Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6815-AA Duct EOD Assy, LH Enquire To Order
Photo Part No Description Price (each) Stock
701157-PK Screw & Washer 4.2 x 16 (Pack of 10) $2.65 IN STOCK
Photo Part No Description Price (each) Stock
8D33-046B30-BB Register Assembly, RH, Iridium Silver $145.97 To Order
Photo Part No Description Price (each) Stock
8D33-046B31-BB Register Assembly, LH, Iridium Silver $145.97 To Order
Photo Part No Description Price (each) Stock
704509 Screw M4x8 Pan hd Enquire To Order
Photo Part No Description Price (each) Stock
AY93-24874-BA Cheater Assy, RHS Enquire To Order
Photo Part No Description Price (each) Stock
AY93-24874-AA Cheater Assy, LHS Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6005-AB Tube, IP Front Side Duct, RH $263.31 To Order
Photo Part No Description Price (each) Stock
12023-14-6004-AC Tube, IP Front Side Duct, LH $263.31 To Order
Photo Part No Description Price (each) Stock
704509 Screw M4x8 Pan hd Enquire To Order
Photo Part No Description Price (each) Stock
12023-14-6695-AB Filler Panel, Centre Register Enquire To Order
Photo Part No Description Price (each) Stock
8D33-046B30-BB Register Assembly, RH, Iridium Silver $145.97 To Order
Photo Part No Description Price (each) Stock
8D33-046B31-BB Register Assembly, LH, Iridium Silver $145.97 To Order

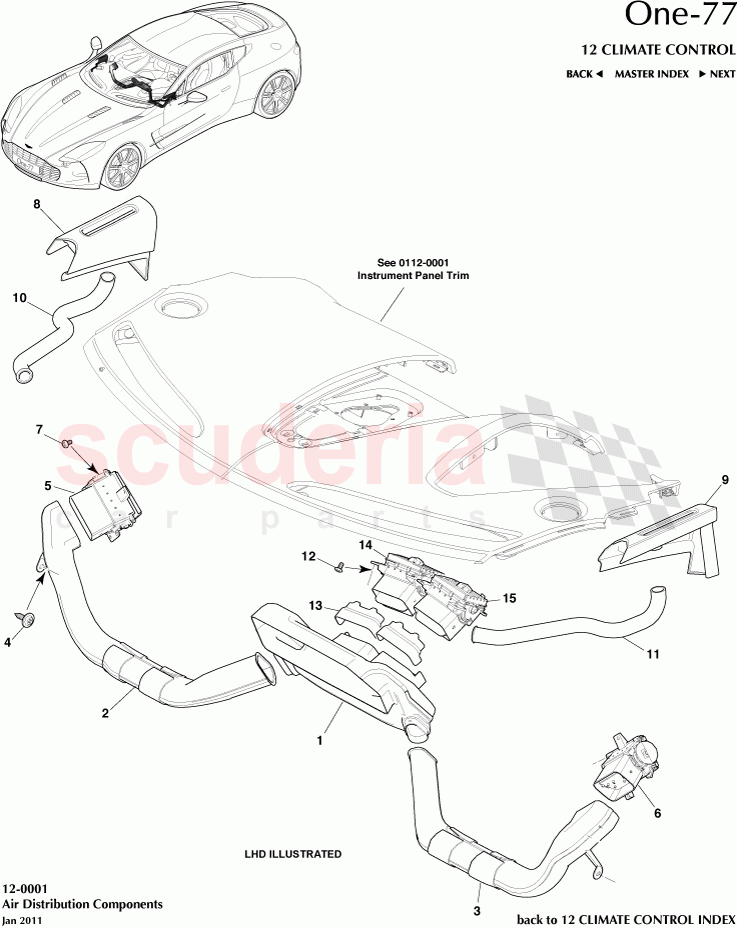

Air Distribution Components of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023-14-6000-AG
Air Duct, IP Centre Outlet 		$634.46 1
TO
2 12023-14-6814-AA
Duct EOD Assy, RH 		- 1
PE
 Enquire
3 12023-14-6815-AA
Duct EOD Assy, LH 		- 1
PE
 Enquire
4 701157-PK
Screw & Washer 4.2 x 16 (Pack of 10)
IN STOCK 		$2.65 2
IN

8D33-046B30-BB

REGISTER ASSEMBLY, RH, IRIDIUM SILVER

from $145.97

8D33-046B31-BB

REGISTER ASSEMBLY, LH, IRIDIUM SILVER

from $145.97

704509

SCREW M4X8 PAN HD

 -
8 AY93-24874-BA
Cheater Assy, RHS 		- 1
PE
 Enquire
9 AY93-24874-AA
Cheater Assy, LHS 		- 1
PE
 Enquire
10 12023-14-6005-AB
Tube, IP Front Side Duct, RH 		$263.31 1
TO
11 12023-14-6004-AC
Tube, IP Front Side Duct, LH 		$263.31 1
TO
13 12023-14-6695-AB
Filler Panel, Centre Register 		- 2
PE
 Enquire
