Name: Wiper Arm & Blade Assembly
Rating: 4.6 (1 reviews)

Find Your Part

Diagram
INFO

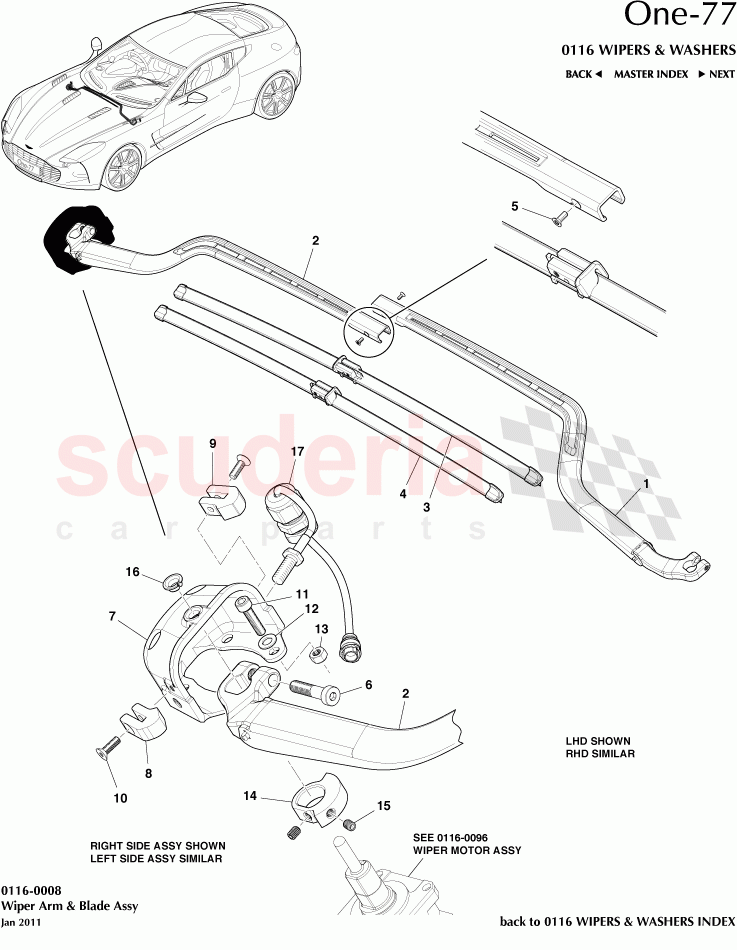

Wiper Arm & Blade Assembly of Aston Martin Aston Martin One-77

Aston Martin One-77 - Wiper Arm & Blade Assembly

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023-09-1362-AG	WPR ARM ASY DRV	$10,959.88	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1364-AF	Arm assy, Windshield Wiper, Passenger side LHD	$3,164.00	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1052-AF	Blade assy, Windshield Wiper, Driver side, LHD	$86.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1054-AF	Blade assy, Windshield Wiper, Passenger side, LHD	$86.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-6138	Screw M4x10 torx c/sunk hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51040-080-035	Bolt M8x35 hex socket thin hd Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1026-AH	Bracket, Retaining- Wiper Arm Position Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1148-AD	Hard stop, Windshield Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1228-AC	Hard stop Upper, Windshield Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51060-050-016	Screw M5x16 hex socket c/sunk hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51050-060-025	Bolt M6x25 Socket hd Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51416-060-001	M6 Washer, Flat Type Z ID6.4xOD12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51729-060-001	Nut M6 hex, nylon insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1022-AG	Trigger ring, Wiper Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51260-060-008	Screw M6x8 hex socket set, cup point	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1050-AA	Bushing, Windshield Wiper Arm Hub	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023-09-1351-AD	Sensor, Windshield Wiper Arm Trigger RH	$4,630.63	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
-	12023-09-1363-AA	Arm assy, Windshield Wiper, Driver side RHD	12023-09-1363-AA Arm assy, Windshield Wiper, Driver side RHD	-	1	PE	Enquire
-	12023-09-1365-AA	Arm assy, Windshield Wiper, Passenger side RHD	12023-09-1365-AA Arm assy, Windshield Wiper, Passenger side RHD	-	1	PE	Enquire
-	AY93-37-10102	Blade assy, Windshield Wiper, Driver side, RHD	AY93-37-10102 Blade assy, Windshield Wiper, Driver side, RHD	$191.22	1	TO
-	AY93-37-10103	Blade assy, Windshield Wiper, Passenger side, RHD	AY93-37-10103 Blade assy, Windshield Wiper, Passenger side, RHD	$191.22	1	TO
-	12023-09-1350-AD	Sensor, Windshield Wiper Arm Trigger LH	12023-09-1350-AD Sensor, Windshield Wiper Arm Trigger LH	$5,996.22	1	TO
1	12023-09-1362-AG	WPR ARM ASY DRV	12023-09-1362-AG WPR ARM ASY DRV	$10,959.88	1	TO
2	12023-09-1364-AF	Arm assy, Windshield Wiper, Passenger side LHD	12023-09-1364-AF Arm assy, Windshield Wiper, Passenger side LHD	$3,164.00	1	TO
3	12023-09-1052-AF	Blade assy, Windshield Wiper, Driver side, LHD	12023-09-1052-AF Blade assy, Windshield Wiper, Driver side, LHD	$86.41	1	TO
4	12023-09-1054-AF	Blade assy, Windshield Wiper, Passenger side, LHD	12023-09-1054-AF Blade assy, Windshield Wiper, Passenger side, LHD	$86.41	1	TO
5	12023-09-6138	Screw M4x10 torx c/sunk hd	12023-09-6138 Screw M4x10 torx c/sunk hd 2 per Blade	-	4	PE	Enquire
6	51040-080-035	Bolt M8x35 hex socket thin hd Cap	51040-080-035 Bolt M8x35 hex socket thin hd Cap 1 per Arm assy	-	2	PE	Enquire
7	12023-09-1026-AH	Bracket, Retaining- Wiper Arm Position Sensor	12023-09-1026-AH Bracket, Retaining- Wiper Arm Position Sensor	-	2	PE	Enquire
8	12023-09-1148-AD	Hard stop, Windshield Wiper Arm	12023-09-1148-AD Hard stop, Windshield Wiper Arm 1 per Retaining Bracket	-	2	PE	Enquire
9	12023-09-1228-AC	Hard stop Upper, Windshield Wiper Arm	12023-09-1228-AC Hard stop Upper, Windshield Wiper Arm 1 per Retaining Bracket	-	2	PE	Enquire
10	51060-050-016	Screw M5x16 hex socket c/sunk hd	51060-050-016 Screw M5x16 hex socket c/sunk hd 1 per Hard Stop	-	4	PE	Enquire
11	51050-060-025	Bolt M6x25 Socket hd Cap	51050-060-025 Bolt M6x25 Socket hd Cap 4 per Retaining Bracket	-	8	PE	Enquire
12	51416-060-001	M6 Washer, Flat Type Z ID6.4xOD12	51416-060-001 M6 Washer, Flat Type Z ID6.4xOD12	-	8	PE	Enquire
13	51729-060-001	Nut M6 hex, nylon insert	51729-060-001 Nut M6 hex, nylon insert 4 per Retaing Bracket	-	8	PE	Enquire
14	12023-09-1022-AG	Trigger ring, Wiper Arm	12023-09-1022-AG Trigger ring, Wiper Arm 1 per Arm assy	-	2	PE	Enquire
15	51260-060-008	Screw M6x8 hex socket set, cup point	51260-060-008 Screw M6x8 hex socket set, cup point 2 per Trigger ring	-	4	PE	Enquire
16	12023-09-1050-AA	Bushing, Windshield Wiper Arm Hub	12023-09-1050-AA Bushing, Windshield Wiper Arm Hub 1 per Wiper Arm Hub	-	2	PE	Enquire
17	12023-09-1351-AD	Sensor, Windshield Wiper Arm Trigger RH	12023-09-1351-AD Sensor, Windshield Wiper Arm Trigger RH	$4,630.63	1	TO
