Aston Martin Cygnet - Engine & Transmission Mounts- MANUAL

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12305-47021 Insulator Sub-assy, Engine Mounting Enquire To Order
Photo Part No Description Price (each) Stock
94151-21041 Nut, Flange $2.06 To Order
Photo Part No Description Price (each) Stock
90105-10469 Bolt, Flange $2.50 To Order
Photo Part No Description Price (each) Stock
90116-10230 Bolt, Stud $3.31 To Order
Photo Part No Description Price (each) Stock
90116-10216 Bolt, Stud $3.31 To Order
Photo Part No Description Price (each) Stock
90119-10866 Bolt, with Washer $2.06 To Order
Photo Part No Description Price (each) Stock
12372-47051 Insulator, Engine Mounting LH Enquire To Order
Photo Part No Description Price (each) Stock
90119-10866 Bolt, with Washer $2.06 To Order
Photo Part No Description Price (each) Stock
90105-10550 Bolt, Flange $5.84 To Order
Photo Part No Description Price (each) Stock
90178-10029 Nut, Flange $2.06 To Order
Photo Part No Description Price (each) Stock
90105-10494 Bolt, Flange $2.06 To Order
Photo Part No Description Price (each) Stock
12325-47060 Bracket, Engine Mounting LH Enquire To Order
Photo Part No Description Price (each) Stock
12363-47010 Rod, Engine Moving Control Enquire To Order
Photo Part No Description Price (each) Stock
90119-14139 Bolt, with Washer $8.80 To Order
Photo Part No Description Price (each) Stock
12315-47050 Bracket, Engine Mounting, RH Enquire To Order
Photo Part No Description Price (each) Stock
91551-80840 Bolt, Flange, A805 $2.40 To Order
Photo Part No Description Price (each) Stock
91552-81080 Bolt, Flange $3.31 To Order
Photo Part No Description Price (each) Stock
12313-40030 Bracket, Engine Moving Control Rod Enquire To Order
Photo Part No Description Price (each) Stock
12365-40020 Cover, Engine Moving Control Rod, Cold Climate Spec Enquire To Order
Photo Part No Description Price (each) Stock
90105-10538 Bolt, Flange $3.31 To Order
Photo Part No Description Price (each) Stock
90105-14178 Bolt, Flange $7.50 To Order
Photo Part No Description Price (each) Stock
91552-K1025 Bolt, Flange $2.01 To Order

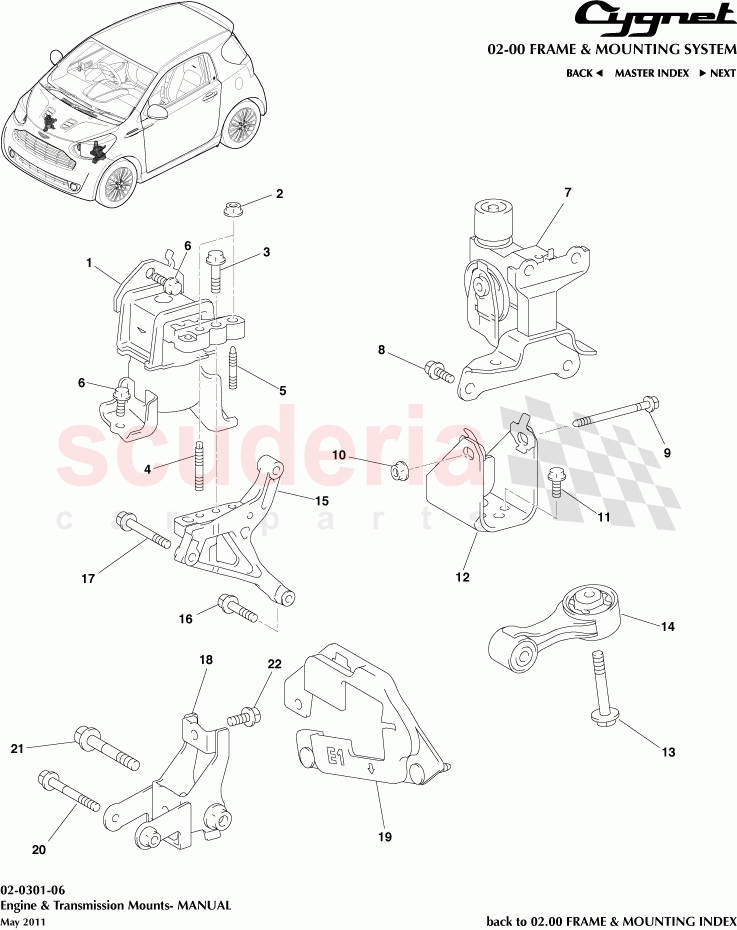

Engine & Transmission Mounts- MANUAL of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12305-47021
Insulator Sub-assy, Engine Mounting 		- 1
PE
 Enquire
2 94151-21041
Nut, Flange 		$2.06 2
TO
3 90105-10469
Bolt, Flange 		$2.50 1
TO
4 90116-10230
Bolt, Stud 		$3.31 1
TO
5 90116-10216
Bolt, Stud 		$3.31 1
TO

90119-10866

BOLT, WITH WASHER

from $2.06

7 12372-47051
Insulator, Engine Mounting LH 		- 3
PE
 Enquire
9 90105-10550
Bolt, Flange 		$5.84 1
TO
10 90178-10029
Nut, Flange 		$2.06 1
TO
11 90105-10494
Bolt, Flange 		$2.06 4
TO
12 12325-47060
Bracket, Engine Mounting LH 		- 4
PE
 Enquire
13 12363-47010
Rod, Engine Moving Control 		- 1
PE
 Enquire
14 90119-14139
Bolt, with Washer 		$8.80 1
TO
15 12315-47050
Bracket, Engine Mounting, RH 		- 1
PE
 Enquire
16 91551-80840
Bolt, Flange, A805 		$2.40 2
TO
17 91552-81080
Bolt, Flange 		$3.31 1
TO
18 12313-40030
Bracket, Engine Moving Control Rod 		- 1
PE
 Enquire
19 12365-40020
Cover, Engine Moving Control Rod, Cold Climate Spec 		- 1
PE
 Enquire
20 90105-10538
Bolt, Flange 		$3.31 1
TO
21 90105-14178
Bolt, Flange 		$7.50 1
TO
22 91552-K1025
Bolt, Flange 		$2.01 2
TO
