Front Wheel Arch Liners

Aston Martin Cygnet

Find Your Part

Aston Martin Cygnet - Front Wheel Arch Liners

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
53805-74010 Liner Sub-Assy, Front Fender, RH $44.12 To Order
Photo Part No Description Price (each) Stock
53806-74010 Liner Sub-Assy, Front Fender, LH $40.76 To Order
Photo Part No Description Price (each) Stock
53851-74040 Pad, Front Wheel Opening Extension, RH $43.95 To Order
Photo Part No Description Price (each) Stock
53852-74040 Pad, Front Wheel Opening Extension, LH $59.23 To Order
Photo Part No Description Price (each) Stock
53888-74011 Mudguard Fender Rear Plate, RH $16.50 To Order
Photo Part No Description Price (each) Stock
53889-74011 Mudguard Fender Rear Plate, LH $15.41 To Order
Photo Part No Description Price (each) Stock
53879-28010 Retainer, Front Fender Liner $6.47 To Order
Photo Part No Description Price (each) Stock
90159-60488 Screw/ Washer, Tapping $1.47 To Order
Photo Part No Description Price (each) Stock
90467-05114 Clip $6.37 To Order
Photo Part No Description Price (each) Stock
90467-07214 Clip, Front Fender Liner $1.79 To Order
Photo Part No Description Price (each) Stock
90189-06013 Grommet $1.99 To Order
Photo Part No Description Price (each) Stock
90189-06065 Grommet $1.72 IN STOCK
Photo Part No Description Price (each) Stock
90159-60602 Screw, with Washer $1.27 IN STOCK

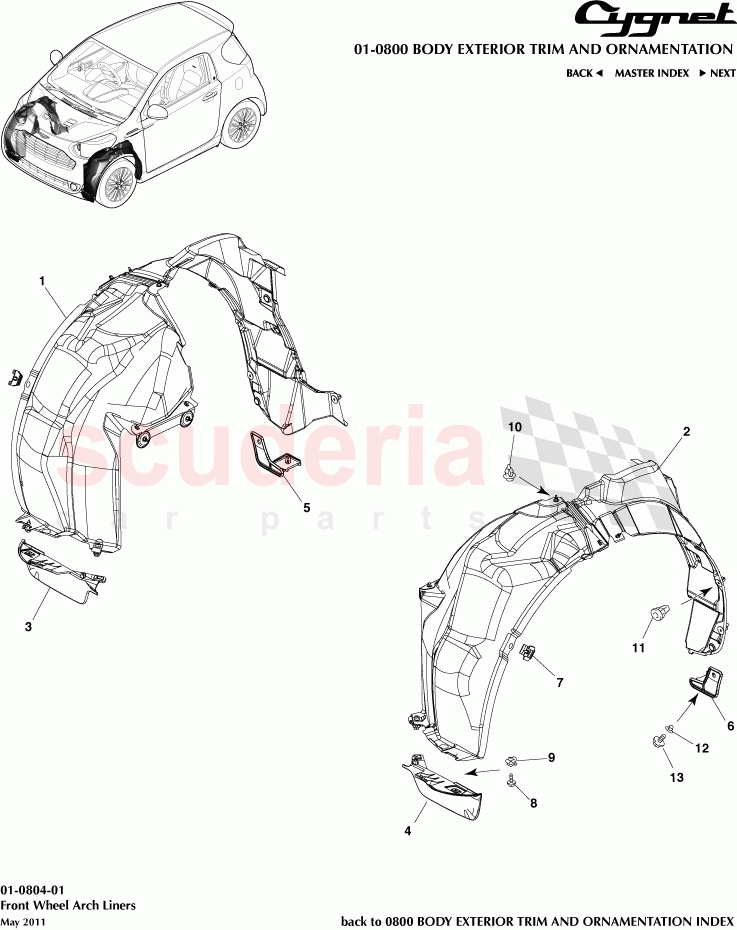

Front Wheel Arch Liners of Aston Martin Aston Martin Cygnet Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 53805-74010
Liner Sub-Assy, Front Fender, RH 		$44.12 1
TO
2 53806-74010
Liner Sub-Assy, Front Fender, LH 		$40.76 1
TO
3 53851-74040
Pad, Front Wheel Opening Extension, RH 		$43.95 1
TO
4 53852-74040
Pad, Front Wheel Opening Extension, LH 		$59.23 1
TO
5 53888-74011
Mudguard Fender Rear Plate, RH 		$16.50 1
TO
6 53889-74011
Mudguard Fender Rear Plate, LH 		$15.41 1
TO
7 53879-28010
Retainer, Front Fender Liner
1 Per Liner 		$6.47 2
TO
8 90159-60488
Screw/ Washer, Tapping
2 per liner 		$1.47 4
TO
9 90467-05114
Clip
2 per liner 		$6.37 4
TO
10 90467-07214
Clip, Front Fender Liner
8 per liner 		$1.79 16
TO
11 90189-06013
Grommet
3 per liner 		$1.99 6
TO
12 90189-06065
Grommet
1 per liner
IN STOCK 		$1.72 2
IN
13 90159-60602
Screw, with Washer
1 per liner
IN STOCK 		$1.27 2
IN
