Name: Floor Pan and Lower Back Panel
Rating: 5.0 (1 reviews)

Find Your Part

Diagram
INFO

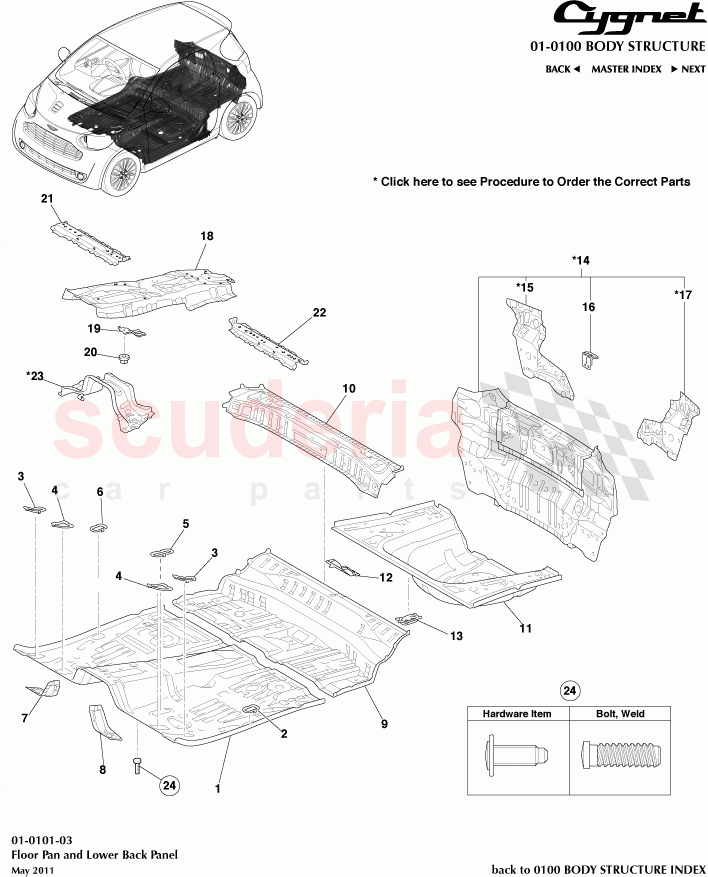

Floor Pan and Lower Back Panel of Aston Martin Aston Martin Cygnet

Aston Martin Cygnet - Floor Pan and Lower Back Panel

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	58111-74010	Pan, Front Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58149-74010	Plate, Front Floor Side Rear LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58119-74010	Plate, Front Floor Side RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55129-74010	Cover, Front Floor Hole, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58136-74010	Cover, Front Floor Hole	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58139-74010	Plate, Front Floor Side Rear RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58117-74010	Reinforcement, Front Floor Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58118-74010	Reinforcement, Front Floor Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57605-74011	Member Sub-Assy, Rear Floor Cross	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57606-74010	Member, Rear Floor Cross, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58311-74010	Pan, Rear Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57665-74010	Reinforcement, Rear Floor Crossmember, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58357-74010	Bracket, Actuator Cover, No.3 RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58307-74010	Panel Sub-Assy, Body Lower Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58375-74011	Reinforcement, Body Lower Back Panel RH	$84.75	To Order

Photo	Part No	Description	Price (each)	Stock
	58386-74010	Bracket, Rear Bumper Cover, No.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58376-74011	Reinforcement, Body Lower Back RH	$153.76	To Order

Photo	Part No	Description	Price (each)	Stock
	58104-74011	Bracket Sub-Assy, Front Seat Mounting, Inside LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58332-74010	Bracket, Rear Floor Heat Insulator, No.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90179-06219	Nut, EL91	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	57051-74010	Member Sub-Assy Front Floor Cross RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	57052-74010	Member Sub-Assy Front Floor Cross LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	58061-74010	Support Sub-Assy, Fuel Tank, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	90115-06166	Hardware Item	$2.53	To Order

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
-	58129-74010	Plate, Front Floor Side LH	58129-74010 Plate, Front Floor Side LH	-	1	PE	Enquire
-	55139-74010	Cover, Front Floor Hole, LH	55139-74010 Cover, Front Floor Hole, LH	-	1	PE	Enquire
-	58307-74031	Panel Sub-Assy, Body Lower Back	58307-74031 Panel Sub-Assy, Body Lower Back *From 10/2010	$273.61	1	TO
-	58375-74020	Reinforcement, Body Lower Back Panel RH	58375-74020 Reinforcement, Body Lower Back Panel RH *From 10/2010	-	1	PE	Enquire
-	58376-74021	Reinforcement, Body Lower Back RH	58376-74021 Reinforcement, Body Lower Back RH *From 10/2010	-	1	PE	Enquire
-	58061-74011	Support Sub-Assy, Fuel Tank, Front	58061-74011 Support Sub-Assy, Fuel Tank, Front *From 05/2011	$147.21	1	TO
-	90115-06219	Bolt, Weld	90115-06219 Bolt, Weld	$1.79	3	TO
1	58111-74010	Pan, Front Floor	58111-74010 Pan, Front Floor	-	1	PE	Enquire
2	58149-74010	Plate, Front Floor Side Rear LH	58149-74010 Plate, Front Floor Side Rear LH	-	1	PE	Enquire
3	58119-74010	Plate, Front Floor Side RH	58119-74010 Plate, Front Floor Side RH	-	1	PE	Enquire
4	55129-74010	Cover, Front Floor Hole, RH	55129-74010 Cover, Front Floor Hole, RH	-	1	PE	Enquire
5	58136-74010	Cover, Front Floor Hole	58136-74010 Cover, Front Floor Hole	-	1	PE	Enquire
6	58139-74010	Plate, Front Floor Side Rear RH	58139-74010 Plate, Front Floor Side Rear RH	-	1	PE	Enquire
7	58117-74010	Reinforcement, Front Floor Side, RH	58117-74010 Reinforcement, Front Floor Side, RH	-	1	PE	Enquire
8	58118-74010	Reinforcement, Front Floor Side, LH	58118-74010 Reinforcement, Front Floor Side, LH	-	1	PE	Enquire
9	57605-74011	Member Sub-Assy, Rear Floor Cross	57605-74011 Member Sub-Assy, Rear Floor Cross	-	1	PE	Enquire
10	57606-74010	Member, Rear Floor Cross, Front	57606-74010 Member, Rear Floor Cross, Front	-	1	PE	Enquire
11	58311-74010	Pan, Rear Floor	58311-74010 Pan, Rear Floor	-	1	PE	Enquire
12	57665-74010	Reinforcement, Rear Floor Crossmember, No.2	57665-74010 Reinforcement, Rear Floor Crossmember, No.2	-	1	PE	Enquire
13	58357-74010	Bracket, Actuator Cover, No.3 RH	58357-74010 Bracket, Actuator Cover, No.3 RH	-	1	PE	Enquire
14	58307-74010	Panel Sub-Assy, Body Lower Back	58307-74010 Panel Sub-Assy, Body Lower Back *To 10/2010	-	1	PE	Enquire
15	58375-74011	Reinforcement, Body Lower Back Panel RH	58375-74011 Reinforcement, Body Lower Back Panel RH *To 10/2010	$84.75	1	TO
16	58386-74010	Bracket, Rear Bumper Cover, No.2	58386-74010 Bracket, Rear Bumper Cover, No.2	-	1	PE	Enquire
17	58376-74011	Reinforcement, Body Lower Back RH	58376-74011 Reinforcement, Body Lower Back RH *To 10/2010	$153.76	1	TO
18	58104-74011	Bracket Sub-Assy, Front Seat Mounting, Inside LH	58104-74011 Bracket Sub-Assy, Front Seat Mounting, Inside LH	-	1	PE	Enquire
19	58332-74010	Bracket, Rear Floor Heat Insulator, No.4	58332-74010 Bracket, Rear Floor Heat Insulator, No.4	-	1	PE	Enquire
20	90179-06219	Nut, EL91	90179-06219 Nut, EL91	$1.72	1	TO
21	57051-74010	Member Sub-Assy Front Floor Cross RH	57051-74010 Member Sub-Assy Front Floor Cross RH	-	1	PE	Enquire
22	57052-74010	Member Sub-Assy Front Floor Cross LH	57052-74010 Member Sub-Assy Front Floor Cross LH	-	1	PE	Enquire
23	58061-74010	Support Sub-Assy, Fuel Tank, Front	58061-74010 Support Sub-Assy, Fuel Tank, Front *To 04/2011	-	1	PE	Enquire
24	90115-06166	Hardware Item	90115-06166 Hardware Item	$2.53	5	TO
