Rolls Royce Phantom Extended RR12(2017-2023) - Seat front rear panel II

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
52107423462 Picnic table drive $1,883.07 To Order
Photo Part No Description Price (each) Stock
52109459839 Frame, folding table $3,804.36 To Order
Photo Part No Description Price (each) Stock
52105A01690 Drive rear compartment monitor $1,402.05 To Order
Photo Part No Description Price (each) Stock
52107461712 Trim front wood $1,754.69 To Order
Photo Part No Description Price (each) Stock
52107461714 Trim rear side wood $1,671.49 To Order
52107462185 Trim rear side leather $384.72 To Order
Photo Part No Description Price (each) Stock
52109479612 Monitor with trims $11,188.05 To Order
Photo Part No Description Price (each) Stock
52109496419 Cover monitor $152.00 To Order
52107491126 Cover monitor $152.00 To Order
Photo Part No Description Price (each) Stock
52109495817 Microswitch RSE $174.03 To Order
Photo Part No Description Price (each) Stock
07 14 7132311 Blind rivet nut, flat headed $1.04 To Order
Photo Part No Description Price (each) Stock
07 14 7131792 Fillister head screw $1.62 To Order
Photo Part No Description Price (each) Stock
07119903052 Fillister head screw $3.99 To Order
Photo Part No Description Price (each) Stock
11 13 9178450 Rivet pin $6.84 To Order
Photo Part No Description Price (each) Stock
07 14 9177897 Hex nut $1.04 To Order
Photo Part No Description Price (each) Stock
07 14 7194471 screw for plastic $1.62 To Order
Photo Part No Description Price (each) Stock
52109495816 Clamp $80.30 To Order
Photo Part No Description Price (each) Stock
07 14 9151777 Fillister head screw with collar $1.62 To Order
Photo Part No Description Price (each) Stock
51 31 1925433 Rubber buffer $3.24 IN STOCK

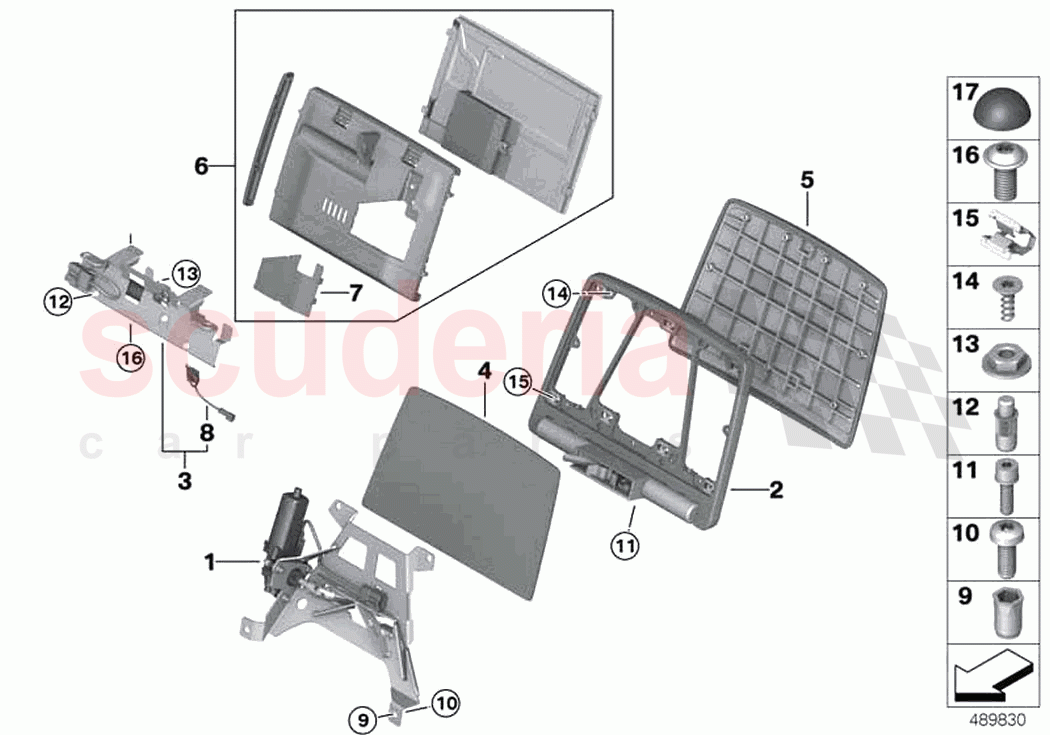

Seat front rear panel II of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 52109128662
Monitor with trims
from 04.2019 		$10,768.98 2
TO
1 52107423462
Picnic table drive 		$1,883.07 2
TO
2 52109459839
Frame, folding table 		$3,804.36 2
TO
3 52105A01690
Drive rear compartment monitor
from 04.2019 		$1,402.05 2
TO
4 52107461712
Trim front wood
QUOTE VENEER; to 04.2019 		$1,754.69 2
TO
5 52107461714
Trim rear side wood
QUOTE VENEER; to 04.2019 		$1,671.49 2
TO
5 52107462185
Trim rear side leather
COLOUR NEUTRAL 		$384.72 2
TO
6 52109479612
Monitor with trims
from 04.2019 		$11,188.05 2
TO
7 52109496419
Cover monitor
to 04.2019 		$152.00 2
TO
7 52107491126
Cover monitor
from 04.2019 		$152.00 2
TO
8 52109495817
Microswitch RSE 		$174.03 1
TO
9 07 14 7132311
Blind rivet nut, flat headed
M6 		$1.04 8
TO
10 07 14 7131792
Fillister head screw
M6X16 		$1.62 8
TO
11 07119903052
Fillister head screw
M5X20-8.8-ZNNIV 		$3.99 8
TO
12 11 13 9178450
Rivet pin
M6X6,3 		$6.84 6
TO
13 07 14 9177897
Hex nut
M6-Z1 		$1.04 6
TO
14 07 14 7194471
screw for plastic
TS5X12-ZNS3 		$1.62 18
TO
15 52109495816
Clamp 		$80.30 7
TO
16 07 14 9151777
Fillister head screw with collar 		$1.62 16
TO
17 51 31 1925433
Rubber buffer
D = 11.1
IN STOCK 		$3.24 2
