Mounting Parts Engine Compartment

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Mounting parts engine compartment

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51717399378 Bulkhead, upper section, middle $614.01 To Order
Photo Part No Description Price (each) Stock
51757428073 Cover, steering gear, front left $262.75 To Order
51757428074 Cover, steering gear, front right $262.75 To Order
Photo Part No Description Price (each) Stock
51757409799 Cover, steering gear, rear left $485.23 To Order
51757409800 Cover, steering gear, rear right $485.23 To Order
Photo Part No Description Price (each) Stock
7119904459 Hex Bolt with washer $0.77 IN STOCK
Photo Part No Description Price (each) Stock
7147306224 Expanding nut $1.20 To Order
Photo Part No Description Price (each) Stock
7149213164 Hex Bolt $1.24 IN STOCK
Photo Part No Description Price (each) Stock
7147169847 Plastic cap nut with washer $1.04 To Order
Photo Part No Description Price (each) Stock
7119907898 Hex Bolt $1.27 IN STOCK
Photo Part No Description Price (each) Stock
7147311312 C-clip plastic nut $1.04 To Order
Photo Part No Description Price (each) Stock
51451857745 Clamp $2.34 To Order
View All

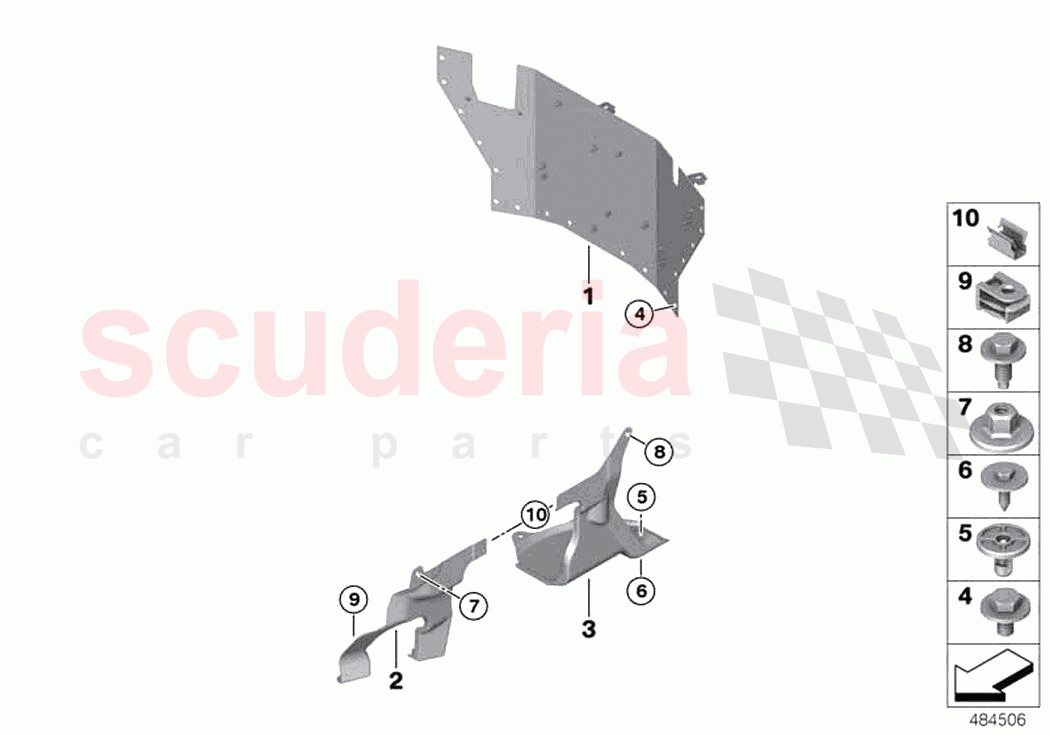

Mounting parts engine compartment of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51717399378
Bulkhead, upper section, middle 		$614.01 1
2 51757428073
Cover, steering gear, front left 		$262.75 1
2 51757428074
Cover, steering gear, front right 		$262.75 1
3 51757409799
Cover, steering gear, rear left 		$485.23 1
3 51757409800
Cover, steering gear, rear right 		$485.23 1
4 7119904459
Hex Bolt with washer
M6X12-U2-8.8
IN STOCK 		$0.77 -
5 7147306224
Expanding nut
L= 19.9MM 		$1.20 -
6 7149213164
Hex Bolt
TS5X20 SW8 D=22
IN STOCK 		$1.24 -
7 7147169847
Plastic cap nut with washer
D=22MM 		$1.04 -
8 7119907898
Hex Bolt
M6X20-8.8
IN STOCK 		$1.27 -
9 7147311312
C-clip plastic nut
TS5 		$1.04 -
10 51451857745
Clamp 		$2.34 -
