Carrier Instrument Panel

Rolls Royce Phantom Extended RR12(2017-2023)

Find Your Part

Rolls Royce Phantom Extended RR12(2017-2023) - Carrier instrument panel

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51459349959 Supporting tube, instrument panel $6,584.09 To Order
51459349960 Supporting tube, instrument panel $5,824.40 To Order
Photo Part No Description Price (each) Stock
07149391156 Compensating element $26.88 To Order
Photo Part No Description Price (each) Stock
07149321593 Compensating element $19.27 To Order
Photo Part No Description Price (each) Stock
07149496754 C-clip sheet metal nut $1.92 To Order
Photo Part No Description Price (each) Stock
07147209624 Rivet pin $3.40 To Order
Photo Part No Description Price (each) Stock
13328506195 Rivet pin $8.41 To Order
Photo Part No Description Price (each) Stock
07149314239 Double bolt Torx-Plus, thread-forming $4.37 To Order
Photo Part No Description Price (each) Stock
07149321590 Clip for screw cap $2.06 To Order
Photo Part No Description Price (each) Stock
07149197038 Fillister head screw $1.20 To Order
Photo Part No Description Price (each) Stock
07149390155 Hex Bolt with washer $2.56 To Order
Photo Part No Description Price (each) Stock
61139306505 Holder $10.86 To Order
Photo Part No Description Price (each) Stock
07129903749 ISA screw $3.57 To Order
Photo Part No Description Price (each) Stock
51452353024 Set felt strip adhesive $51.58 To Order
Photo Part No Description Price (each) Stock
07149117829 Self-locking hex nut $5.13 To Order
Photo Part No Description Price (each) Stock
07143428484 Hex Bolt with washer $5.32 To Order
Photo Part No Description Price (each) Stock
06846839060 Hexagon screw with flange $5.32 To Order
Photo Part No Description Price (each) Stock
51459349961 Holder for tunnel support left $393.12 To Order
51459349962 Holder for tunnel support right $393.12 To Order
Photo Part No Description Price (each) Stock
07149200945 Hex nut with plate $1.15 To Order

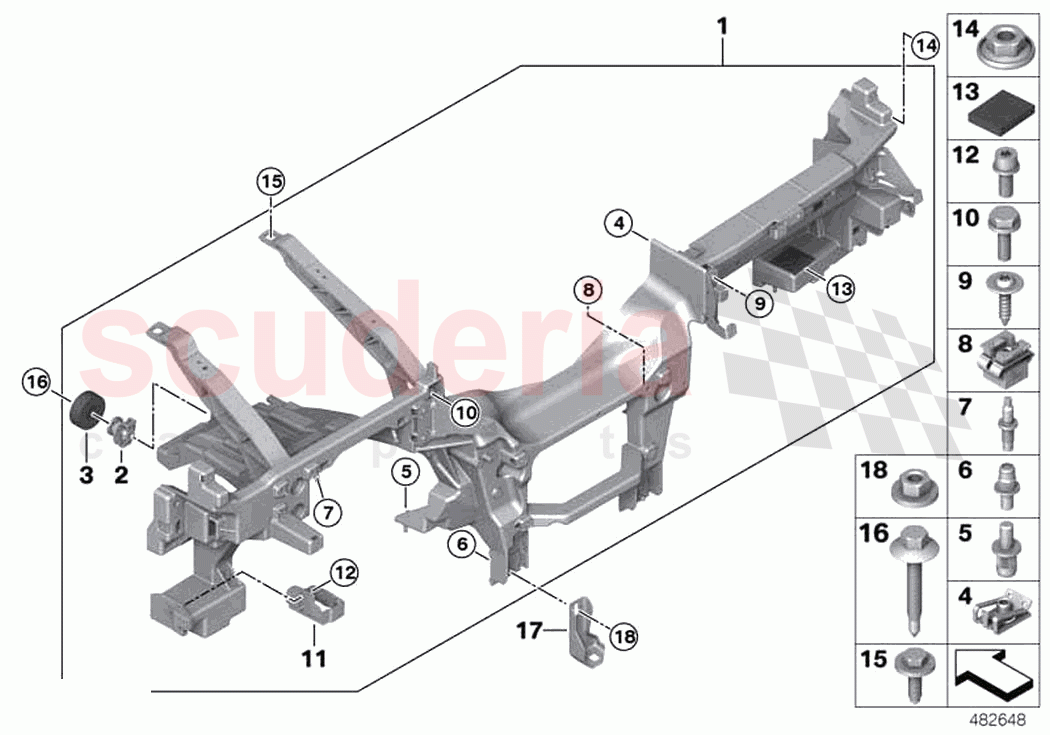

Carrier instrument panel of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51459349959
Supporting tube, instrument panel 		$6,584.09 1
TO
1 51459349960
Supporting tube, instrument panel 		$5,824.40 1
TO
2 07149391156
Compensating element 		$26.88 1
TO
3 07149321593
Compensating element 		$19.27 1
TO
4 07149496754
C-clip sheet metal nut 		$1.92 28
TO
5 07147209624
Rivet pin
M6X13,5 		$3.40 4
TO
6 13328506195
Rivet pin
M8X14,1 		$8.41 2
TO
7 07149314239
Double bolt Torx-Plus, thread-forming 		$4.37 4
TO
8 07149321590
Clip for screw cap 		$2.06 4
TO
9 07149197038
Fillister head screw
DELTA PT4X16 		$1.20 8
TO
10 07149390155
Hex Bolt with washer
M8X28-10.9-ZNS3 		$2.56 4
TO
11 61139306505
Holder 		$10.86 1
TO
12 07129903749
ISA screw
M6X16MM 		$3.57 1
TO
13 51452353024
Set felt strip adhesive 		$51.58 -
TO
14 07149117829
Self-locking hex nut
M8 		$5.13 4
TO
15 07143428484
Hex Bolt with washer
M8X30 		$5.32 2
TO
16 06846839060
Hexagon screw with flange
M8X86 		$5.32 1
TO
17 51459349961
Holder for tunnel support left 		$393.12 1
TO
17 51459349962
Holder for tunnel support right 		$393.12 1
TO
18 07149200945
Hex nut with plate
M8 		$1.15 4
TO
