Name: Bonnet mounted parts
Rating: 4.8 (1 reviews)

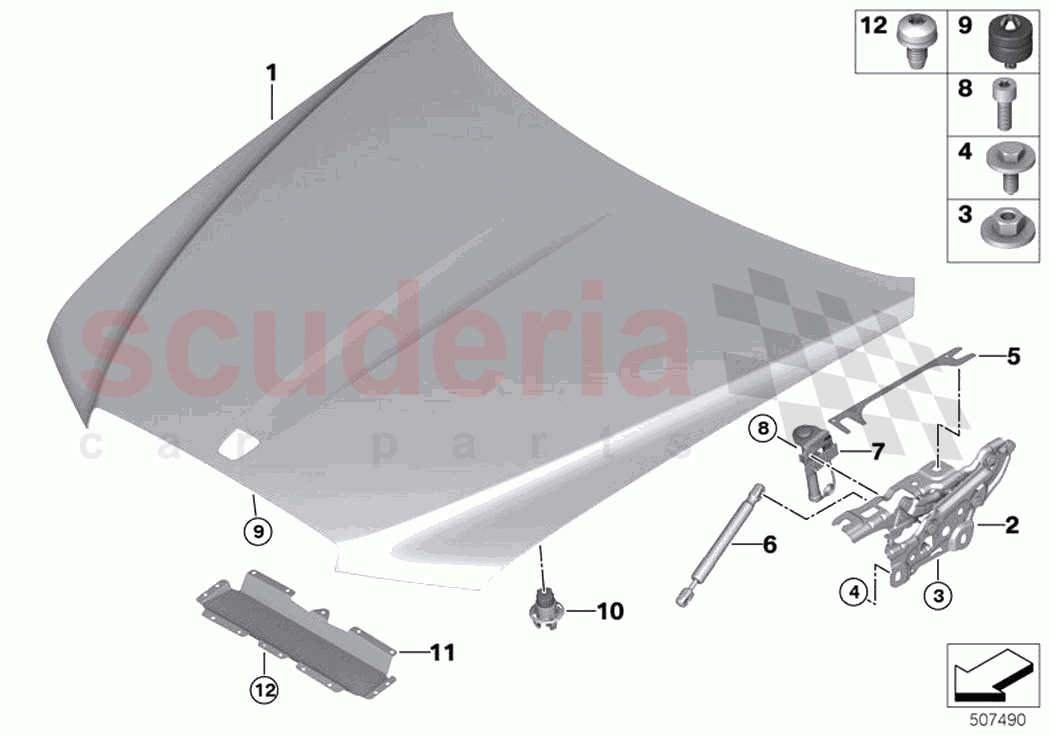

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51717495363	Aluminium engine hood	$8,689.43	To Order

Photo	Part No	Description	Price (each)	Stock
	07146959644	Hex nut with plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	07149231837	Hex Bolt with washer	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	51237495408	Gas pressure spring bonnet active	$128.84	To Order

Photo	Part No	Description	Price (each)	Stock
	07 12 9904588	ISA screw	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	51 23 7162448	Stop buffer	$4.95	To Order

Photo	Part No	Description	Price (each)	Stock
	51 76 7183752	Adjuster	$5.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51135A0B5C9	Reinforcement bonnet inner panel	$154.86	To Order

Photo	Part No	Description	Price (each)	Stock
	07146981003	Oval-head screw/washer assembly	$3.72	To Order

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	51717495363	Aluminium engine hood	51717495363 Aluminium engine hood	$8,689.43	1	TO
2	41007427051	Left engine hood hinge IN STOCK	41007427051 Left engine hood hinge IN STOCK	$101.64	1	IN
2	41007427052	Right engine hood hinge IN STOCK	41007427052 Right engine hood hinge IN STOCK	$101.64	1	IN
3	07146959644	Hex nut with plate	07146959644 Hex nut with plate M8	-	4	PE	Enquire
4	07149231837	Hex Bolt with washer	07149231837 Hex Bolt with washer M8X25	$3.86	4	TO
5	41 00 9622028	Spacer plate, bonnet hinge	41 00 9622028 Spacer plate, bonnet hinge 0,5MM	-	-	PE	Enquire
5	41 00 9622027	Spacer plate, bonnet hinge	41 00 9622027 Spacer plate, bonnet hinge 1,0MM	-	-	PE	Enquire
6	51237495408	Gas pressure spring bonnet active	51237495408 Gas pressure spring bonnet active	$128.84	2	TO
7	51237495411	Actuator, left	51237495411 Actuator, left	$216.79	1	TO
7	51237495412	Actuator, right	51237495412 Actuator, right	$216.79	1	TO
8	07 12 9904588	ISA screw	07 12 9904588 ISA screw M6X16-8.8-ZNS3	$2.57	2	TO
9	51 23 7162448	Stop buffer	51 23 7162448 Stop buffer	$4.95	4	TO
10	51 76 7183752	Adjuster IN STOCK	51 76 7183752 Adjuster IN STOCK	$5.96	2	IN
11	51135A0B5C9	Reinforcement bonnet inner panel	51135A0B5C9 Reinforcement bonnet inner panel	$154.86	1	TO
12	07146981003	Oval-head screw/washer assembly	07146981003 Oval-head screw/washer assembly	$3.72	15	TO

Bonnet Mounted Parts

Rolls Royce Ghost Extended RR22(2019-2023)
