Front Door Hinge Door Brake

Rolls Royce Ghost Extended RR22(2019-2023)

Find Your Part

Rolls Royce Ghost Extended RR22(2019-2023) - Front door hinge door brake

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51719852749 Door front left $5,848.17 To Order
51719852750 Door, front, right $5,848.17 To Order
Photo Part No Description Price (each) Stock
41517420089 Door hinge, bottom left $61.63 To Order
41517420090 Door hinge, bottom right $61.63 To Order
Photo Part No Description Price (each) Stock
41517420093 Door hinge, top left $61.63 To Order
41517420094 Door hinge, top right $61.63 To Order
Photo Part No Description Price (each) Stock
07 14 6979757 Hex Bolt $22.06 To Order
Photo Part No Description Price (each) Stock
07147261771 Torx-countersunk screw $1.72 To Order
Photo Part No Description Price (each) Stock
07147284478 Hexagon screw with flange $1.83 To Order
Photo Part No Description Price (each) Stock
51218499269 Front door brake $145.53 To Order
51218496739 Front door brake $397.14 To Order
Photo Part No Description Price (each) Stock
51225A03CD1 Dust grommet door brake front left $17.59 To Order
51225A03CD2 Dust grommet door brake front right $17.59 To Order
51225A03CC7 Dust grommet door brake front left $17.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51219447565 Bodyshell grommet door front left $35.64 To Order
51219447566 Bodyshell grommet door front right $35.64 To Order
Photo Part No Description Price (each) Stock
51219447561 Grommet, door stop, front left $51.36 To Order
51219447562 Grommet, door stop, front right $51.36 To Order
Photo Part No Description Price (each) Stock
51217493599 Crashpad, door, front left $206.67 To Order
51217493600 Crashpad, door, front right $206.67 To Order
Photo Part No Description Price (each) Stock
7129909275 Hex nut $1.12 To Order
Photo Part No Description Price (each) Stock
7147248303 Torx-bolt with washer $1.30 To Order

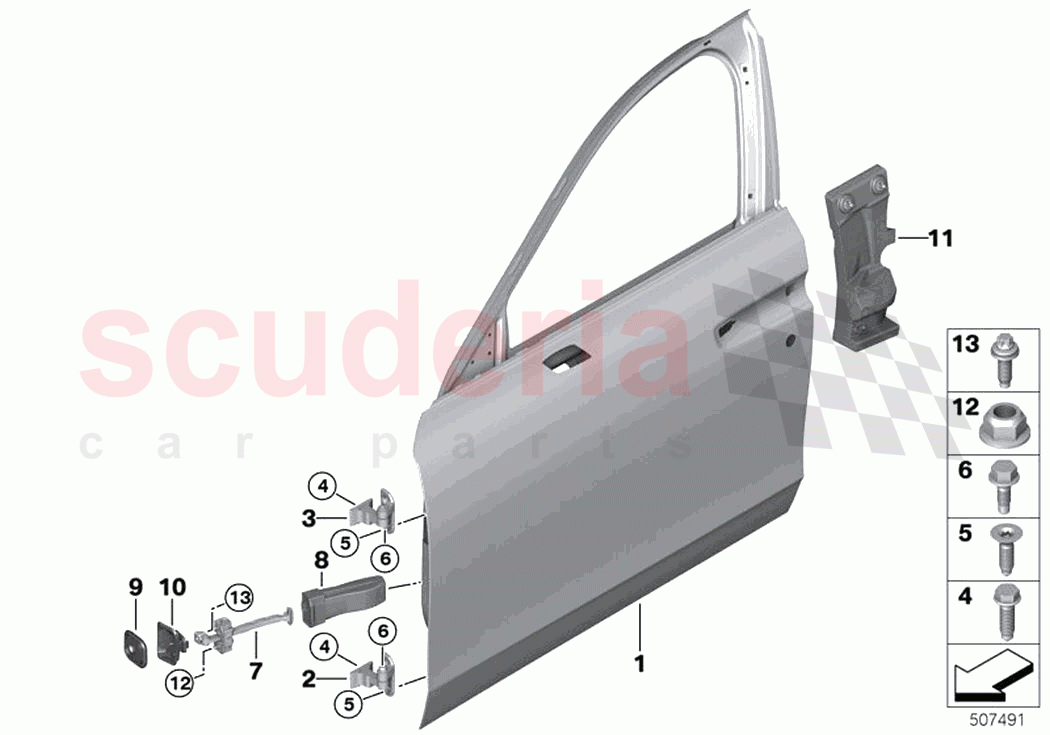

Front door hinge door brake of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51719852749
Door front left 		$5,848.17 1
TO
1 51719852750
Door, front, right 		$5,848.17 1
TO
2 41517420089
Door hinge, bottom left 		$61.63 1
TO
2 41517420090
Door hinge, bottom right 		$61.63 1
TO
3 41517420093
Door hinge, top left 		$61.63 1
TO
3 41517420094
Door hinge, top right 		$61.63 1
TO
4 07 14 6979757
Hex Bolt
M12X48 		$22.06 2
TO
5 07147261771
Torx-countersunk screw
ISA M8X29.5 		$1.72 4
TO
6 07147284478
Hexagon screw with flange
M8X24 		$1.83 4
TO
7 51218499269
Front door brake
to 12.2020 		$145.53 2
TO
7 51218496739
Front door brake
from 12.2020 		$397.14 2
TO
8 51225A03CD1
Dust grommet door brake front left
to 12.2020 		$17.59 1
TO
8 51225A03CD2
Dust grommet door brake front right
to 12.2020 		$17.59 1
TO
8 51225A03CC7
Dust grommet door brake front left
from 12.2020 		$17.37 1
TO
8 51225A03CC8
Dust grommet door brake front right
from 12.2020 		$17.37 1
TO
9 51219447565
Bodyshell grommet door front left 		$35.64 1
TO
9 51219447566
Bodyshell grommet door front right 		$35.64 1
TO
10 51219447561
Grommet, door stop, front left 		$51.36 1
TO
10 51219447562
Grommet, door stop, front right 		$51.36 1
TO
11 51217493599
Crashpad, door, front left 		$206.67 1
TO
11 51217493600
Crashpad, door, front right 		$206.67 1
TO
12 7129909275
Hex nut
M6 		$1.12 4
TO
13 7147248303
Torx-bolt with washer
ASA M8X22 		$1.30 2
TO
