Rolls Royce Cullinan RR31(2017-2023) - Mechanical connect and repair elements

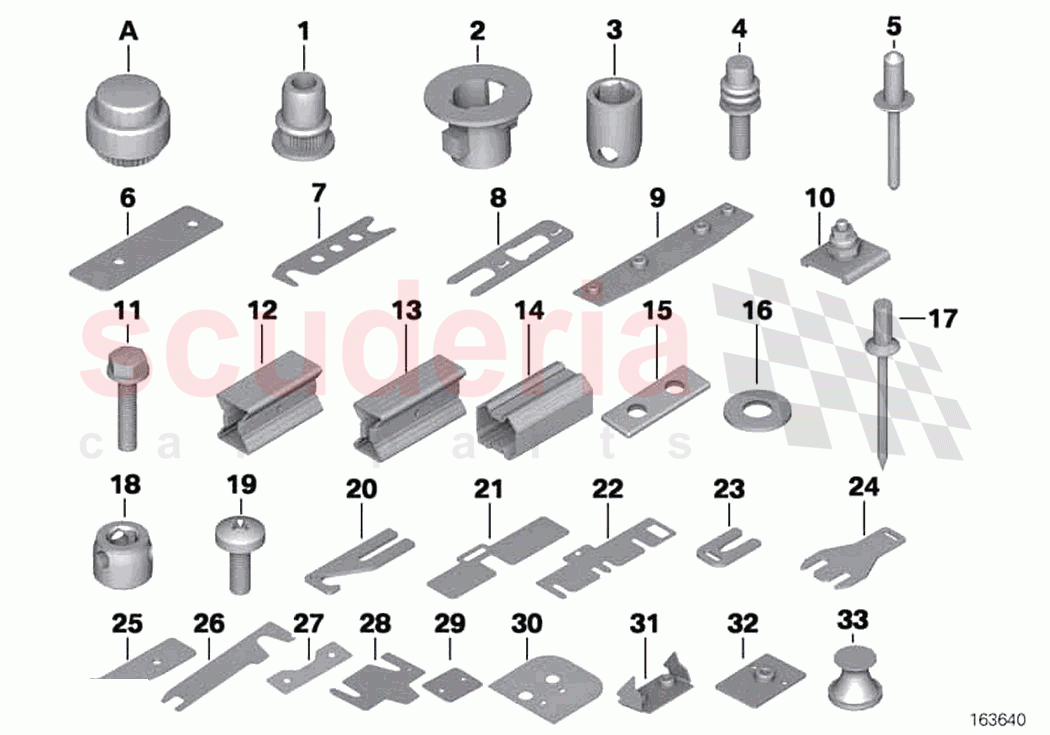

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7146986939	Blind rivet nut, flat headed	$4.81	To Order
	7146989331	Blind rivet nut, flat headed	$3.65	To Order
	7146989335	Blind rivet nut, flat headed	$4.81	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41007029666	Clip nut	$6.07	To Order
	41007029668	Clip nut	$12.80	To Order
	41007029667	Clip nut	$6.84	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156479	Threaded plug	$3.51	To Order
	41217066644	Threaded plug	$43.05	To Order
	41117064207	Threaded plug	$48.57	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7146989348	Threaded bolt	$1.95	To Order
	7146989350	Threaded bolt	$9.89	To Order
	7146989354	Rivet pin	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7146950151	Blind rivet, flat headed	Enquire	To Order
	7147113271	Blind rivet	$1.57	To Order
	7147128043	Blind rivet, countersunk head	$1.00	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41617068311	Spacer plate, bonnet hinge	$42.89	To Order
	41617068312	Spacer plate, bonnet hinge	$42.89	To Order
	41617209751	Spacer plate, bonnet hinge	$42.89	To Order

Photo	Part No	Description	Price (each)	Stock
	41110151305	Earth pin	Enquire	To Order
	41116912960	Earth pin	Enquire	To Order
	41246919376	Earth pin	$21.78	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	41357129925	Spacer plate	$16.76	To Order

Photo	Part No	Description	Price (each)	Stock
	7147117992	Spacer	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	41128266111	Coarse-threaded bolt	$6.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7129902752	Punch rivet	$0.64	To Order
	7129902768	Punch rivet	$0.64	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	7146986939	Blind rivet nut, flat headed	7146986939 Blind rivet nut, flat headed M6	$4.81	-
01	7146989331	Blind rivet nut, flat headed	7146989331 Blind rivet nut, flat headed M8	$3.65	-
01	7146989335	Blind rivet nut, flat headed	7146989335 Blind rivet nut, flat headed M8	$4.81	-
01	41117060530	Blind rivet nut, flat headed	41117060530 Blind rivet nut, flat headed M10	$2.04	-
01	7146989338	Blind rivet nut, flat headed	7146989338 Blind rivet nut, flat headed M8	$1.06	-
01	7146989341	Blind rivet nut, flat headed	7146989341 Blind rivet nut, flat headed M8	$2.75	-
01	41618241623	Blind rivet nut, flat headed	41618241623 Blind rivet nut, flat headed M8	$4.58	-
01	7147073599	Blind rivet nut, flat headed	7147073599 Blind rivet nut, flat headed M8	$0.18	-
01	7146989344	Blind rivet nut, flat headed	7146989344 Blind rivet nut, flat headed M6	$3.62	-
01	7147112482	Blind rivet nut, flat headed	7147112482 Blind rivet nut, flat headed M8	$99.25	-
01	41007058033	Blind rivet nut, flat headed	41007058033 Blind rivet nut, flat headed M10	$19.29	-
01	41128266650	Blind rivet nut, flat headed	41128266650 Blind rivet nut, flat headed M8	$9.89	-
01	7146989337	Blind rivet nut, flat headed	7146989337 Blind rivet nut, flat headed M5	$4.87	-
01	7149146352	Blind rivet nut, countersunk head	7149146352 Blind rivet nut, countersunk head M5 L=15MM	$7.90	-
01	41358268548	Blind rivet nut, countersunk head	41358268548 Blind rivet nut, countersunk head M4	$3.98	-
01	41148257673	Blind rivet nut, countersunk head	41148257673 Blind rivet nut, countersunk head M8	$7.53	-
01	41358241621	Blind rivet nut, flat headed	41358241621 Blind rivet nut, flat headed M6	$2.75	-
01	41118262614	Blind rivet nut, flat headed	41118262614 Blind rivet nut, flat headed M6	$10.12	-
01	7146989330	Blind rivet nut, flat headed	7146989330 Blind rivet nut, flat headed M6	$4.81	-
02	41007029666	Clip nut	41007029666 Clip nut M5	$6.07	-
02	41007029668	Clip nut	41007029668 Clip nut M8	$12.80	-
02	41007029667	Clip nut	41007029667 Clip nut M6	$6.84	-
03	7147156479	Threaded plug	7147156479 Threaded plug M6	$3.51	-
03	41217066644	Threaded plug	41217066644 Threaded plug M8	$43.05	-
03	41117064207	Threaded plug	41117064207 Threaded plug M10	$48.57	-
03	7147141729	Threaded plug	7147141729 Threaded plug M12X1.5	$6.20	-
03	7147141730	Threaded plug	7147141730 Threaded plug M14X1,5X14	$17.73	-
04	7146989348	Threaded bolt	7146989348 Threaded bolt M6	$1.95	-
04	7146989350	Threaded bolt	7146989350 Threaded bolt	$9.89	-
04	7146989354	Rivet pin	7146989354 Rivet pin M6X10,1	-	-	Enquire
04	7147151289	Blind rivet, countersunk head	7147151289 Blind rivet, countersunk head	$3.18	-
04	41118243395	Threaded bolt	41118243395 Threaded bolt M8	$7.03	-
04	41148243397	Threaded bolt	41148243397 Threaded bolt M8	$7.03	-
04	7149121638	Rivet pin with coarse thread	7149121638 Rivet pin with coarse thread 1,5-4,0 MM	$5.32	-
04	7147116813	Rivet pin	7147116813 Rivet pin M5X10,5	$8.20	-
04	7147133779	Rivet pin with coarse thread	7147133779 Rivet pin with coarse thread 0,5-3,0MM	$3.62	-
05	7146950151	Blind rivet, flat headed	7146950151 Blind rivet, flat headed 3,2X8	-	-	Enquire
05	7147113271	Blind rivet	7147113271 Blind rivet 4,8X9,5	$1.57	-
05	7147128043	Blind rivet, countersunk head	7147128043 Blind rivet, countersunk head 3,0X8,5	$1.00	-
05	41007054489	Blind rivet, flat headed	41007054489 Blind rivet, flat headed 6,5X14,9	$3.57	-
05	41007054384	Blind rivet, flat headed	41007054384 Blind rivet, flat headed 6,5X14,3	$4.28	-
05	41007054490	Blind rivet, flat headed	41007054490 Blind rivet, flat headed 6,5X18,3	$3.81	-
05	41007031968	Blind rivet, countersunk head	41007031968 Blind rivet, countersunk head B4,0X11,2	$1.15	-
05	41007031969	Blind rivet, flat headed	41007031969 Blind rivet, flat headed A6,5X16,3	$3.60	-
05	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	$0.83	-
07	41617068311	Spacer plate, bonnet hinge	41617068311 Spacer plate, bonnet hinge 1,0MM	$42.89	-
07	41617068312	Spacer plate, bonnet hinge	41617068312 Spacer plate, bonnet hinge 2,0MM	$42.89	-
07	41617209751	Spacer plate, bonnet hinge	41617209751 Spacer plate, bonnet hinge 0.5MM	$42.89	-
10	41110151305	Earth pin	41110151305 Earth pin M6	-	-	Enquire
10	41116912960	Earth pin	41116912960 Earth pin M8	-	-	Enquire
10	41246919376	Earth pin	41246919376 Earth pin M8	$21.78	-
10	41246919377	Earth pin	41246919377 Earth pin M6	$13.25	-
15	41357129925	Spacer plate	41357129925 Spacer plate	$16.76	-
16	7147117992	Spacer	7147117992 Spacer D=20,H=2,ID=6,4	$2.42	-
19	41128266111	Coarse-threaded bolt	41128266111 Coarse-threaded bolt L=15,5MM	$6.22	-
33	7129902752	Punch rivet	7129902752 Punch rivet 5MM	$0.64	-
33	7129902768	Punch rivet	7129902768 Punch rivet 3,35MM	$0.64	-
