Mounting Parts Engine Compartment

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Mounting parts engine compartment

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51717441339 Bulkhead, upper section, middle $594.38 To Order
Photo Part No Description Price (each) Stock
51717441325 Bulkhead, lower section, left $614.01 To Order
51717441327 Bulkhead, lower section, left $614.01 To Order
Photo Part No Description Price (each) Stock
51717441326 Bulkhead, lower section, right $614.01 To Order
51717441328 Bulkhead, lower section, right $614.01 To Order
Photo Part No Description Price (each) Stock
51757428073 Cover, steering gear, front left $262.75 To Order
51757428074 Cover, steering gear, front right $262.75 To Order
Photo Part No Description Price (each) Stock
51757409799 Cover, steering gear, rear left $485.23 To Order
51757409800 Cover, steering gear, rear right $485.23 To Order
Photo Part No Description Price (each) Stock
07 14 6949379 Body nut $1.04 To Order
Photo Part No Description Price (each) Stock
07 14 9213164 Hex Bolt $1.24 IN STOCK
Photo Part No Description Price (each) Stock
07147311312 C-clip plastic nut $1.04 To Order
Photo Part No Description Price (each) Stock
07119907898 Hex Bolt $1.27 IN STOCK
Photo Part No Description Price (each) Stock
07147169847 Plastic cap nut with washer $1.04 To Order
Photo Part No Description Price (each) Stock
07147306224 Expanding nut $1.20 To Order
Photo Part No Description Price (each) Stock
51451857745 Clamp $2.34 To Order
Photo Part No Description Price (each) Stock
22326790073 Spring nut $1.41 To Order

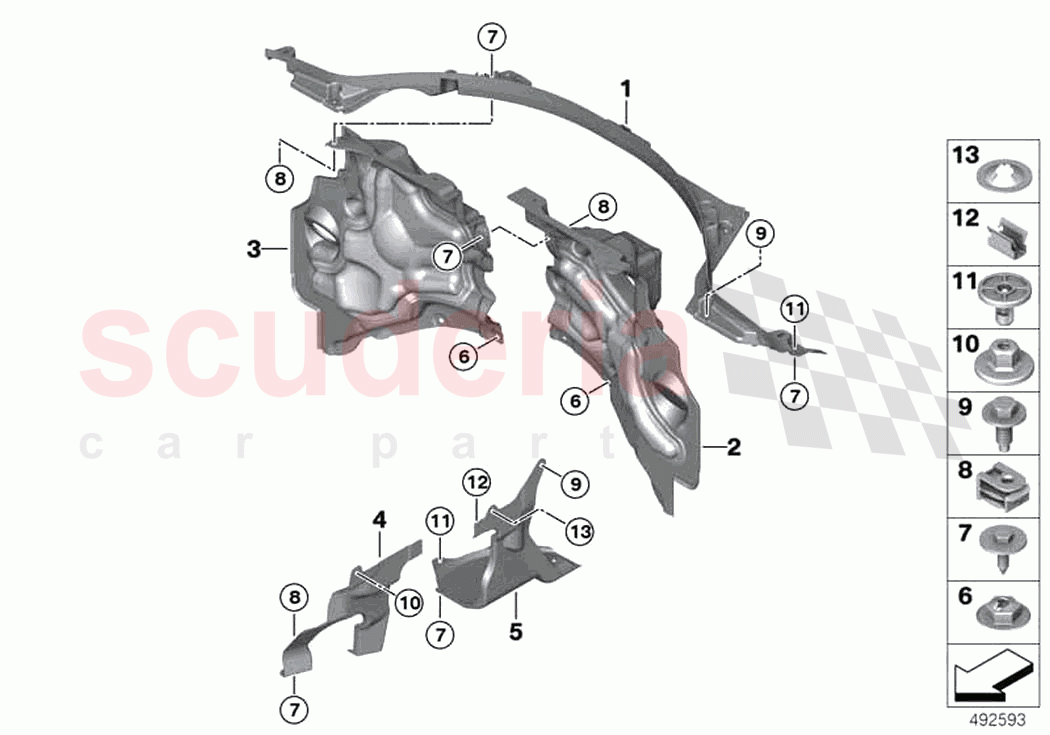

Mounting parts engine compartment of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 51717441339
Bulkhead, upper section, middle 		$594.38 1
TO
02 51717441325
Bulkhead, lower section, left
LL 		$614.01 1
TO
02 51717441327
Bulkhead, lower section, left
RL 		$614.01 1
TO
03 51717441326
Bulkhead, lower section, right
LL 		$614.01 1
TO
03 51717441328
Bulkhead, lower section, right
RL 		$614.01 1
TO
04 51757428073
Cover, steering gear, front left 		$262.75 1
TO
04 51757428074
Cover, steering gear, front right 		$262.75 1
TO
05 51757409799
Cover, steering gear, rear left 		$485.23 1
TO
05 51757409800
Cover, steering gear, rear right 		$485.23 1
TO
06 07 14 6949379
Body nut
D=18MM, ZNS-3 		$1.04 8
TO
07 07 14 9213164
Hex Bolt
TS5X20 SW8 D=22
IN STOCK 		$1.24 15
IN
08 07147311312
C-clip plastic nut
TS5 		$1.04 2
TO
09 07119907898
Hex Bolt
M6X20-8.8
IN STOCK 		$1.27 4
IN
10 07147169847
Plastic cap nut with washer
D=22MM 		$1.04 2
TO
11 07147306224
Expanding nut
L= 19.9MM 		$1.20 6
TO
12 51451857745
Clamp 		$2.34 2
TO
13 22326790073
Spring nut 		$1.41 2
TO
