Carrier Centre Console

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Carrier centre console

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51169393842 Centre console support top $2,149.30 To Order
Photo Part No Description Price (each) Stock
51167950134 Centre arm rest lock $360.81 To Order
Photo Part No Description Price (each) Stock
51 16 9484104 Set mounting clips Enquire To Order
Photo Part No Description Price (each) Stock
51166825782 Microswitch $122.87 To Order
Photo Part No Description Price (each) Stock
07149319414 C-clip sheet metal nut $1.85 To Order
Photo Part No Description Price (each) Stock
51169389818 Function carrier centre console front $164.06 To Order
Photo Part No Description Price (each) Stock
07 14 7326203 Plug-in retainer Enquire To Order
Photo Part No Description Price (each) Stock
61136918644 Cable strap with bracket $2.31 To Order
Photo Part No Description Price (each) Stock
07149200941 Oval-head screw with washer $1.36 To Order
Photo Part No Description Price (each) Stock
51169393837 Bracket centre console front top $189.11 To Order
Photo Part No Description Price (each) Stock
51169389844 Centre console support bottom $1,657.40 To Order
Photo Part No Description Price (each) Stock
51169389843 Function carrier centre console rear $74.81 To Order
Photo Part No Description Price (each) Stock
51169389812 Holder, centre console, front $328.74 To Order
Photo Part No Description Price (each) Stock
51169399126 Bracket, centre console rear $721.57 To Order
Photo Part No Description Price (each) Stock
07149197038 Fillister head screw $1.20 To Order
Photo Part No Description Price (each) Stock
07149905728 Hex Bolt $1.66 To Order
Photo Part No Description Price (each) Stock
07147311066 Hex nut with plate $1.41 To Order
Photo Part No Description Price (each) Stock
61 13 8375988 Cable strap with bracket $1.00 To Order
Photo Part No Description Price (each) Stock
61 13 9123604 Plug-in connection bracket $4.75 To Order

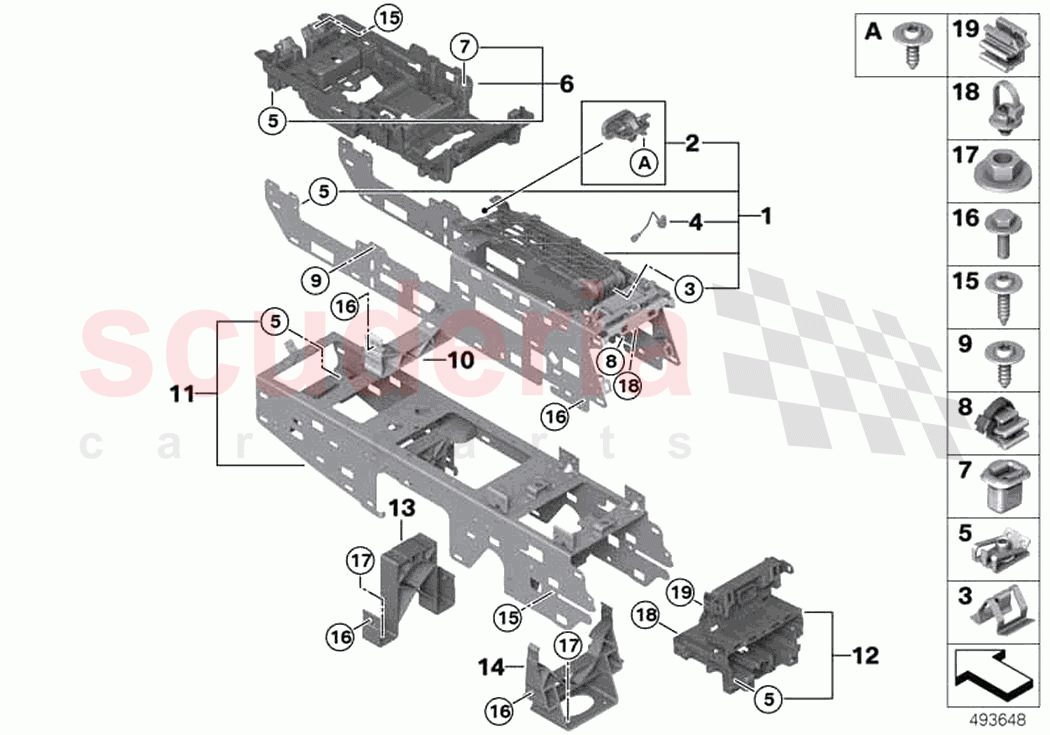

Carrier centre console of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 51169393842
Centre console support top 		$2,149.30 1
TO
02 51167950134
Centre arm rest lock 		$360.81 1
TO
03 51 16 9484104
Set mounting clips 		- 1
PE
 Enquire
04 51166825782
Microswitch 		$122.87 1
TO
05 07149319414
C-clip sheet metal nut 		$1.85 28
TO
06 51169389818
Function carrier centre console front 		$164.06 1
TO
07 07 14 7326203
Plug-in retainer 		- 2
PE
 Enquire
08 61136918644
Cable strap with bracket
L=200MM 		$2.31 1
TO
09 07149200941
Oval-head screw with washer
DELTA PT4X12 		$1.36 10
TO
10 51169393837
Bracket centre console front top 		$189.11 1
TO
11 51169389844
Centre console support bottom 		$1,657.40 1
TO
12 51169389843
Function carrier centre console rear 		$74.81 1
TO
13 51169389812
Holder, centre console, front 		$328.74 1
TO
14 51169399126
Bracket, centre console rear 		$721.57 1
TO
15 07149197038
Fillister head screw
DELTA PT4X16 		$1.20 8
TO
16 07149905728
Hex Bolt
M6X20 		$1.66 18
TO
17 07147311066
Hex nut with plate
M6 		$1.41 6
TO
18 61 13 8375988
Cable strap with bracket
Ø=7,9 / L=150 		$1.00 2
TO
19 61 13 9123604
Plug-in connection bracket 		$4.75 1
TO
