A/C Unit: Diffusion

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - A/C UNIT: DIFFUSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670149127 DEFROSTER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
670040558 LH REAR AIR DUCT GRILL Enquire To Order
Photo Part No Description Price (each) Stock
670065530 RH REAR AIR DUCT GRILL Enquire To Order
Photo Part No Description Price (each) Stock
670104914 REAR RIGHT AIR DUCT $19.17 To Order
Photo Part No Description Price (each) Stock
670047424 DRIVER SIDE DASHBOARD AIR VENT ASS. Enquire To Order
Photo Part No Description Price (each) Stock
670152312 CENTRAL DASHBOARD TRIM PLATE Enquire To Order
Photo Part No Description Price (each) Stock
670006484 SCREW $1.92 To Order
Photo Part No Description Price (each) Stock
670047045 PASSENGER SIDE DASHBOARD AIR VENT ASS. Enquire To Order
Photo Part No Description Price (each) Stock
670036729 RH UNDER SEAT CONNECTOR $15.88 To Order
Photo Part No Description Price (each) Stock
670032805 LH UNDER SEAT CONNECTOR $17.73 To Order
Photo Part No Description Price (each) Stock
670033534 REAR AIR DUCT $32.63 To Order
Photo Part No Description Price (each) Stock
670043345 REAR AIR VENT Enquire To Order
Photo Part No Description Price (each) Stock
670149349 REAR AIR VENT Enquire To Order

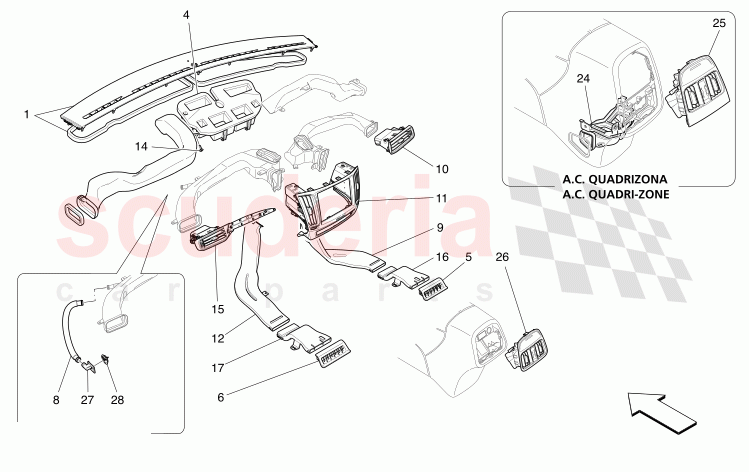

A/C UNIT: DIFFUSION of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670149127
DEFROSTER PLATE
Bespoke Assembly Number 6058399 - 99999999; 		- 1
PE
 Enquire
5 670040558
LH REAR AIR DUCT GRILL
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		- 1
PE
 Enquire
6 670065530
RH REAR AIR DUCT GRILL
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		- 1
PE
 Enquire
9 670104914
REAR RIGHT AIR DUCT
Bespoke Assembly Number 6053787 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; AU UK JRH IN SA; 		$19.17 1
TO
10 670047424
DRIVER SIDE DASHBOARD AIR VENT ASS.
AU UK JRH IN SA; 		- 1
PE
 Enquire
11 670152312
CENTRAL DASHBOARD TRIM PLATE
Bespoke Assembly Number 6079467 - 99999999; 		- 1
PE
 Enquire
14 670006484
SCREW 		$1.92 3
TO
15 670047045
PASSENGER SIDE DASHBOARD AIR VENT ASS.
AU UK JRH IN SA; 		- 1
PE
 Enquire
16 670036729
RH UNDER SEAT CONNECTOR
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		$15.88 1
TO
17 670032805
LH UNDER SEAT CONNECTOR
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		$17.73 1
TO
24 670033534
REAR AIR DUCT
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$32.63 1
TO
25 670043345
REAR AIR VENT
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		- 1
PE
 Enquire
26 670149349
REAR AIR VENT
Bespoke Assembly Number 6066858 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		- 1
PE
 Enquire
