A/C Unit: Engine Compartment Devices

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - A/C UNIT: ENGINE COMPARTMENT DEVICES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670038664 PIPE FROM EVAPOURATOR TO UNION $271.57 To Order
670002658 PIPE FROM EVAPOURATOR TO UNION $351.50 To Order
670038664 PIPE FROM EVAPOURATOR TO UNION $271.57 To Order
Photo Part No Description Price (each) Stock
670104909 PIPE A.C. - COMPRESSOR $134.70 To Order
670104909 PIPE A.C. - COMPRESSOR $134.70 To Order
Photo Part No Description Price (each) Stock
670003216 PIPE BETWEEN CONDENSER AND JUNCTION $155.19 IN STOCK
Photo Part No Description Price (each) Stock
670104810 PIPE FROM COMPRESSOR TO UNION $153.30 To Order
670104810 PIPE FROM COMPRESSOR TO UNION $153.30 To Order
Photo Part No Description Price (each) Stock
670009820 AC CONDENSER $908.71 IN STOCK
670296020 A.C CONDENSER $884.79 To Order
Photo Part No Description Price (each) Stock
670038668 PRESSOSTAT $65.52 IN STOCK
Photo Part No Description Price (each) Stock
954108 AC COMPRESSOR $1,653.23 IN STOCK
Photo Part No Description Price (each) Stock
291575 BRACKET $12.06 To Order
Photo Part No Description Price (each) Stock
299601 BRACKET $13.63 To Order
Photo Part No Description Price (each) Stock
675000122 O-RING 1/2" A/C $8.91 IN STOCK
Photo Part No Description Price (each) Stock
670005087 PLUG $20.98 To Order
Photo Part No Description Price (each) Stock
675000315 NUT $1.98 To Order
Photo Part No Description Price (each) Stock
675000456 SCREWM8X25 $5.25 To Order
675000328 NUT $1.53 To Order
Photo Part No Description Price (each) Stock
14307124 SCREWM8X90 $20.27 To Order
Photo Part No Description Price (each) Stock
246208 SCREWM8X90 $20.38 To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.54 IN STOCK
Photo Part No Description Price (each) Stock
673000010 DEHYDRATOR FILTER KIT $268.80 ARRIVING SOON
Photo Part No Description Price (each) Stock
11186374 WASHERD.10-20X2 $2.87 To Order
Photo Part No Description Price (each) Stock
320345 BRACKET ASSEMBLY $35.11 To Order
320345 BRACKET ASSEMBLY $35.11 To Order
Photo Part No Description Price (each) Stock
303438 CLIP $13.63 To Order
Photo Part No Description Price (each) Stock
311689 SUPPORT $99.87 To Order
Photo Part No Description Price (each) Stock
265097 SCREWM8X40 $6.40 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.81 IN STOCK
Photo Part No Description Price (each) Stock
675000249 SCREW $1.57 To Order
Photo Part No Description Price (each) Stock
675000328 NUT $1.53 To Order
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL $9.42 IN STOCK
Photo Part No Description Price (each) Stock
675000314 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
675000121 3/8" SEAL $7.05 IN STOCK
Photo Part No Description Price (each) Stock
675000121 3/8" SEAL $7.05 IN STOCK
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL $9.42 IN STOCK
Photo Part No Description Price (each) Stock
675000119 O-RING 68 x 187 $2.25 IN STOCK
Photo Part No Description Price (each) Stock
675000306 O.R. GASKET13,6x2,43 $2.19 IN STOCK
Photo Part No Description Price (each) Stock
670100149 SOUNDPROOFING ELEMENT $8.82 To Order
670100150 SOUNDPROOFING ELEMENT $12.39 To Order
Photo Part No Description Price (each) Stock
670039321 SOUNDPROOFING ELEMENT $19.05 To Order
670039322 SOUNDPROOFING ELEMENT $12.39 To Order
Photo Part No Description Price (each) Stock
675000315 NUT $1.98 To Order
Photo Part No Description Price (each) Stock
320597 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14058421 NUT $2.33 To Order
Photo Part No Description Price (each) Stock
673015590 ECV VALVE WITH SEEGER RING $85.76 To Order
Photo Part No Description Price (each) Stock
673009426 PLUG $31.96 To Order
673009426 PLUG $31.96 To Order

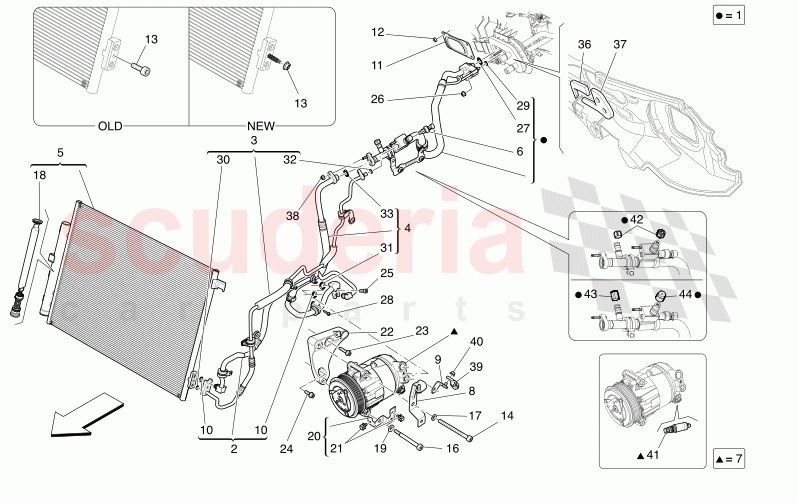

A/C UNIT: ENGINE COMPARTMENT DEVICES of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

670038664

PIPE FROM EVAPOURATOR TO UNION

from $271.57

1 670002658
PIPE FROM EVAPOURATOR TO UNION
Bespoke Assembly Number 6035538 - 99999999; Not available with: FOUR-ZONE AUTOMATIC CLIMA; UK; 		$351.50 1
TO

670104909

PIPE A.C. - COMPRESSOR

from $134.70

3 670003216
PIPE BETWEEN CONDENSER AND JUNCTION
IN STOCK 		$155.19 1
IN

670104810

PIPE FROM COMPRESSOR TO UNION

from $153.30

5 670009820
AC CONDENSER
Bespoke Assembly Number 0 - 6108222; EU AU CN US CD UK JP JRH IN SA KO;
IN STOCK 		$908.71 1
IN
5 670296020
A.C CONDENSER
PLEASE ALSO ORDER THE FIXING NUT PN 675000328 x1; Bespoke Assembly Number 6108223 - 99999999; EU AU CN US CD UK JP JRH IN SA KO; 		$884.79 1
TO
6 670038668
PRESSOSTAT
Not available with: FOUR-ZONE AUTOMATIC CLIMA;
IN STOCK 		$65.52 1
IN
7 954108
AC COMPRESSOR
IN STOCK 		$1,653.23 1
IN
8 291575
BRACKET 		$12.06 1
TO
9 299601
BRACKET 		$13.63 1
TO
10 675000122
O-RING 1/2" A/C
IN STOCK 		$8.91 2
IN
11 670005087
PLUG
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		$20.98 1
TO

675000315

NUT

from $1.98

13 675000456
SCREWM8X25
IF THE SCREW IS STOCKED OUT, PLEASE ORDER THE NEW A/C CONDENSER PN 670296020, TOGETHER WITH THE FIXING NUT 675000328 x1; Bespoke Assembly Number 0 - 6108222; EU AU CN US CD UK JP JRH IN SA KO; 		$5.25 1
TO

675000328

NUT

from $1.53

14 14307124
SCREWM8X90 		$20.27 2
TO
16 246208
SCREWM8X90 		$20.38 1
TO
17 11193874
WASHERD.8.4-16X1.4
IN STOCK 		$1.54 2
IN
18 673000010
DEHYDRATOR FILTER KIT
ARRIVING SOON 		$268.80 1
AS
19 11186374
WASHERD.10-20X2 		$2.87 1
TO

320345

BRACKET ASSEMBLY

from $35.11

21 303438
CLIP 		$13.63 2
TO
22 311689
SUPPORT 		$99.87 1
TO
23 265097
SCREWM8X40 		$6.40 2
TO
24 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
IN STOCK 		$2.81 1
IN
25 675000249
SCREW 		$1.57 1
TO

675000123

3/4" SEAL

from $9.42

28 675000314
SCREW 		$1.53 1
TO

675000121

3/8" SEAL

from $7.05

32 675000119
O-RING 68 x 187
IN STOCK 		$2.25 1
IN
33 675000306
O.R. GASKET13,6x2,43
IN STOCK 		$2.19 1
IN
36 670100149
SOUNDPROOFING ELEMENT
EU CN US CD JP ME KO; 		$8.82 1
TO
36 670100150
SOUNDPROOFING ELEMENT
AU UK JRH IN SA; 		$12.39 1
TO
37 670039321
SOUNDPROOFING ELEMENT
EU CN US CD JP ME KO; 		$19.05 1
TO
37 670039322
SOUNDPROOFING ELEMENT
AU UK JRH IN SA; 		$12.39 1
TO
39 320597
CLIP 		- 1
PE
 Enquire
40 14058421
NUT 		$2.33 1
TO
41 673015590
ECV VALVE WITH SEEGER RING 		$85.76 1
TO

673009426

PLUG

from $31.96
