Additional Air System

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - ADDITIONAL AIR SYSTEM

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
287732 MODULATOR SOLENOID VALVE $87.26 ARRIVING SOON
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.81 IN STOCK
Photo Part No Description Price (each) Stock
330968 WG-DV CONTROL PIPES $25.94 To Order
330968 WG-DV CONTROL PIPES $25.94 To Order
Photo Part No Description Price (each) Stock
899482 VACUUM PUMP $814.71 To Order
899482 VACUUM PUMP $814.71 To Order
Photo Part No Description Price (each) Stock
13125070 COLLAR $1.83 To Order
Photo Part No Description Price (each) Stock
890661 LH WG-DV CONTROL PIPE $189.44 To Order
Photo Part No Description Price (each) Stock
231616 SCREWM6X14 $2.33 To Order
Photo Part No Description Price (each) Stock
890660 RH WG-DV CONTROL PIPE $196.01 To Order
Photo Part No Description Price (each) Stock
226603 CLIP $2.74 To Order
Photo Part No Description Price (each) Stock
308088 BRACKET ASSEMBLY $10.48 To Order
Photo Part No Description Price (each) Stock
291679 BRACKET ASSEMBLY $12.06 To Order
Photo Part No Description Price (each) Stock
292193 CLIP $5.75 To Order
Photo Part No Description Price (each) Stock
330969 VACUUM PIPE ASSEMBLY $290.19 To Order
330969 VACUUM PIPE ASSEMBLY $290.19 To Order
Photo Part No Description Price (each) Stock
231622 SCREWM6X35 $1.24 To Order
Photo Part No Description Price (each) Stock
899483 GASKET $49.18 To Order
899483 GASKET $49.18 To Order
Photo Part No Description Price (each) Stock
302144 BRACKET ASSEMBLY $12.06 To Order
Photo Part No Description Price (each) Stock
292112 CLIP $1.92 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.68 IN STOCK
Photo Part No Description Price (each) Stock
334149 BRACKET ASSEMBLY $15.57 To Order
Photo Part No Description Price (each) Stock
13125170 COLLAR $2.74 To Order

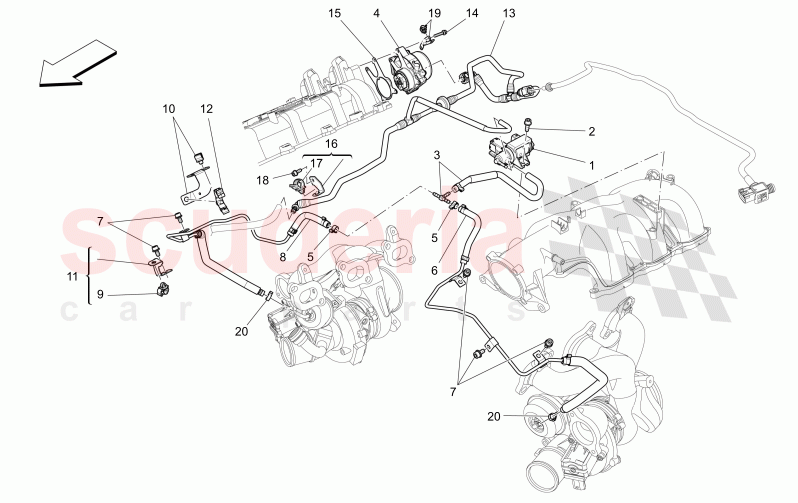

ADDITIONAL AIR SYSTEM of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 287732
MODULATOR SOLENOID VALVE
ARRIVING SOON 		$87.26 1
AS
2 231617
SCREW M6 X 18
IN STOCK 		$2.81 2
IN

330968

WG-DV CONTROL PIPES

from $25.94

899482

VACUUM PUMP

from $814.71

5 13125070
COLLAR 		$1.83 2
TO
6 890661
LH WG-DV CONTROL PIPE 		$189.44 1
TO
7 231616
SCREWM6X14 		$2.33 6
TO
8 890660
RH WG-DV CONTROL PIPE 		$196.01 1
TO
9 226603
CLIP
Bespoke Engine Number 0 - 200334; 		$2.74 1
TO
10 308088
BRACKET ASSEMBLY 		$10.48 1
TO
11 291679
BRACKET ASSEMBLY
Bespoke Engine Number 0 - 200334; 		$12.06 1
TO
12 292193
CLIP 		$5.75 1
TO

330969

VACUUM PIPE ASSEMBLY

from $290.19

14 231622
SCREWM6X35 		$1.24 4
TO

899483

GASKET

from $49.18

16 302144
BRACKET ASSEMBLY
Bespoke Engine Number 200335 - ZZZZZZZZ; 		$12.06 1
TO
17 292112
CLIP
Bespoke Engine Number 200335 - ZZZZZZZZ; 		$1.92 1
TO
18 233600
SCREW M6 X 12
IN STOCK 		$2.68 1
IN
19 334149
BRACKET ASSEMBLY 		$15.57 1
TO
20 13125170
COLLAR 		$2.74 2
TO
