Fuel Pumps And Connection Lines

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670003733 FUEL LEVEL GAUGE RACK $489.24 IN STOCK
Photo Part No Description Price (each) Stock
670178911 LH FUEL PUMP $639.92 IN STOCK
670178911 LH FUEL PUMP $639.92 IN STOCK
Photo Part No Description Price (each) Stock
670003258 INSPECTION COVER $19.76 To Order
Photo Part No Description Price (each) Stock
670001397 RING NUT $50.06 To Order
Photo Part No Description Price (each) Stock
670009292 DAMPER $3.62 To Order
Photo Part No Description Price (each) Stock
670033279 CLIP $3.15 To Order
Photo Part No Description Price (each) Stock
670105399 UNDERFLOOR FUEL PIPES $205.87 To Order
Photo Part No Description Price (each) Stock
670103707 FRONT UNDERFLOOR FUEL PIPES $170.84 To Order
Photo Part No Description Price (each) Stock
670005082 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
675000465 SCREWM 5x12 $1.36 To Order
Photo Part No Description Price (each) Stock
675000452 BLOCK $1.36 To Order
Photo Part No Description Price (each) Stock
670108532 ENGINE COMPARTMENT FUEL PIPES $22.89 To Order
Photo Part No Description Price (each) Stock
670001398 FUEL PUMP GASKET $23.05 To Order
Photo Part No Description Price (each) Stock
670174329 FRONT FUEL PIPE GUARD $120.22 To Order
Photo Part No Description Price (each) Stock
670100118 CLIP $3.18 To Order
Photo Part No Description Price (each) Stock
670105401 COMPLETE FUEL DELIVERY TUBE $41.51 To Order
Photo Part No Description Price (each) Stock
670030163 FRONT FUEL PIPE GUARD $9.76 To Order
Photo Part No Description Price (each) Stock
675000173 SCREWM6X16 $2.25 To Order
Photo Part No Description Price (each) Stock
675000796 SCREW $3.10 To Order

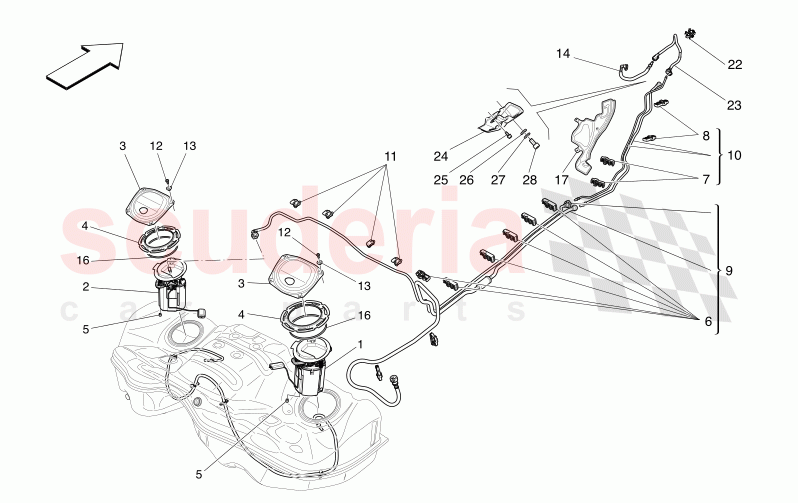

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670003733
FUEL LEVEL GAUGE RACK
IN STOCK 		$489.24 1
IN

670178911

LH FUEL PUMP

from $639.92

3 670003258
INSPECTION COVER 		$19.76 2
TO
4 670001397
RING NUT 		$50.06 2
TO
5 670009292
DAMPER 		$3.62 8
TO
6 670033279
CLIP 		$3.15 2
TO
9 670105399
UNDERFLOOR FUEL PIPES 		$205.87 1
TO
10 670103707
FRONT UNDERFLOOR FUEL PIPES 		$170.84 1
TO
11 670005082
CLIP 		$1.77 4
TO
12 675000465
SCREWM 5x12
Bespoke Assembly Number 0 - 6113262; 		$1.36 8
TO
13 675000452
BLOCK 		$1.36 8
TO
14 670108532
ENGINE COMPARTMENT FUEL PIPES
Bespoke Assembly Number 6079467 - 99999999; 		$22.89 1
TO
16 670001398
FUEL PUMP GASKET 		$23.05 2
TO
17 670174329
FRONT FUEL PIPE GUARD
Bespoke Assembly Number 6083163 - 99999999; Available with: EU6D Final specific Korea / USA Not available with: EU6D Final, EU6C MY19 / EU6D-Temp MY20, CHINA 6B EMISSION; 		$120.22 1
TO
22 670100118
CLIP 		$3.18 1
TO
23 670105401
COMPLETE FUEL DELIVERY TUBE 		$41.51 1
TO
24 670030163
FRONT FUEL PIPE GUARD 		$9.76 1
TO
25 675000173
SCREWM6X16 		$2.25 1
TO
28 675000796
SCREW
Bespoke Assembly Number 6074589 - 99999999; 		$3.10 1
TO
