Cooling System: Nourice And Lines

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 01712

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV - COOLING SYSTEM: NOURICE AND LINES (01712)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001614 COOLANT RESERVOIR $76.62 To Order
Photo Part No Description Price (each) Stock
675001143 TANK PLUG $20.63 To Order
Photo Part No Description Price (each) Stock
670156384 PIPE $35.69 To Order
Photo Part No Description Price (each) Stock
670161487 RADIATOR WATER OUTPUT SLEEVE $173.01 To Order
Photo Part No Description Price (each) Stock
675001749 RADIATOR WATER INLET PIPE $48.30 To Order
Photo Part No Description Price (each) Stock
670179810 BRACKET $38.36 To Order
Photo Part No Description Price (each) Stock
670219267 ENGINE HEAD OUTLET WATER PIPE $193.83 To Order
670054428 ENGINE HEAD OUTLET WATER PIPE $129.22 To Order
670054428 ENGINE HEAD OUTLET WATER PIPE $129.22 To Order
Photo Part No Description Price (each) Stock
670175677 PIPE FROM ENGINE TO THERMOSTATIC VALVE $19.50 To Order
Photo Part No Description Price (each) Stock
670053671 PIPE BETWEEN SECONDARY RADIATOR AND PUMP $360.28 To Order
Photo Part No Description Price (each) Stock
675001472 WATER PUMP OUTLET HOSE $26.62 To Order
Photo Part No Description Price (each) Stock
675000958 TUBE ENGINE COOLANT $86.29 To Order
Photo Part No Description Price (each) Stock
675001754 HEATER WATER DELIVERY SLEEVE $31.75 To Order
Photo Part No Description Price (each) Stock
675001808 WATER RETURN SLEEVE FROM HEATER $42.58 To Order
Photo Part No Description Price (each) Stock
675001144 THERMOSTATIC VALVE $346.04 To Order
Photo Part No Description Price (each) Stock
675001762 BRACKET $20.63 To Order
Photo Part No Description Price (each) Stock
675001048 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
675000794 NUT $1.69 To Order
Photo Part No Description Price (each) Stock
675001117 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
675001129 COLLAR $2.25 To Order
Photo Part No Description Price (each) Stock
675001119 SCREW $0.88 To Order
Photo Part No Description Price (each) Stock
675001923 COLLAR $1.82 To Order
Photo Part No Description Price (each) Stock
675001004 NUT $2.28 To Order
Photo Part No Description Price (each) Stock
675001003 WATER PIPE SEAL $23.39 To Order
Photo Part No Description Price (each) Stock
675000947 TEMPERATURE SENSOR $104.41 To Order
Photo Part No Description Price (each) Stock
675000959 SEAL RING $4.34 To Order
Photo Part No Description Price (each) Stock
675000960 SCREW $3.62 To Order
Photo Part No Description Price (each) Stock
675001838 CLIP $3.71 To Order
Photo Part No Description Price (each) Stock
675001809 CLIP $3.12 To Order
Photo Part No Description Price (each) Stock
675001916 COLLAR $1.98 IN STOCK
Photo Part No Description Price (each) Stock
675000076 CLIP $0.97 IN STOCK
Photo Part No Description Price (each) Stock
675000949 SCREW $3.10 To Order
Photo Part No Description Price (each) Stock
675000950 SCREW $2.19 To Order
Photo Part No Description Price (each) Stock
675001127 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
675001119 SCREW $0.88 To Order
Photo Part No Description Price (each) Stock
670178299 VENT PIPE $29.24 To Order
670309803 VENT PIPE $29.24 To Order
670309803 VENT PIPE $29.24 To Order
Photo Part No Description Price (each) Stock
675000945 GASKET $4.39 To Order
Photo Part No Description Price (each) Stock
675001793 RIVET $2.25 To Order
Photo Part No Description Price (each) Stock
670181371 BRACKET $5.61 To Order
Photo Part No Description Price (each) Stock
675001629 SCREW $1.74 To Order
Photo Part No Description Price (each) Stock
675001014 SCREW $2.63 To Order
Photo Part No Description Price (each) Stock
675000372 COLLARD.20,5 $1.94 IN STOCK
Photo Part No Description Price (each) Stock
675000946 COOLING MANIFOLD $142.35 To Order
Photo Part No Description Price (each) Stock
675001609 VENT PIPE $23.55 To Order
Photo Part No Description Price (each) Stock
675000961 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
675001974 SCREW $0.98 To Order
Photo Part No Description Price (each) Stock
675001973 SCREW $1.24 To Order
View All

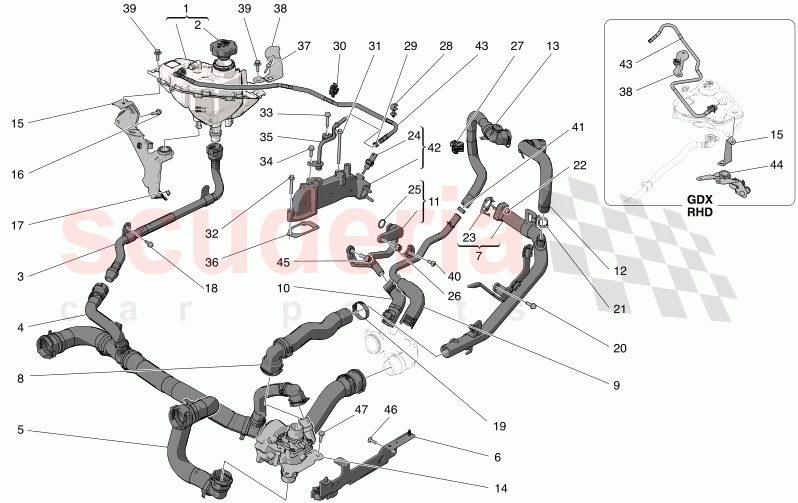

COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001614
COOLANT RESERVOIR
EU CN US JP ME KO N0; 		$76.62 1
2 675001143
TANK PLUG 		$20.63 1
3 670156384
PIPE
EU CN US JP ME KO N0; 		$35.69 1
4 670161487
RADIATOR WATER OUTPUT SLEEVE
EU CN US JP ME KO N0; 		$173.01 1
5 675001749
RADIATOR WATER INLET PIPE 		$48.30 1
6 670179810
BRACKET 		$38.36 1
7 670219267
ENGINE HEAD OUTLET WATER PIPE
Bespoke Assembly Number 0 - 2036903; EU CN US JP ME KO N0; 		$193.83 1
7 670054428
ENGINE HEAD OUTLET WATER PIPE
ORDER ONLY IF THE COMPLETE ENGINE PN 670054763 AND/OR THE LONG BLOCK PN 673016397 HAS BEEN REPLACED ON THE VEHICLE; Bespoke Assembly Number 0 - 2036903; EU CN US JP ME KO N0; 		$129.22 1
7 670054428
ENGINE HEAD OUTLET WATER PIPE
Bespoke Assembly Number 2036904 - 99999999; EU CN US JP ME KO N0; 		$129.22 1
8 670175677
PIPE FROM ENGINE TO THERMOSTATIC VALVE 		$19.50 1
9 670053671
PIPE BETWEEN SECONDARY RADIATOR AND PUMP 		$360.28 1
10 675001472
WATER PUMP OUTLET HOSE 		$26.62 1
11 675000958
TUBE ENGINE COOLANT 		$86.29 1
12 675001754
HEATER WATER DELIVERY SLEEVE 		$31.75 1
13 675001808
WATER RETURN SLEEVE FROM HEATER 		$42.58 1
14 675001144
THERMOSTATIC VALVE 		$346.04 1
15 675001762
BRACKET
EU CN US JP ME KO N0; 		$20.63 1
16 675001048
SCREW
EU CN US JP ME KO N0; 		$0.77 1
17 675000794
NUT
EU CN US JP ME KO N0; 		$1.69 2
18 675001117
SCREW
EU CN US JP ME KO N0; 		$1.23 2
19 675001129
COLLAR 		$2.25 1
20 675001119
SCREW 		$0.88 2
21 675001923
COLLAR 		$1.82 1
22 675001004
NUT 		$2.28 2
23 675001003
WATER PIPE SEAL 		$23.39 1
24 675000947
TEMPERATURE SENSOR 		$104.41 1
25 675000959
SEAL RING 		$4.34 1
26 675000960
SCREW 		$3.62 1
27 675001838
CLIP 		$3.71 1
28 675001809
CLIP
EU CN US JP ME KO N0; 		$3.12 1
29 675001916
COLLAR
IN STOCK 		$1.98 1
30 675000076
CLIP
EU CN US JP ME KO N0;
IN STOCK 		$0.97 1
31 675000949
SCREW 		$3.10 3
32 675000950
SCREW 		$2.19 1
33 675001127
SCREW 		$1.23 1
34 675001119
SCREW 		$0.88 1
35 670178299
VENT PIPE
Bespoke Assembly Number 0 - 2036903; 		$29.24 1
35 670309803
VENT PIPE
ORDER ONLY IF THE COMPLETE ENGINE PN 670054763 AND/OR THE LONG BLOCK PN 673016397 HAS BEEN REPLACED ON THE VEHICLE; Bespoke Assembly Number 0 - 2036903; 		$29.24 1
35 670309803
VENT PIPE
Bespoke Assembly Number 2036904 - 99999999; 		$29.24 1
36 675000945
GASKET 		$4.39 1
37 675001793
RIVET
EU CN US JP ME KO N0; 		$2.25 1
38 670181371
BRACKET
EU CN US JP ME KO N0; 		$5.61 1
39 675001629
SCREW
EU CN US JP ME KO N0; 		$1.74 2
40 675001014
SCREW 		$2.63 1
41 675000372
COLLARD.20,5
IN STOCK 		$1.94 1
42 675000946
COOLING MANIFOLD 		$142.35 1
43 675001609
VENT PIPE
EU CN US JP ME KO N0; 		$23.55 1
45 675000961
SCREW 		$2.74 1
46 675001974
SCREW 		$0.98 2
47 675001973
SCREW 		$1.24 2
48 670005736
TEMPERATURE SENSOR
IN STOCK 		$20.42 1
