Timing

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 01241

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV - TIMING (01241)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053565 PRIMARY TIMING DRIVE KIT $317.15 ARRIVING SOON
Photo Part No Description Price (each) Stock
675000905 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
675000880 SCREW $1.56 To Order
Photo Part No Description Price (each) Stock
675000904 SCREW $3.62 To Order
Photo Part No Description Price (each) Stock
675000906 BUSHING $3.19 To Order
Photo Part No Description Price (each) Stock
675002272 SECONDARY TIMING DRIVE KIT $259.53 To Order
675002272 SECONDARY TIMING DRIVE KIT $259.53 To Order
Photo Part No Description Price (each) Stock
675000879 SCREW $1.95 To Order
Photo Part No Description Price (each) Stock
670053447 FRONT COVER $219.02 To Order
670054535 FRONT COVER $219.02 To Order
Photo Part No Description Price (each) Stock
675001153 GASKET $27.74 To Order
675230751 GASKET $27.74 To Order
Photo Part No Description Price (each) Stock
675000870 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
675000871 STUD $5.17 To Order
View All

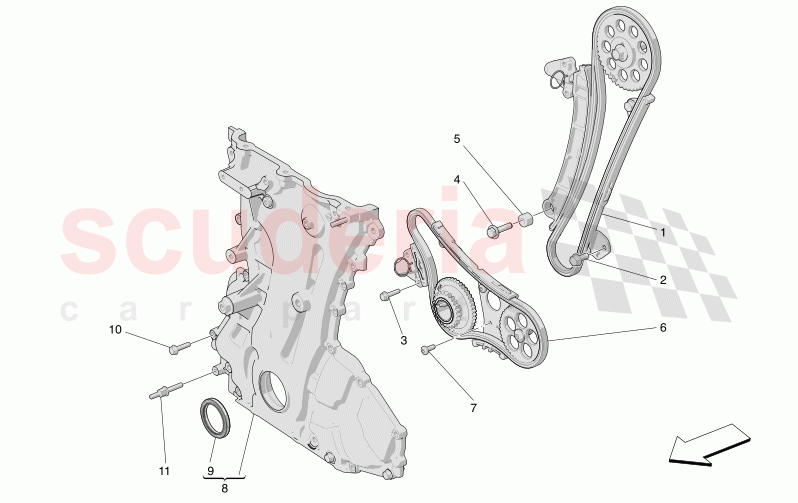

TIMING of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053565
PRIMARY TIMING DRIVE KIT
ARRIVING SOON 		$317.15 1
2 675000905
SCREW 		$1.36 2
3 675000880
SCREW 		$1.56 4
4 675000904
SCREW 		$3.62 1
5 675000906
BUSHING 		$3.19 1
6 675002272
SECONDARY TIMING DRIVE KIT
Bespoke Engine Number 0 - 1708939; 		$259.53 1
6 675002272
SECONDARY TIMING DRIVE KIT 		$259.53 1
7 675000879
SCREW 		$1.95 3
8 670053447
FRONT COVER
Bespoke Engine Number 0 - 1969299; 		$219.02 1
8 670054535
FRONT COVER
Bespoke Engine Number 1969300 - ZZZZZZZZ; 		$219.02 1
9 675001153
GASKET
Bespoke Engine Number 0 - 1969299; 		$27.74 1
9 675230751
GASKET
Bespoke Engine Number 1969300 - ZZZZZZZZ; 		$27.74 1
10 675000870
SCREW 		$1.36 18
11 675000871
STUD 		$5.17 3
