Front Electric Axle - Powertrain

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Find Your Part

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - FRONT ELECTRIC AXLE - POWERTRAIN

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670304426 FRONT ELECTRIC TRACTION MODULE $4,562.22 To Order
670353226 FRONT ELECTRIC TRACTION MODULE Enquire To Order
Photo Part No Description Price (each) Stock
670299501 RH ENGINE BUSHING $308.80 To Order
Photo Part No Description Price (each) Stock
670178167 LH ENGINE BUSHING $308.80 To Order
Photo Part No Description Price (each) Stock
670178944 BRACKET $45.59 To Order
Photo Part No Description Price (each) Stock
670219869 WIRING SUPPORT BRACKET $6.87 To Order
Photo Part No Description Price (each) Stock
670295648 GROUND LEAD $37.64 To Order
Photo Part No Description Price (each) Stock
670214868 TWIN SCREW $2.07 To Order
Photo Part No Description Price (each) Stock
675001096 NUT $0.77 To Order
Photo Part No Description Price (each) Stock
670179007 SCREW $6.76 To Order
Photo Part No Description Price (each) Stock
675001345 SCREW $2.45 To Order
Photo Part No Description Price (each) Stock
670179005 SCREW $6.04 To Order
Photo Part No Description Price (each) Stock
675001685 NUT $7.37 To Order
Photo Part No Description Price (each) Stock
670159141 SCREW $6.76 To Order
Photo Part No Description Price (each) Stock
670307980 VENT VALVE $177.40 To Order
Photo Part No Description Price (each) Stock
670307991 COMPLETE OIL CAP Enquire To Order
Photo Part No Description Price (each) Stock
670307992 WASHER $19.42 To Order
Photo Part No Description Price (each) Stock
670307990 COOLANT OUTLET FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
670307994 UPPER COVER Enquire To Order
Photo Part No Description Price (each) Stock
670307998 COVER Enquire To Order
Photo Part No Description Price (each) Stock
670307999 SCREW $33.17 To Order
Photo Part No Description Price (each) Stock
670307997 GASKET $68.98 To Order
Photo Part No Description Price (each) Stock
670307986 SCREW $18.56 To Order
Photo Part No Description Price (each) Stock
670307993 SCREW $31.24 To Order
Photo Part No Description Price (each) Stock
670307995 GASKET $44.75 To Order

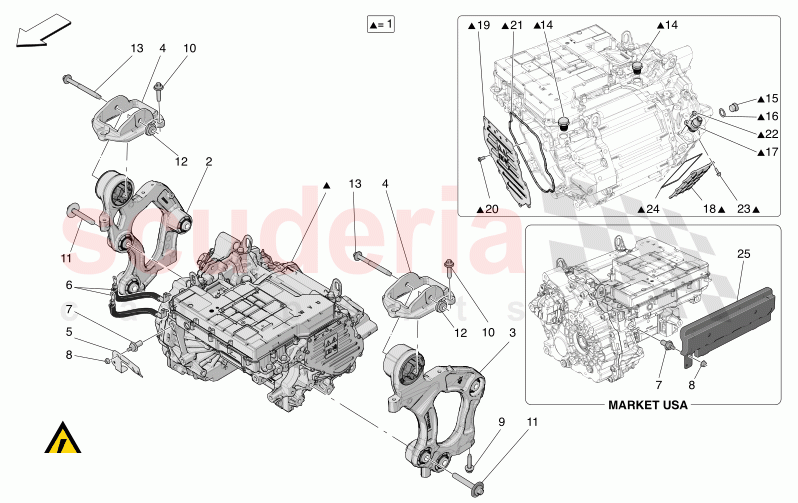

FRONT ELECTRIC AXLE - POWERTRAIN of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670304426
FRONT ELECTRIC TRACTION MODULE
Not available with: AWD DISCONNECT; EU AU US UK JP ME JRH IN KO; 		$4,562.22 1
TO
1 670353226
FRONT ELECTRIC TRACTION MODULE
Available with: AWD DISCONNECT ; EU AU US UK JP ME JRH IN KO; 		- 1
PE
 Enquire
2 670299501
RH ENGINE BUSHING 		$308.80 1
TO
3 670178167
LH ENGINE BUSHING 		$308.80 1
TO
4 670178944
BRACKET 		$45.59 2
TO
5 670219869
WIRING SUPPORT BRACKET
EU AU CN UK JP ME JRH IN KO N0 N8; 		$6.87 1
TO
6 670295648
GROUND LEAD 		$37.64 2
TO
7 670214868
TWIN SCREW
EU AU CN UK JP ME JRH IN KO N0 N8; 		$2.07 1
TO
8 675001096
NUT
EU AU CN UK JP ME JRH IN KO N0 N8; 		$0.77 1
TO
9 670179007
SCREW 		$6.76 2
TO
10 675001345
SCREW 		$2.45 6
TO
11 670179005
SCREW 		$6.04 6
TO
12 675001685
NUT 		$7.37 2
TO
13 670159141
SCREW 		$6.76 2
TO
14 670307980
VENT VALVE 		$177.40 2
TO
15 670307991
COMPLETE OIL CAP 		- 1
PE
 Enquire
16 670307992
WASHER 		$19.42 1
TO
17 670307990
COOLANT OUTLET FLANGE 		- 1
PE
 Enquire
18 670307994
UPPER COVER 		- 1
PE
 Enquire
19 670307998
COVER 		- 1
PE
 Enquire
20 670307999
SCREW 		$33.17 11
TO
21 670307997
GASKET 		$68.98 1
TO
22 670307986
SCREW 		$18.56 1
TO
23 670307993
SCREW 		$31.24 8
TO
24 670307995
GASKET 		$44.75 1
TO
