Front Seats: Trim Panels

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

Find Your Part

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - FRONT SEATS: TRIM PANELS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670225041 FRONT LH SEAT ASSEMBLY Enquire To Order
670225042 FRONT LH SEAT ASSEMBLY Enquire To Order
670225041 FRONT LH SEAT ASSEMBLY Enquire To Order
...and 109 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673013495 LH FRONT SEAT BACK PADDING Enquire To Order
673013496 LH FRONT SEAT BACK PADDING Enquire To Order
673013497 LH FRONT SEAT BACK PADDING Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673013459 CUSHION FOAM PAD DRIVER SIDE $240.00 To Order
673013460 CUSHION FOAM PAD PASSENGER SIDE $240.00 To Order
Photo Part No Description Price (each) Stock
673013599 LH WRAPPED BACKPLATE Enquire To Order
673013612 RH WRAPPED BACKPLATE Enquire To Order
Photo Part No Description Price (each) Stock
673013605 lh backseat panel $153.54 To Order
673013618 rh backseat panel $153.54 To Order
Photo Part No Description Price (each) Stock
673013433 FRONT PROTECTION COVER TRIM Enquire To Order
Photo Part No Description Price (each) Stock
673013437 REAR PROTECTION COVER TRIM Enquire To Order
Photo Part No Description Price (each) Stock
673013585 LH WRAPPED SIDESHIELD CARTER Enquire To Order
673013592 RH WRAPPED SIDESHIELD CARTER Enquire To Order
Photo Part No Description Price (each) Stock
673013591 LH WRAPPED SIDESHIELD CARTER $47.85 To Order
673013598 RH WRAPPED SIDESHIELD CARTER $47.85 To Order
Photo Part No Description Price (each) Stock
673013448 INNER BACKREST SHIELD LH $233.30 To Order
673013449 INNER BACKREST SHIELD RH $233.30 To Order
Photo Part No Description Price (each) Stock
673013582 CUT-OUT BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
673013606 LH EASY ENTRY PLATE Enquire To Order
673013619 RH EASY ENTRY PLATE Enquire To Order
Photo Part No Description Price (each) Stock
673013625 LH AIR PASSAGE BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
673013463 CUSHION LENGTH ADJUSTMENT PADDING $84.73 To Order
Photo Part No Description Price (each) Stock
673013631 RH AIR PASSAGE BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
673013637 LH RELEASE LEVER Enquire To Order
673013643 RH RELEASE LEVER Enquire To Order
Photo Part No Description Price (each) Stock
T673013578 NECK WARMER BEZEL Enquire To Order
Photo Part No Description Price (each) Stock
673013581 NECK WARMER GRID Enquire To Order

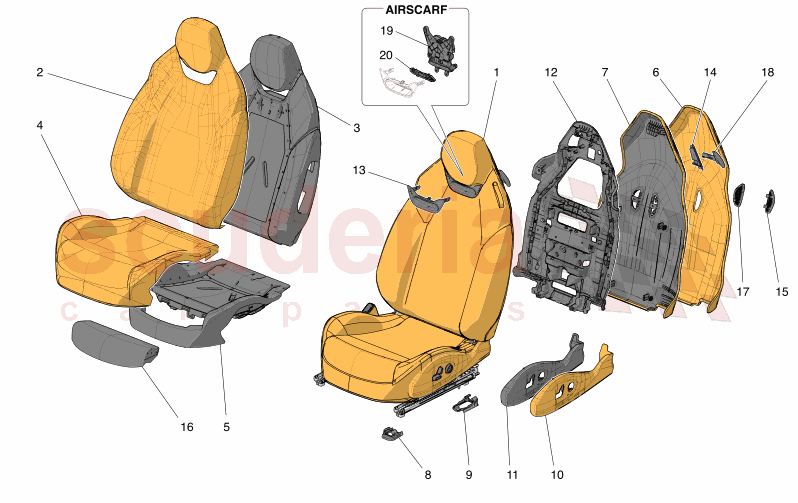

FRONT SEATS: TRIM PANELS of Maserati Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart

670225041

FRONT LH SEAT ASSEMBLY

 -

670225042

FRONT LH SEAT ASSEMBLY

 -

670225027

FRONT LH SEAT ASSEMBLY

 -

670225029

FRONT LH SEAT ASSEMBLY

 -

670225032

FRONT LH SEAT ASSEMBLY

 -

670225034

FRONT LH SEAT ASSEMBLY

 -
1 670225049
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION 		- 1
PE
 Enquire
1 670225050
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available 		- 1
PE
 Enquire
1 670225039
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION SENSOR, FRONT SEATS 		- 1
PE
 Enquire
1 670225040
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POS 		- 1
PE
 Enquire

670225037

FRONT RH SEAT ASSEMBLY

 -

670225038

FRONT RH SEAT ASSEMBLY

 -

670225019

FRONT RH SEAT ASSEMBLY

 -

670225021

FRONT RH SEAT ASSEMBLY

 -

670225024

FRONT RH SEAT ASSEMBLY

 -

670225026

FRONT RH SEAT ASSEMBLY

 -
1 670226234
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: HEATED FRONT SEATS, SPORT PREMIUM BLACK LEATHER, 18-WAY POWER SPORT SEATS Not available with: AIRSCARF, SEATS TRACK POSITION SENSOR, FRONT SEATS - VENTILATED, STITCHED 		- 1
PE
 Enquire
1 670225045
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION 		- 1
PE
 Enquire
1 670225046
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available 		- 1
PE
 Enquire
1 670225036
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POS 		- 1
PE
 Enquire

670225099

FRONT LH SEAT ASSEMBLY

 -

670225100

FRONT LH SEAT ASSEMBLY

 -

670225085

FRONT LH SEAT ASSEMBLY

 -

670225087

FRONT LH SEAT ASSEMBLY

 -

670225090

FRONT LH SEAT ASSEMBLY

 -

670225092

FRONT LH SEAT ASSEMBLY

 -
1 670225107
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION 		- 1
PE
 Enquire
1 670225108
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available 		- 1
PE
 Enquire
1 670225097
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION SENSOR, FRONT SEATS 		- 1
PE
 Enquire
1 670225098
FRONT LH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POS 		- 1
PE
 Enquire

670225095

FRONT RH SEAT ASSEMBLY

 -

670225096

FRONT RH SEAT ASSEMBLY

 -

670225077

FRONT RH SEAT ASSEMBLY

 -

670225079

FRONT RH SEAT ASSEMBLY

 -

670225082

FRONT RH SEAT ASSEMBLY

 -

670225084

FRONT RH SEAT ASSEMBLY

 -
1 670225103
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION 		- 1
PE
 Enquire
1 670225104
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, STITCHED TRIDENT ON HEADREST, BEV INTERIOR UPHOLSTERY - ECONYL MATERIAL, 18-WAY POWER SPORT SEATS Not available 		- 1
PE
 Enquire
1 670225093
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POSITION SENSOR, FRONT SEATS - VENTILATED, STITCH 		- 1
PE
 Enquire
1 670225094
FRONT RH SEAT ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8002648 - 99999999; Available with: AIRSCARF, HEATED FRONT SEATS, FRONT SEATS - VENTILATED, FUORISERIE - BLACK WITH YELLOW STITCHING INTERIORS, 18-WAY POWER SPORT SEATS Not available with: SEATS TRACK POS 		- 1
PE
 Enquire
3 673013495
LH FRONT SEAT BACK PADDING
Available with: AIRSCARF, FRONT SEATS - VENTILATED ; 		- 1
PE
 Enquire
3 673013496
LH FRONT SEAT BACK PADDING
Not available with: AIRSCARF, FRONT SEATS - VENTILATED; 		- 1
PE
 Enquire
3 673013497
LH FRONT SEAT BACK PADDING
Available with: AIRSCARF Not available with: FRONT SEATS - VENTILATED; 		- 1
PE
 Enquire
3 673013498
LH FRONT SEAT BACK PADDING
Available with: FRONT SEATS - VENTILATED Not available with: AIRSCARF; 		- 1
PE
 Enquire
3 673013500
RH FRONT SEAT BACK PADDING
Not available with: AIRSCARF, FRONT SEATS - VENTILATED; 		- 1
PE
 Enquire
3 673013501
RH FRONT SEAT BACK PADDING
Available with: AIRSCARF Not available with: FRONT SEATS - VENTILATED; 		- 1
PE
 Enquire
3 673013502
RH FRONT SEAT BACK PADDING
Available with: FRONT SEATS - VENTILATED Not available with: AIRSCARF; 		- 1
PE
 Enquire
3 673013499
RH FRONT SEAT BACK PADDING
Available with: AIRSCARF, FRONT SEATS - VENTILATED ; 		- 1
PE
 Enquire
5 673013459
CUSHION FOAM PAD DRIVER SIDE 		$240.00 1
TO
5 673013460
CUSHION FOAM PAD PASSENGER SIDE 		$240.00 1
TO
6 673013599
LH WRAPPED BACKPLATE 		- 1
PE
 Enquire
6 673013612
RH WRAPPED BACKPLATE 		- 1
PE
 Enquire
7 673013605
lh backseat panel 		$153.54 1
TO
7 673013618
rh backseat panel 		$153.54 1
TO
8 673013433
FRONT PROTECTION COVER TRIM
Not available with: SEATS TRACK POSITION SENSOR; 		- 1
PE
 Enquire
9 673013437
REAR PROTECTION COVER TRIM 		- 1
PE
 Enquire
10 673013585
LH WRAPPED SIDESHIELD CARTER 		- 1
PE
 Enquire
10 673013592
RH WRAPPED SIDESHIELD CARTER 		- 1
PE
 Enquire
11 673013591
LH WRAPPED SIDESHIELD CARTER 		$47.85 1
TO
11 673013598
RH WRAPPED SIDESHIELD CARTER 		$47.85 1
TO
12 673013448
INNER BACKREST SHIELD LH 		$233.30 1
TO
12 673013449
INNER BACKREST SHIELD RH 		$233.30 1
TO
13 673013582
CUT-OUT BEZEL 		- 1
PE
 Enquire
14 673013606
LH EASY ENTRY PLATE 		- 1
PE
 Enquire
14 673013619
RH EASY ENTRY PLATE 		- 1
PE
 Enquire
15 673013625
LH AIR PASSAGE BEZEL 		- 1
PE
 Enquire
16 673013463
CUSHION LENGTH ADJUSTMENT PADDING 		$84.73 1
TO
17 673013631
RH AIR PASSAGE BEZEL 		- 1
PE
 Enquire
18 673013637
LH RELEASE LEVER 		- 1
PE
 Enquire
18 673013643
RH RELEASE LEVER 		- 1
PE
 Enquire
19 T673013578
NECK WARMER BEZEL
Available with: AIRSCARF ; 		- 1
PE
 Enquire
20 673013581
NECK WARMER GRID
Available with: AIRSCARF ; 		- 1
PE
 Enquire
