Underbody And Underfloor Guards

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW

Find Your Part

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW - UNDERBODY AND UNDERFLOOR GUARDS

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670217888 LH CENTER AERODYNAMIC UNDERFLOOR $196.01 To Order
Photo Part No Description Price (each) Stock
670217887 RH CENTER AERODYNAMIC UNDERFLOOR $196.01 To Order
Photo Part No Description Price (each) Stock
670219115 REAR AERODYNAMIC BOTTOM ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670295110 FRONT AERODYNAMIC COVER $94.94 To Order
Photo Part No Description Price (each) Stock
670158776 SHIELD $223.77 To Order
Photo Part No Description Price (each) Stock
670174622 BRACKET RETAINER $46.20 To Order
Photo Part No Description Price (each) Stock
670007383 FASTENER BUTTON $9.29 IN STOCK
Photo Part No Description Price (each) Stock
670158809 PAD $17.49 To Order
Photo Part No Description Price (each) Stock
670158810 REAR JACKING PAD $13.33 To Order
Photo Part No Description Price (each) Stock
675002263 SCREW M8X50 $1.85 To Order
Photo Part No Description Price (each) Stock
675001883 SCREW $1.48 To Order
Photo Part No Description Price (each) Stock
670174618 FIXING BRACKET $120.61 To Order
Photo Part No Description Price (each) Stock
675000432 SCREWM6X20 $2.54 To Order
Photo Part No Description Price (each) Stock
675000324 NUT $1.45 IN STOCK
Photo Part No Description Price (each) Stock
670174621 FIXING BRACKET $18.70 To Order
Photo Part No Description Price (each) Stock
670005384 SCREW $2.74 To Order
Photo Part No Description Price (each) Stock
670174619 BRACKET RETAINER $46.20 To Order
Photo Part No Description Price (each) Stock
670036972 SCREW $3.28 IN STOCK
Photo Part No Description Price (each) Stock
675002253 SCREW $1.48 To Order
Photo Part No Description Price (each) Stock
670216649 STAFFA MODULO FRONT END DX $14.11 To Order
Photo Part No Description Price (each) Stock
670216656 STAFFA MODULO FRONT END SX $14.11 To Order
Photo Part No Description Price (each) Stock
670181376 central front cover $196.01 To Order
Photo Part No Description Price (each) Stock
670219507 NUT M6 $6.02 To Order
Photo Part No Description Price (each) Stock
675000497 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
675000632 RETAINING CLIP $2.30 To Order
Photo Part No Description Price (each) Stock
675001358 SCREW $1.23 To Order
Photo Part No Description Price (each) Stock
670174607 BRACKET $7.47 To Order
Photo Part No Description Price (each) Stock
670295909 LH COVER $32.61 To Order
Photo Part No Description Price (each) Stock
670295908 rh cover $24.05 To Order

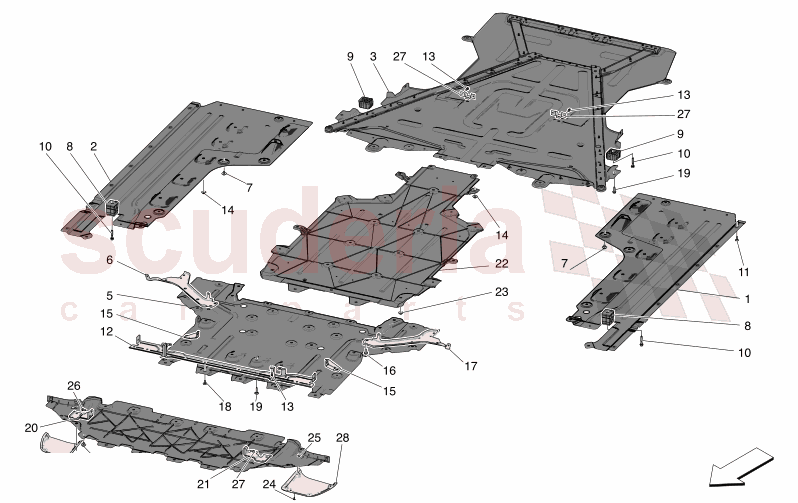

UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670217888
LH CENTER AERODYNAMIC UNDERFLOOR 		$196.01 1
TO
2 670217887
RH CENTER AERODYNAMIC UNDERFLOOR 		$196.01 1
TO
3 670219115
REAR AERODYNAMIC BOTTOM ASSEMBLY 		- 1
PE
 Enquire
4 670295110
FRONT AERODYNAMIC COVER 		$94.94 1
TO
5 670158776
SHIELD 		$223.77 1
TO
6 670174622
BRACKET RETAINER 		$46.20 1
TO
7 670007383
FASTENER BUTTON
IN STOCK 		$9.29 8
IN
8 670158809
PAD 		$17.49 2
TO
9 670158810
REAR JACKING PAD 		$13.33 2
TO
10 675002263
SCREW M8X50 		$1.85 4
TO
11 675001883
SCREW 		$1.48 14
TO
12 670174618
FIXING BRACKET 		$120.61 1
TO
13 675000432
SCREWM6X20 		$2.54 4
TO
14 675000324
NUT
IN STOCK 		$1.45 18
IN
15 670174621
FIXING BRACKET 		$18.70 2
TO
16 670005384
SCREW 		$2.74 4
TO
17 670174619
BRACKET RETAINER 		$46.20 1
TO
18 670036972
SCREW
IN STOCK 		$3.28 12
IN
19 675002253
SCREW 		$1.48 10
TO
20 670216649
STAFFA MODULO FRONT END DX 		$14.11 1
TO
21 670216656
STAFFA MODULO FRONT END SX 		$14.11 1
TO
22 670181376
central front cover 		$196.01 1
TO
23 670219507
NUT M6 		$6.02 11
TO
24 675000497
SCREW 		$1.36 5
TO
25 675000632
RETAINING CLIP 		$2.30 3
TO
26 675001358
SCREW 		$1.23 4
TO
27 670174607
BRACKET 		$7.47 2
TO
28 670295909
LH COVER 		$32.61 1
TO
29 670295908
rh cover 		$24.05 1
TO
