Name: LUBRICATION AND GEARBOX OIL COOLING
Rating: 4.4 (1 reviews)

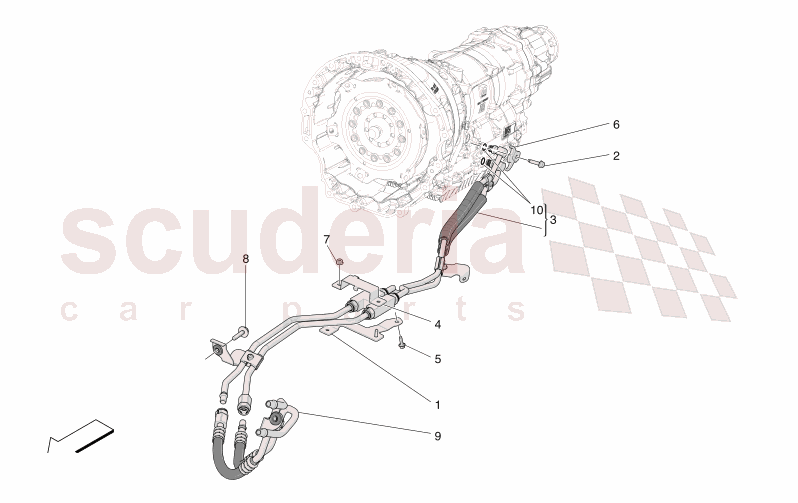

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670158488	BRACKET	$13.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675000397	SCREWTE M8	$10.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670158490	HOSE	$616.51	To Order

Photo	Part No	Description	Price (each)	Stock
	670159637	BRACKET	$10.12	To Order

Photo	Part No	Description	Price (each)	Stock
	675001119	SCREW	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	675001091	GEARBOX PIPES FIXING BRACKET	$8.08	To Order

Photo	Part No	Description	Price (each)	Stock
	675000794	NUT	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	675001078	SCREW	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	670295722	SHIFT OIL HOSE	$193.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14457081	O-RING D.2.62	$2.36	IN STOCK

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key
1	670158488	BRACKET	670158488 BRACKET	$13.99	1	TO
2	675000397	SCREWTE M8	675000397 SCREWTE M8	$10.24	1	TO
3	670158490	HOSE	670158490 HOSE	$616.51	1	TO
4	670159637	BRACKET	670159637 BRACKET	$10.12	1	TO
5	675001119	SCREW	675001119 SCREW	$0.88	3	TO
6	675001091	GEARBOX PIPES FIXING BRACKET	675001091 GEARBOX PIPES FIXING BRACKET	$8.08	1	TO
7	675000794	NUT	675000794 NUT	$1.69	2	TO
8	675001078	SCREW	675001078 SCREW	$2.19	2	TO
9	670295722	SHIFT OIL HOSE	670295722 SHIFT OIL HOSE	$193.83	1	TO
10	14457081	O-RING D.2.62 IN STOCK	14457081 O-RING D.2.62 IN STOCK	$2.36	2	IN

Lubrication And Gearbox Oil Cooling

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP
