Front Wheels Transmission

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP

Find Your Part

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP - FRONT WHEELS TRANSMISSION

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670154709 FRONT DIFFERENTIAL $1,428.33 To Order
Photo Part No Description Price (each) Stock
670154706 SHAFT $901.04 To Order
Photo Part No Description Price (each) Stock
670003772 PLATE $4.08 IN STOCK
Photo Part No Description Price (each) Stock
670302678 SCREW $2.47 To Order
670302678 SCREW $2.47 To Order
Photo Part No Description Price (each) Stock
670154265 ALL WHEEL DRIVE TRANSFER CASE $1,391.43 To Order
670311641 AWD TRANSFER CASE $1,530.68 To Order
Photo Part No Description Price (each) Stock
670158932 SHAFT $673.69 To Order
Photo Part No Description Price (each) Stock
670158929 SHAFT $605.84 To Order
Photo Part No Description Price (each) Stock
675001849 SCREW $2.78 To Order
Photo Part No Description Price (each) Stock
675001859 SCREW $3.27 To Order
Photo Part No Description Price (each) Stock
670175707 TRANSFER CASE CONTROL UNIT $560.35 To Order
670352683 TRANSFER CASE CONTROL UNIT $560.13 To Order
Photo Part No Description Price (each) Stock
675001850 SCREW $3.48 To Order
Photo Part No Description Price (each) Stock
675000138 NUT $10.15 IN STOCK
Photo Part No Description Price (each) Stock
670154710 PIPE $35.49 To Order
Photo Part No Description Price (each) Stock
670051525 BUSHING $29.67 To Order
Photo Part No Description Price (each) Stock
675002078 SCREW $6.50 To Order
Photo Part No Description Price (each) Stock
675000719 GASKET $3.15 To Order
Photo Part No Description Price (each) Stock
675001909 SCREW $1.68 To Order

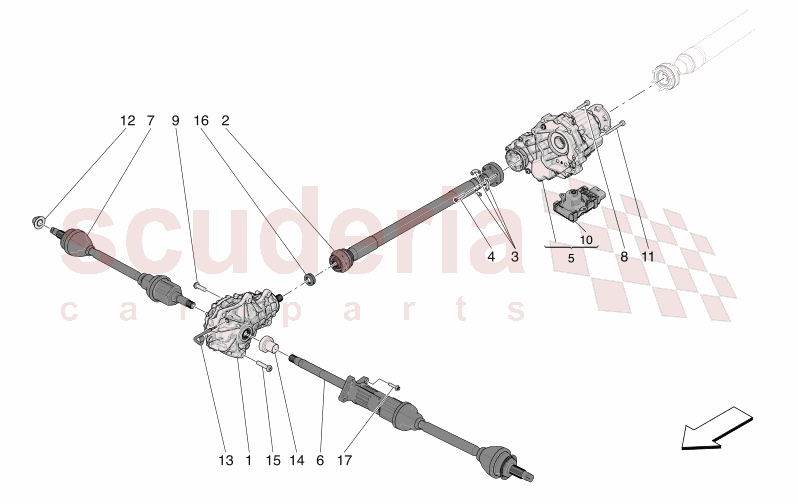

FRONT WHEELS TRANSMISSION of Maserati Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670154709
FRONT DIFFERENTIAL 		$1,428.33 1
TO
2 670154706
SHAFT 		$901.04 1
TO
3 670003772
PLATE
IN STOCK 		$4.08 3
IN

670302678

SCREW

from $2.47

5 670154265
ALL WHEEL DRIVE TRANSFER CASE
Bespoke Assembly Number 0 - 8003124; EU AU US UK JP ME JRH IN KO N0 N8; 		$1,391.43 1
TO
5 670311641
AWD TRANSFER CASE
Bespoke Assembly Number 8003125 - 99999999; EU AU US UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$1,530.68 1
TO
6 670158932
SHAFT 		$673.69 1
TO
7 670158929
SHAFT 		$605.84 1
TO
8 675001849
SCREW 		$2.78 5
TO
9 675001859
SCREW 		$3.27 4
TO
10 670175707
TRANSFER CASE CONTROL UNIT
Bespoke Assembly Number 0 - 8003124; EU AU US UK JP ME JRH IN KO N0 N8; 		$560.35 1
TO
10 670352683
TRANSFER CASE CONTROL UNIT
Bespoke Assembly Number 8003125 - 99999999; EU AU US UK JP ME JRH IN KO N0 N8 market.abbr.T0 market.abbr.TX; 		$560.13 1
TO
11 675001850
SCREW 		$3.48 3
TO
12 675000138
NUT
IN STOCK 		$10.15 2
IN
13 670154710
PIPE 		$35.49 1
TO
14 670051525
BUSHING 		$29.67 1
TO
15 675002078
SCREW 		$6.50 1
TO
16 675000719
GASKET 		$3.15 1
TO
17 675001909
SCREW 		$1.68 4
TO
