Name: ACTIVE CHARCOAL FILTER WITH DIAGNOSIS PUMP FOR FUEL DELIVERY SYSTEM
Rating: 4.4 (1 reviews)

ACTIVE CHARCOAL FILTER WITH DIAGNOSIS PUMP FOR FUEL DELIVERY SYSTEM of Lamborghini Lamborghini Urus (2019-2022)

View All

Lamborghini Urus (2019-2022) - ACTIVE CHARCOAL FILTER WITH DIAGNOSIS PUMP FOR FUEL DELIVERY SYSTEM (2010300)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M4201997G	BREATHER LINE	$500.47	To Order
	4M4201997Q	BREATHER LINE	$542.50	To Order

Photo	Part No	Description	Price (each)	Stock
	N10354503	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201369B	BRACKET	$37.59	To Order

Photo	Part No	Description	Price (each)	Stock
	N90071102	HEXAGON HEAD BOLT (COMBI)	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	7L0906243A	DIAGNOSIS PUMP FOR FUEL SYSTEM	$417.70	To Order
	7L0906243F	DIAGNOSIS PUMP FOR FUEL SYSTEM	$399.32	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0422379A	SPRING BAND CLAMP	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4M4906272	VENT HOSE	$437.41	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	$0.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8R0906621H	AIR FILTER	$33.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4M4201999C	VENT HOSE	$437.41	To Order

Photo	Part No	Description	Price (each)	Stock
	N91205601	HEXAGON BOLT	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007137	HOSE BRACKET	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4M4201799D	ACTIVATED CARBON CASING WITH ATTACHMENTS	$362.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201995T	BREATHER LINE	$83.56	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0201801A	ACTIVATED CHARCOAL CONTAINER	$313.95	To Order

Photo	Part No	Description	Price (each)	Stock
	4Z7721697A	BRACKET	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	4M4201782A	HEAT SHIELD	$1,050.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N90817003	HEXAGON SOCKET HEAD PANEL BOLT	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	$1.39	IN STOCK

View All

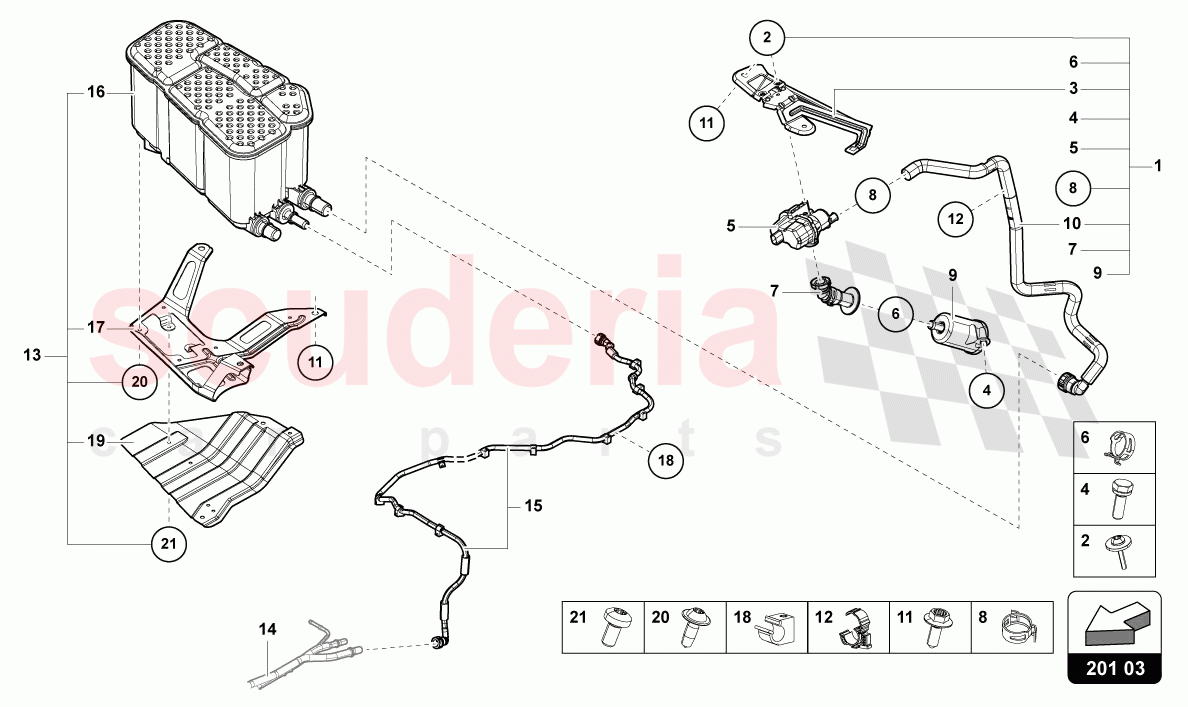

Diagram Tap to enlarge

Active Charcoal Filter With Diagnosis Pump For Fuel Delivery System

Lamborghini SUV Urus (2019-2022)

Illustration Number: 2010300

Lamborghini Urus (2019-2022) - ACTIVE CHARCOAL FILTER WITH DIAGNOSIS PUMP FOR FUEL DELIVERY SYSTEM (2010300)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	4M4201997G	BREATHER LINE	4M4201997G BREATHER LINE EMISSION STANDARD C6B	$500.47	1
1	4M4201997Q	BREATHER LINE	4M4201997Q BREATHER LINE EMISSION STANDARD LEV 3/TIER 3 125	$542.50	1
2	N10354503	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10354503 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) 5X10	$0.61	3
3	4M0201369B	BRACKET	4M0201369B BRACKET	$37.59	1
4	N90071102	HEXAGON HEAD BOLT (COMBI)	N90071102 HEXAGON HEAD BOLT (COMBI) M6X18	$1.77	1
5	7L0906243A	DIAGNOSIS PUMP FOR FUEL SYSTEM	7L0906243A DIAGNOSIS PUMP FOR FUEL SYSTEM EMISSION STANDARD C6B	$417.70	1
5	7L0906243F	DIAGNOSIS PUMP FOR FUEL SYSTEM	7L0906243F DIAGNOSIS PUMP FOR FUEL SYSTEM EMISSION STANDARD LEV 3/TIER 3 125	$399.32	1
6	4B0422379A	SPRING BAND CLAMP	4B0422379A SPRING BAND CLAMP 25X12	$2.77 MSRP: ~~7.13~~ (61.2% off)	2
7	4M4906272	VENT HOSE	4M4906272 VENT HOSE	$437.41	1
8	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP 23X12 IN STOCK	$0.91	2
9	8R0906621H	AIR FILTER	8R0906621H AIR FILTER	$33.51	1
10	4M4201999C	VENT HOSE	4M4201999C VENT HOSE	$437.41	1
11	N91205601	HEXAGON BOLT	N91205601 HEXAGON BOLT	$1.44	5
12	WHT007137	HOSE BRACKET	WHT007137 HOSE BRACKET	$1.51	2
13	4M4201799D	ACTIVATED CARBON CASING WITH ATTACHMENTS	4M4201799D ACTIVATED CARBON CASING WITH ATTACHMENTS	$362.53	1
15	4M0201995T	BREATHER LINE	4M0201995T BREATHER LINE RIGHT REAR	$83.56	1
16	4M0201801A	ACTIVATED CHARCOAL CONTAINER	4M0201801A ACTIVATED CHARCOAL CONTAINER	$313.95	1
18	4Z7721697A	BRACKET	4Z7721697A BRACKET	$6.82	13
19	4M4201782A	HEAT SHIELD	4M4201782A HEAT SHIELD	$1,050.84	1
20	N90817003	HEXAGON SOCKET HEAD PANEL BOLT	N90817003 HEXAGON SOCKET HEAD PANEL BOLT 6X17	$0.86	4
21	N10335206	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10335206 HEXAGON SOCKET FLAT HEAD BOLT M6X12 IN STOCK	$1.39	4
