Name: 1 set of fuel pipes with breather tube Fuel supply line Breather line
Rating: 4.7 (1 reviews)

Diagram
INFO

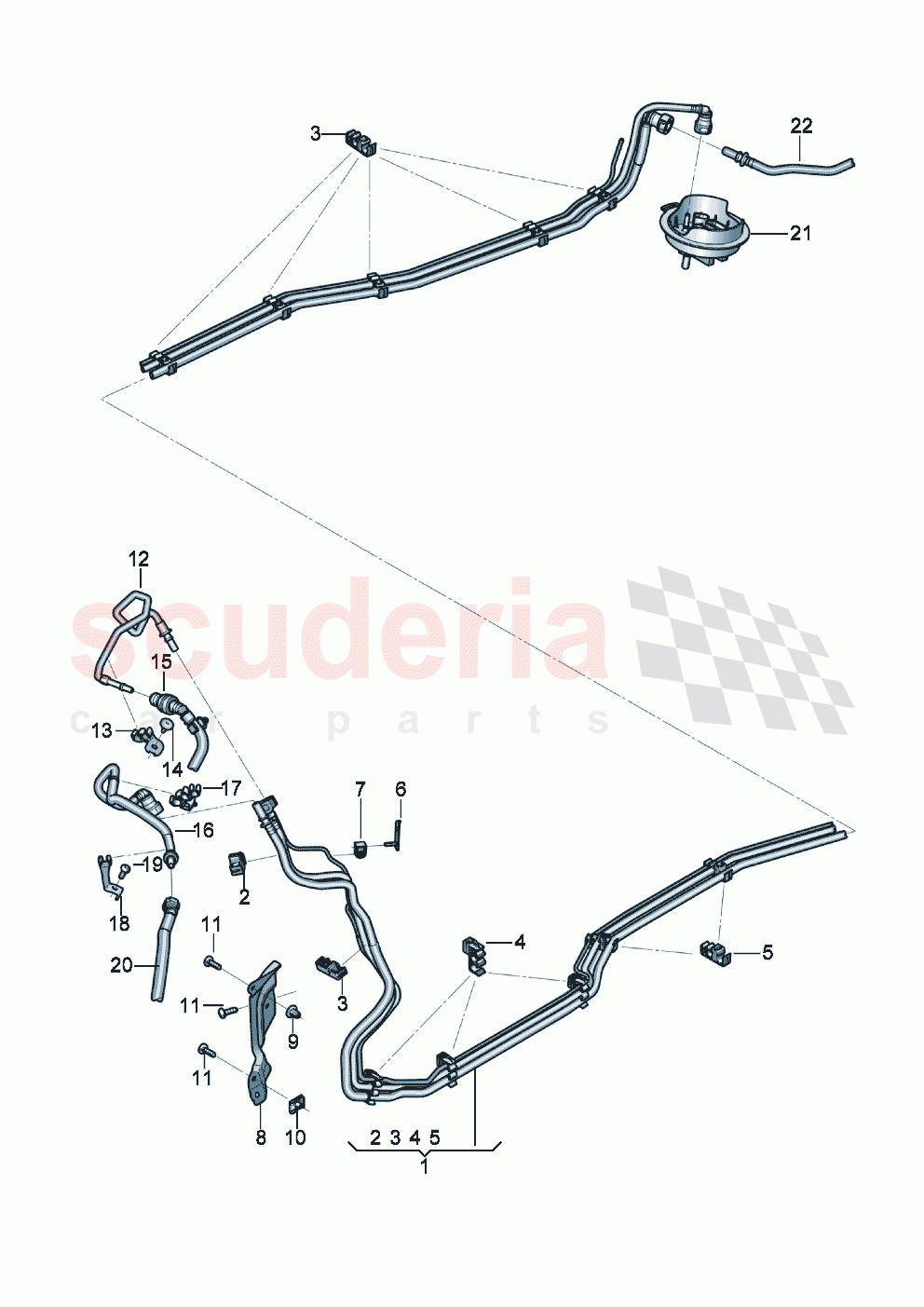

1 set of fuel pipes with breather tube Fuel supply line Breather line of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - 1 set of fuel pipes with breather tube Fuel supply line Breather line

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SE201080C	1 set of fuel lines for vehicles with coolant additional heater	$483.93	To Order
	3SE201080B	1 set of fuel lines D >> - 25.11.2024	$408.84	To Order
	3SE201080D	1 set of fuel lines D - 25.11.2024>>	$408.84	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	971201171AD	Securing clip	$52.40	To Order

Photo	Part No	Description	Price (each)	Stock
	971201171	Securing clip	$52.40	To Order

Photo	Part No	Description	Price (each)	Stock
	971201171A	Securing clip	$52.40	To Order

Photo	Part No	Description	Price (each)	Stock
	971201171T	Securing clip	$52.40	To Order

Photo	Part No	Description	Price (each)	Stock
	971 130 179 A	Retainer for fuel line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	95B611797	Clip	$2.03	To Order
	4B0 422 379	Spring band clamp	$3.12	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA201546A	Guard plate for fuel pipe	$40.48	To Order

Photo	Part No	Description	Price (each)	Stock
	N90817302	rivetted cap nut	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	N90168604	Speed nut	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	N 910 968 01	Hexagon socket flat head bolt	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	975130296A	fuel pipe	$212.75	To Order
	971130296	fuel pipe	$180.37	To Order

Photo	Part No	Description	Price (each)	Stock
	971130163A	Securing clip	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007730	shouldered bolt	$2.57	To Order
	WHT007730	shouldered bolt	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	975133366	Breather line	$111.79	To Order
	3SA 133 366 A	Purge-air line	Enquire	To Order
	971133366H	Breather line	$196.07	To Order

Photo	Part No	Description	Price (each)	Stock
	971130170A	Securing clip	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	971130389	Securing clip	$4.69	To Order
	971 130 389 B	Retainer for fuel line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N 910 968 01	Hexagon socket flat head bolt	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	971 130 179 A	Retainer for fuel line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0 422 379	Spring band clamp	$3.12	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	1	3SE201080C	1 set of fuel lines for vehicles with coolant additional heater	3SE201080C 1 set of fuel lines for vehicles with coolant additional heater PR:9M9,9M1	$483.93	1	TO
	3SE201080B		1 SET OF FUEL LINES D >> - 25.11.2024	from $408.84
1 1 set of fuel lines D >> - 25.11.2024 $408.84 1 TO 1 1 set of fuel lines D >> - 25.11.2024 $408.84 1 TO
	1	3SE201080D	1 set of fuel lines D - 25.11.2024>>	3SE201080D 1 set of fuel lines D - 25.11.2024>> PR:9M0	$408.84	1	TO
	2	971201171AD	Securing clip	971201171AD Securing clip D=12+10+5	$52.40	1	TO
	3	971201171	Securing clip	971201171 Securing clip D=12+10+5	$52.40	6	TO
	4	971201171A	Securing clip	971201171A Securing clip D=12+10+5	$52.40	3	TO
	5	971201171T	Securing clip	971201171T Securing clip D=12+10+5	$52.40	2	TO
	971 130 179 A		RETAINER FOR FUEL LINE	-
6 Retainer for fuel line - 1 PE Enquire 24 Retainer for fuel line - 1 PE Enquire
	7	95B611797	Clip	95B611797 Clip D=4,75-6,0 ,PR:9M9,9M1	$2.03	1	TO
	4B0 422 379		SPRING BAND CLAMP	from $3.12
7 Spring band clamp $3.12 1 TO 25 Spring band clamp $3.12 1 TO
	8	3SA201546A	Guard plate for fuel pipe	3SA201546A Guard plate for fuel pipe	$40.48	1	TO
	9	N90817302	rivetted cap nut	N90817302 rivetted cap nut M6/0,5-3	$1.27	1	TO
	10	N90168604	Speed nut	N90168604 Speed nut M6X23,4X16	$1.38	1	TO
	N 910 968 01		HEXAGON SOCKET FLAT HEAD BOLT	from $1.18
11 Hexagon socket flat head bolt $1.18 3 TO 19 Hexagon socket flat head bolt $1.18 1 TO
	12	975130296A	fuel pipe	975130296A fuel pipe feed	$212.75	1	TO
	12	971130296	fuel pipe	971130296 fuel pipe feed	$180.37	1	TO
	13	971130163A	Securing clip	971130163A Securing clip D=10+10	$2.10	1	TO
	WHT007730		SHOULDERED BOLT	from $2.57
14 shouldered bolt $2.57 1 TO 14 shouldered bolt $2.57 2 TO
	16	975133366	Breather line	975133366 Breather line	$111.79	1	TO
	16	3SA 133 366 A	Purge-air line	3SA 133 366 A Purge-air line	-	1	PE	Enquire
	16	971133366H	Breather line	971133366H Breather line	$196.07	1	TO
	17	971130170A	Securing clip	971130170A Securing clip D=12+10+10	$1.86	1	TO
	18	971130389	Securing clip	971130389 Securing clip D=12	$4.69	1	TO
	18	971 130 389 B	Retainer for fuel line	971 130 389 B Retainer for fuel line	-	1	PE	Enquire
