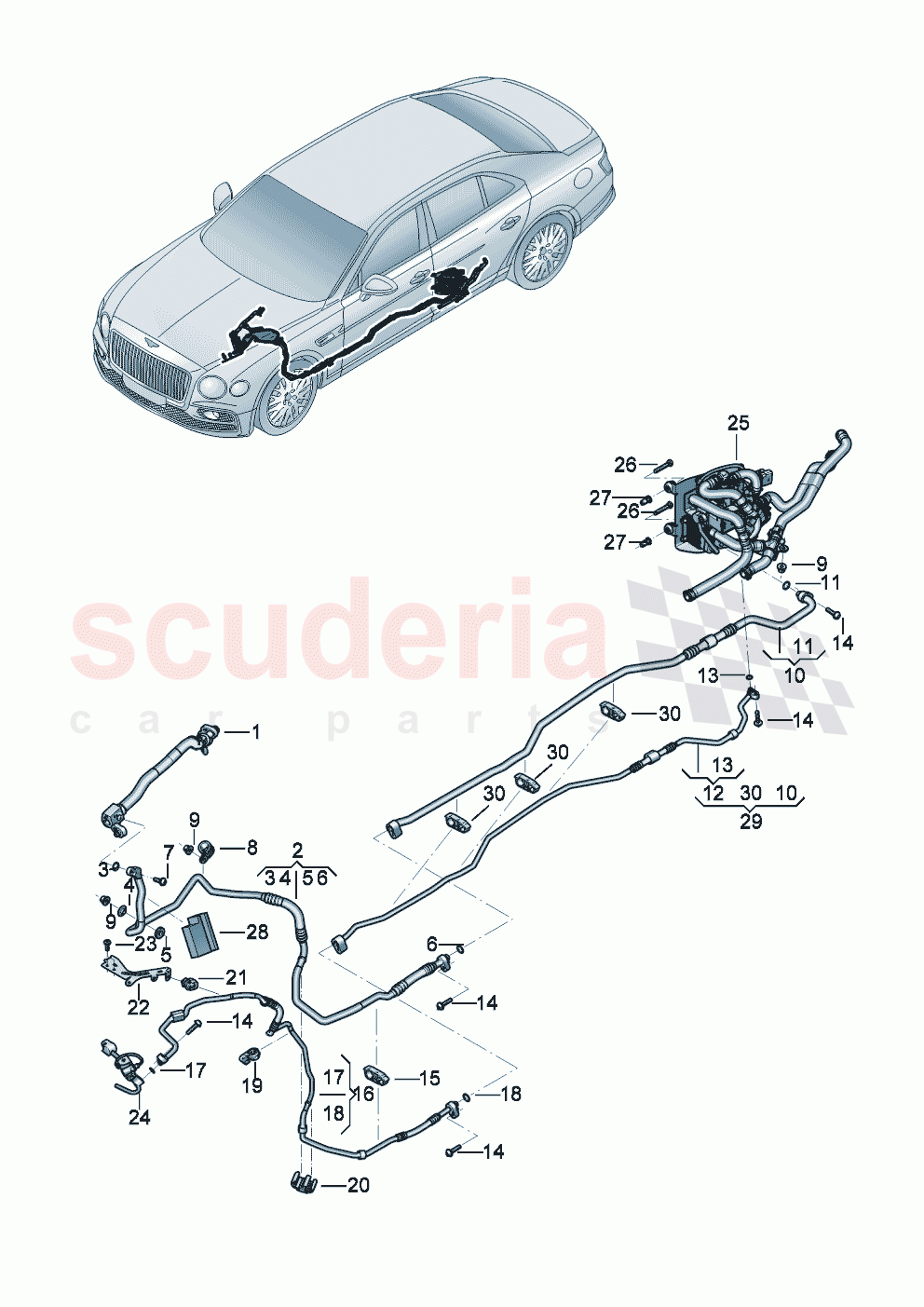

refrigerant circuit Cooling unit for high-voltage battery of Bentley Bentley New Flying Spur (2020-2024)

Bentley New Flying Spur (2020-2024) - refrigerant circuit Cooling unit for high-voltage battery

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3SE260349A	Refrigerant line suction line	$455.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	$5.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0422121	bush	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0422095	Grommet	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	$5.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91054001	Semi round bolt (combi) with hexagon socket head	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	N 020 626 7	Clamp	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	N 904 953 01	Hexagon nut	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE 260 709 A	Refrigerant line alternatively, you can use:	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0260749A	seal ring	$5.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3SE260705A	Refrigerant line alternatively, you can use:	$160.97	To Order

Photo	Part No	Description	Price (each)	Stock
	99970753141	O-ring	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	N91193003	Hex socket head bolt (combi)	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0 260 759 E	bracket for refrigerant pipe	$18.35	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA260336A	Refrigerant line D >> - 27.09.2023	$392.15	To Order
	3SA260336B	Refrigerant line	$392.15	To Order

Photo	Part No	Description	Price (each)	Stock
	99970753141	O-ring	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	$5.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	971260197	bracket for refrigerant pipe	$9.11	To Order

Photo	Part No	Description	Price (each)	Stock
	971260761	Bracket	$21.18	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0 260 759 H	Bracket	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	3SA971280C	bracket for refrigerant pipe	$19.12	To Order

Photo	Part No	Description	Price (each)	Stock
	N 104 514 08	Oval hexagon socket head bolt	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	N0102217	Hexagon bolt	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	N91200701	rivetted cap nut	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE 260 329 A	Damping element	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3SE260705C	Refrigerant line	$160.97	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0 260 759 E	bracket for refrigerant pipe	$18.35	To Order

Diagram Tap to enlarge

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
	2	3SE260349A	Refrigerant line suction line	3SE260349A Refrigerant line suction line left front	$455.46	1	TO
	4E0260749A		SEAL RING	from $5.29
3 seal ring IN STOCK $5.29 1 IN 6 seal ring IN STOCK $5.29 1 IN 11 seal ring IN STOCK $5.29 1 IN
	4	3D0422121	bush	3D0422121 bush	$5.32	1	TO
	5	3D0422095	Grommet	3D0422095 Grommet	$1.39	1	TO
	7	N91054001	Semi round bolt (combi) with hexagon socket head	N91054001 Semi round bolt (combi) with hexagon socket head M6X22	$0.98	1	TO
	8	N 020 626 7	Clamp	N 020 626 7 Clamp 16X15	$1.39	1	TO
	9	N 904 953 01	Hexagon nut	N 904 953 01 Hexagon nut 4.1	$1.18	3	TO
	10	3SE 260 709 A	Refrigerant line alternatively, you can use:	3SE 260 709 A Refrigerant line alternatively, you can use: lower centre 3SE 260 705 C	-	1	PE	Enquire
	12	3SE260705A	Refrigerant line alternatively, you can use:	3SE260705A Refrigerant line alternatively, you can use: lower centre 3SE 260 705 C	$160.97	1	TO
	99970753141		O-RING	from $3.28
13 O-ring $3.28 1 TO 17 O-ring $3.28 1 TO
	14	N91193003	Hex socket head bolt (combi)	N91193003 Hex socket head bolt (combi) M6X28	$0.79	5	TO
	4H0 260 759 E		BRACKET FOR REFRIGERANT PIPE	from $18.35
15 bracket for refrigerant pipe $18.35 4 TO 30 bracket for refrigerant pipe $18.35 3 TO
	16	3SA260336A	Refrigerant line D >> - 27.09.2023	3SA260336A Refrigerant line D >> - 27.09.2023 left front	$392.15	1	TO
	16	3SA260336B	Refrigerant line	3SA260336B Refrigerant line left front	$392.15	1	TO
	18	3D0260749C	seal ring IN STOCK	3D0260749C seal ring 9,5X2,5 IN STOCK	$5.34	1	IN
	19	971260197	bracket for refrigerant pipe	971260197 bracket for refrigerant pipe	$9.11	1	TO
	20	971260761	Bracket	971260761 Bracket	$21.18	1	TO
	21	8K0 260 759 H	Bracket	8K0 260 759 H Bracket D=10-12MM	$6.90	1	TO
	22	3SA971280C	bracket for refrigerant pipe	3SA971280C bracket for refrigerant pipe	$19.12	1	TO
	23	N 104 514 08	Oval hexagon socket head bolt	N 104 514 08 Oval hexagon socket head bolt M6X16	$1.18	2	TO
	26	N0102217	Hexagon bolt	N0102217 Hexagon bolt M6X35	$1.07	2	TO
	27	N91200701	rivetted cap nut	N91200701 rivetted cap nut M6/2,5-4,5	$1.27	2	TO
	28	3SE 260 329 A	Damping element	3SE 260 329 A Damping element	-	1	PE	Enquire
	29	3SE260705C	Refrigerant line	3SE260705C Refrigerant line centre left	$160.97	1	TO
