Name: Rear Seat Assembly (Coupe)
Rating: 4.3 (1 reviews)

Find Your Part

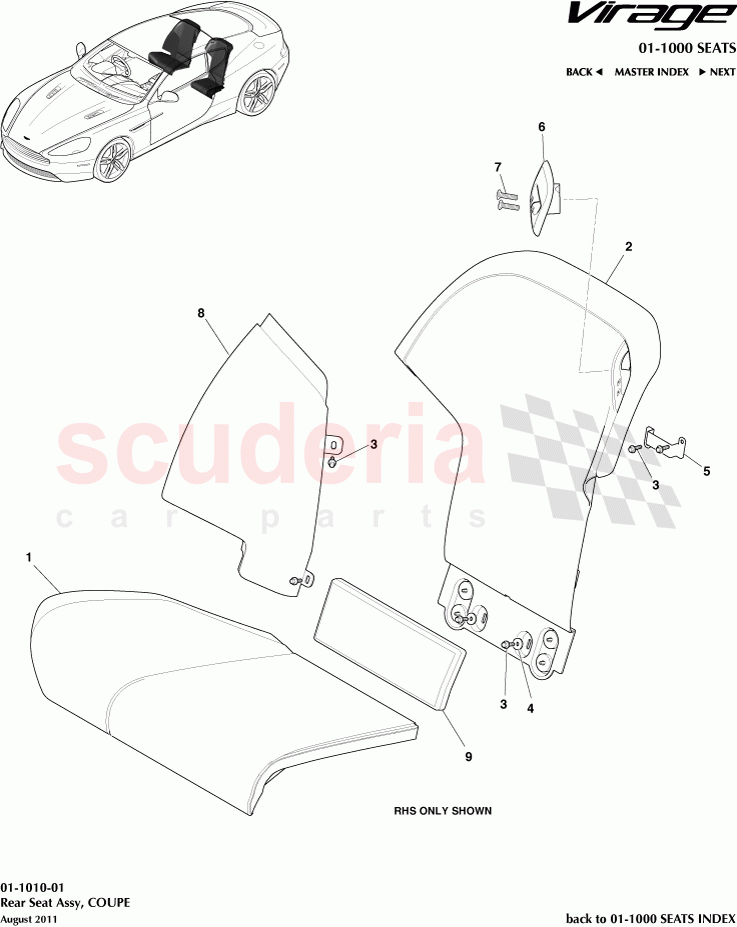

View the exploded parts diagram to find the part you are looking for

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

TO ORDER

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	703026	Screw, M5 x 16, Hex Flange Head	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697517-PK	WASHER-M6 LGE OD BLK PACK OF 20	$22.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43-41171-AB	Bracket, Squab Rear Fixing	$39.02	To Order

Photo	Part No	Description	Price (each)	Stock
	703076	Screw, M4 x 20, Flat Socket Countersunk	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3360594AA	Panel assy, bolster, rear seat, RH	Enquire	To Order
	9D3360595AA	Panel assy, bolster, rear seat, LH	Enquire	To Order

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Key	Add to Cart
1	9D3360080ABW	Cushion assy, rear seat, RH	9D3360080ABW Cushion assy, rear seat, RH	-	1	PE	Enquire
1	9D3360081ABW	Cushion assy, rear seat, LH	9D3360081ABW Cushion assy, rear seat, LH	-	1	PE	Enquire
2	9D3360032ABW	Back assy, rear seat, RH	9D3360032ABW Back assy, rear seat, RH	-	1	PE	Enquire
2	9D3360033ABW	Back assy, rear seat, LH	9D3360033ABW Back assy, rear seat, LH	-	1	PE	Enquire
3	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	$0.20	6	IN
4	697517-PK	WASHER-M6 LGE OD BLK PACK OF 20	697517-PK WASHER-M6 LGE OD BLK PACK OF 20	$22.35	2	TO
5	4G43-41171-AB	Bracket, Squab Rear Fixing	4G43-41171-AB Bracket, Squab Rear Fixing	$39.02	2	TO
6	4G43-611B90-AD	REAR SEATBELT BEZEL RH	4G43-611B90-AD REAR SEATBELT BEZEL RH	$155.16	1	TO
6	4G43-611B91-AD	REAR SEATBELT BEZEL LH	4G43-611B91-AD REAR SEATBELT BEZEL LH	$155.16	1	TO
7	703076	Screw, M4 x 20, Flat Socket Countersunk	703076 Screw, M4 x 20, Flat Socket Countersunk	$0.20	2	TO
8	9D3360594AA	Panel assy, bolster, rear seat, RH	9D3360594AA Panel assy, bolster, rear seat, RH	-	1	PE	Enquire
8	9D3360595AA	Panel assy, bolster, rear seat, LH	9D3360595AA Panel assy, bolster, rear seat, LH	-	1	PE	Enquire
9	9D3363846ACW	Lumbar pad assy, rear seat, RH	9D3363846ACW Lumbar pad assy, rear seat, RH	-	1	PE	Enquire
9	9D3363847ACW	Lumbar pad assy, rear seat, LH	9D3363847ACW Lumbar pad assy, rear seat, LH	-	1	PE	Enquire
