Rear Quarter Trim Panel, 2+2 (Volante)

Aston Martin Virage

Find Your Part

Aston Martin Virage - Rear Quarter Trim Panel, 2+2 (Volante)

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
TO ORDER
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G43L31012AEW Panel assy, body side trim, RHS (Includes Grille Assy) Enquire To Order
AD33-L31112-AAW PANEL BODY SIDE TR R RH $1,379.73 To Order
Photo Part No Description Price (each) Stock
6G43L31013AEW Panel assy, body side trim, LHS (Includes Grille Assy) Enquire To Order
AD33-L31113-AAW PANEL BODY SIDE TR REAR LH $1,268.25 To Order
Photo Part No Description Price (each) Stock
703026 Screw, M5 x 16, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
701581-PK FIRTREE-FLAT HEAD (PACK OF 20) $11.38 IN STOCK
Photo Part No Description Price (each) Stock
4G43-STC3710-BA Fir Tree, Key Hole $1.35 To Order
Photo Part No Description Price (each) Stock
701653 Spring Nut, U Type, 4.2 x 0.7-2 $0.27 IN STOCK
Photo Part No Description Price (each) Stock
703179 SCREW-M5x10 PAN HEAD CHROME FREE $0.24 IN STOCK
Photo Part No Description Price (each) Stock
702211 SCREW M5x8.0x0.80 PAN HEAD $0.10 IN STOCK
Photo Part No Description Price (each) Stock
4G43-LB605H20-ADW Frame and Finisher Assembly, C-Flap, RH $348.73 IN STOCK
4G43-LB605H21-ADW Frame and Finisher Assembly, C-Flap, LH $348.73 IN STOCK
Photo Part No Description Price (each) Stock
4G43-539A40-ABW Lid, Flap Finisher Top, RH $598.97 To Order
4G43-539A41-ABW Lid, Flap Finisher Top, LH $569.46 To Order
Photo Part No Description Price (each) Stock
4G43-L24858-AB Bezel Assy, Seat Belt B Post Upper, RH $239.10 To Order
Photo Part No Description Price (each) Stock
4G43-L24859-AB Bezel Assy, Seat Belt B Post Upper, LH $386.24 To Order
Photo Part No Description Price (each) Stock
4G43-V850063-AA Screw, Cap Hd $0.59 To Order
Photo Part No Description Price (each) Stock
4G43-290E16-AB Plate, Light to Quarter Panel $13.22 To Order
Photo Part No Description Price (each) Stock
4G43L312A94AC Grille assy, speaker, RHS Enquire To Order
9G43-L312A94-BD Speaker Grille, Rear Quarter, RH $729.67 To Order
Photo Part No Description Price (each) Stock
4G43L312A95AC Grille assy, speaker, LHS Enquire To Order
9G43-L312A95-BD Speaker Grille, Rear Quarter, LH $729.67 To Order
Photo Part No Description Price (each) Stock
4G43-L53296-AA Link Rod, Flap Top RH $41.85 IN STOCK
4G43-17431-AA SPRING $1.65 IN STOCK
Photo Part No Description Price (each) Stock
4G43-L53297-AA Link Rod, Flap Top LH $23.69 IN STOCK
Photo Part No Description Price (each) Stock
4G43-338013-AA PLUG BLANKING (M6) $0.68 IN STOCK
Photo Part No Description Price (each) Stock
4G43-103021-AB Fix, Push On $1.03 IN STOCK
Photo Part No Description Price (each) Stock
4G43-1861-AA CLIP $0.29 IN STOCK

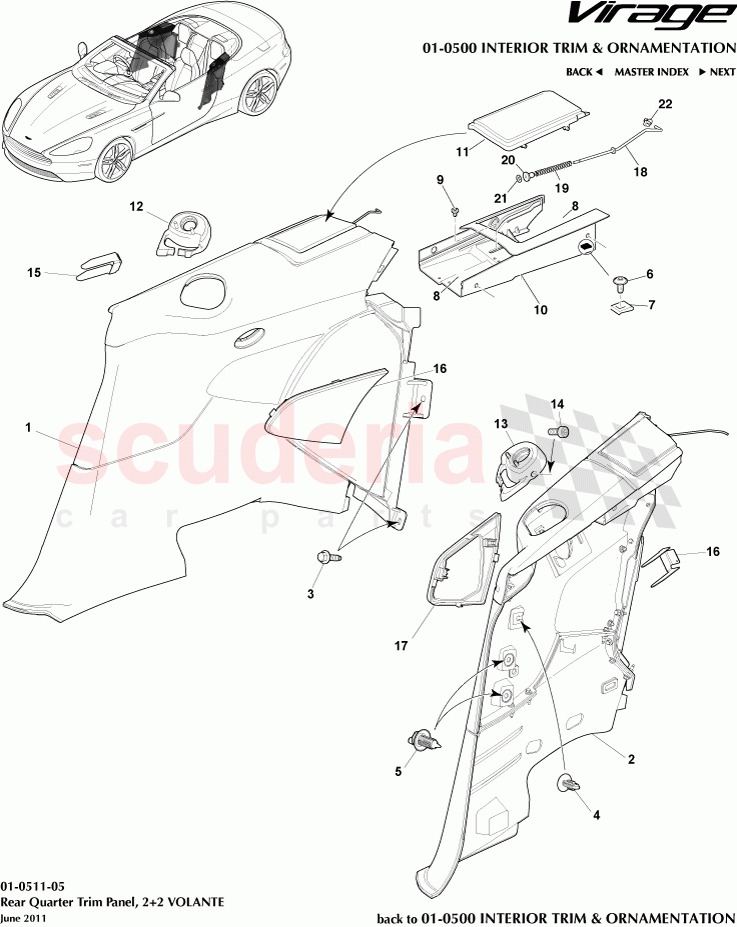

Rear Quarter Trim Panel, 2+2 (Volante) of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G43L31012AEW
Panel assy, body side trim, RHS (Includes Grille Assy)
ALPINE 		- 1
PE
 Enquire
1 AD33-L31112-AAW
PANEL BODY SIDE TR R RH
B&O 		$1,379.73 1
TO
2 6G43L31013AEW
Panel assy, body side trim, LHS (Includes Grille Assy)
ALPINE 		- 1
PE
 Enquire
2 AD33-L31113-AAW
PANEL BODY SIDE TR REAR LH
B&O 		$1,268.25 1
TO
3 703026
Screw, M5 x 16, Hex Flange Head
2 per panel
IN STOCK 		$0.20 4
IN
4 701581-PK
FIRTREE-FLAT HEAD (PACK OF 20)
1 per panel
IN STOCK 		$11.38 2
IN
5 4G43-STC3710-BA
Fir Tree, Key Hole
2 per panel 		$1.35 4
TO
7 701653
Spring Nut, U Type, 4.2 x 0.7-2
1 per frame
IN STOCK 		$0.27 2
IN
8 703179
SCREW-M5x10 PAN HEAD CHROME FREE
2 per frame
IN STOCK 		$0.24 4
IN
9 702211
SCREW M5x8.0x0.80 PAN HEAD
1 per frame
IN STOCK 		$0.10 2
IN
10 4G43-LB605H20-ADW
Frame and Finisher Assembly, C-Flap, RH
IN STOCK 		$348.73 1
IN
10 4G43-LB605H21-ADW
Frame and Finisher Assembly, C-Flap, LH
IN STOCK 		$348.73 1
IN
11 4G43-539A40-ABW
Lid, Flap Finisher Top, RH 		$598.97 1
TO
11 4G43-539A41-ABW
Lid, Flap Finisher Top, LH 		$569.46 1
TO
12 4G43-L24858-AB
Bezel Assy, Seat Belt B Post Upper, RH 		$239.10 1
TO
13 4G43-L24859-AB
Bezel Assy, Seat Belt B Post Upper, LH 		$386.24 1
TO
14 4G43-V850063-AA
Screw, Cap Hd
1 per bezel 		$0.59 2
TO
15 4G43-290E16-AB
Plate, Light to Quarter Panel
1 per panel 		$13.22 2
TO
16 4G43L312A94AC
Grille assy, speaker, RHS
ALPINE 		- 1
PE
 Enquire
16 9G43-L312A94-BD
Speaker Grille, Rear Quarter, RH
B&O 		$729.67 1
TO
17 4G43L312A95AC
Grille assy, speaker, LHS
ALPINE 		- 1
PE
 Enquire
17 9G43-L312A95-BD
Speaker Grille, Rear Quarter, LH
B&O 		$729.67 1
TO
18 4G43-L53296-AA
Link Rod, Flap Top RH
IN STOCK 		$41.85 1
IN
18 4G43-17431-AA
SPRING
IN STOCK 		$1.65 1
IN
19 4G43-L53297-AA
Link Rod, Flap Top LH
1 per Link
IN STOCK 		$23.69 2
IN
20 4G43-338013-AA
PLUG BLANKING (M6)
1 per Link
IN STOCK 		$0.68 2
IN
21 4G43-103021-AB
Fix, Push On
1 per Link
IN STOCK 		$1.03 2
IN
22 4G43-1861-AA
CLIP
1 per Link
IN STOCK 		$0.29 2
IN
